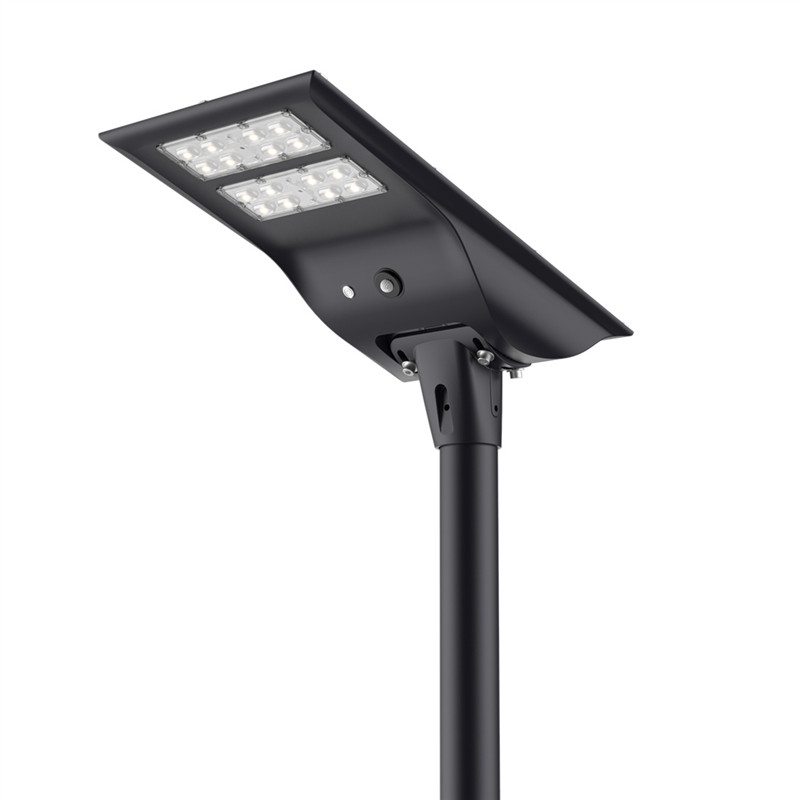

[caption id="attachment_3501" align="alignnone" width="800"] 30W all in one solar street light

30W solar street light all in one, integrated solar panel, large capacity LiFePo4 battery, controller and LED modules, strong lumen, long lifespan and top quality.[/caption][caption id="attachment_3502" align="alignnone" width="800"] 60W all in one solar street light

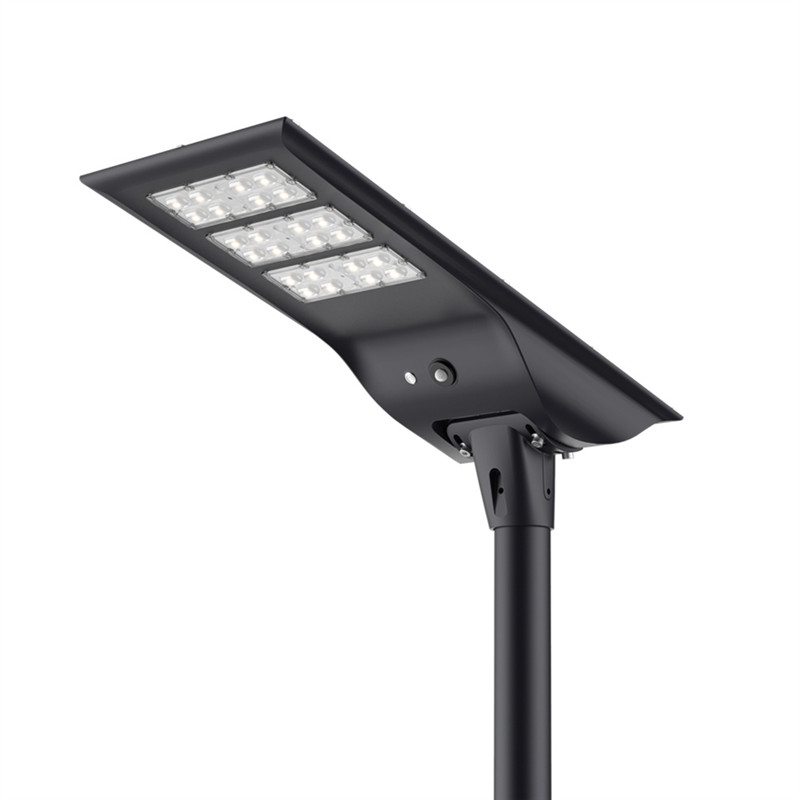

60W integrated all in one solar street light, high lumen Philips Lumileds chips, Mono-crystalline solar panel, built-in large capacity LiFePo4 battery, controller and LED modules, all in one design[/caption][caption id="attachment_3492" align="alignnone" width="800"]

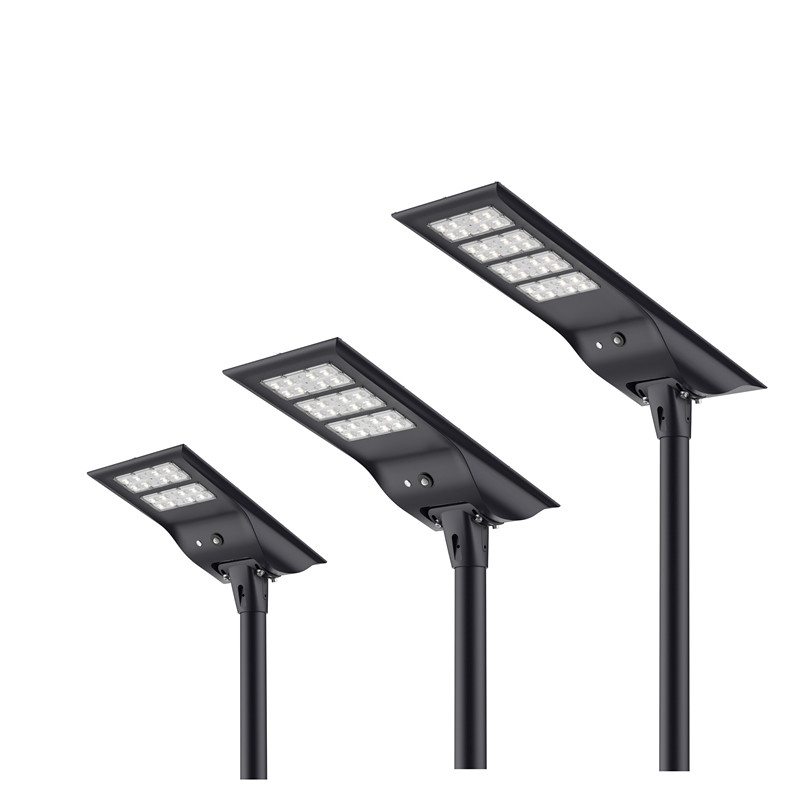

integrated all in one solar street light, with built-in large capacity LiFePo4 battery, high efficiency mono-crystalline solar panel and Bridgelux high lumen 3030 chips, PWM/MPPT controller, all in one design[/caption]

30W 60W 90W All in One Solar LED Street Light with LiFePo4 battery-SSL0813

Item Name: 30W, 60W, 90W all in one solar LED street light

Model No.: CL-SSL0813 Series

Luminaire efficiency: >160lm/w

Solar panel: Mono-crystalline, 6V or 18V optional

Battery: New LiFePo4

LED chips: Bridgelux/Lumileds/Sanan 3030/5050/2835

IP rating: IP65 water proof

Color Temperature: 3000-6500K optional

Beam Agle: 70*145 degree, bat wing type

Color Rending Index: Ra>70

IP rating: IP65

Lifespan: over 50,000hours

Warranty: 3 Years

Solar LED Street Light

Description

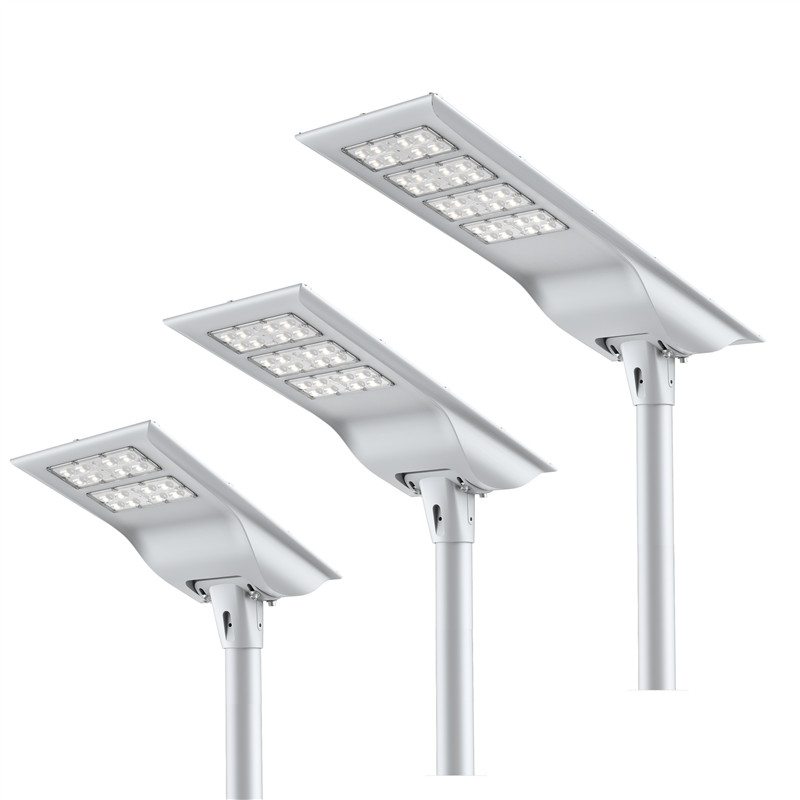

30W 60W 90W all in one solar LED street light

Klover SSL0813 series all in one solar LED street light integrated high lumen LED chips from Bridgelux/Lumileds/SanAn, LM-80 listed, 180-210lm/w light source, mono-crystalline solar panel and convert efficiency over 22.3%, built-in large capacity LiFePo4 battery, PWM controller with PIR or Microwave sensor, this solar LED street light all in one can completely replace AC LED street light to save city power.

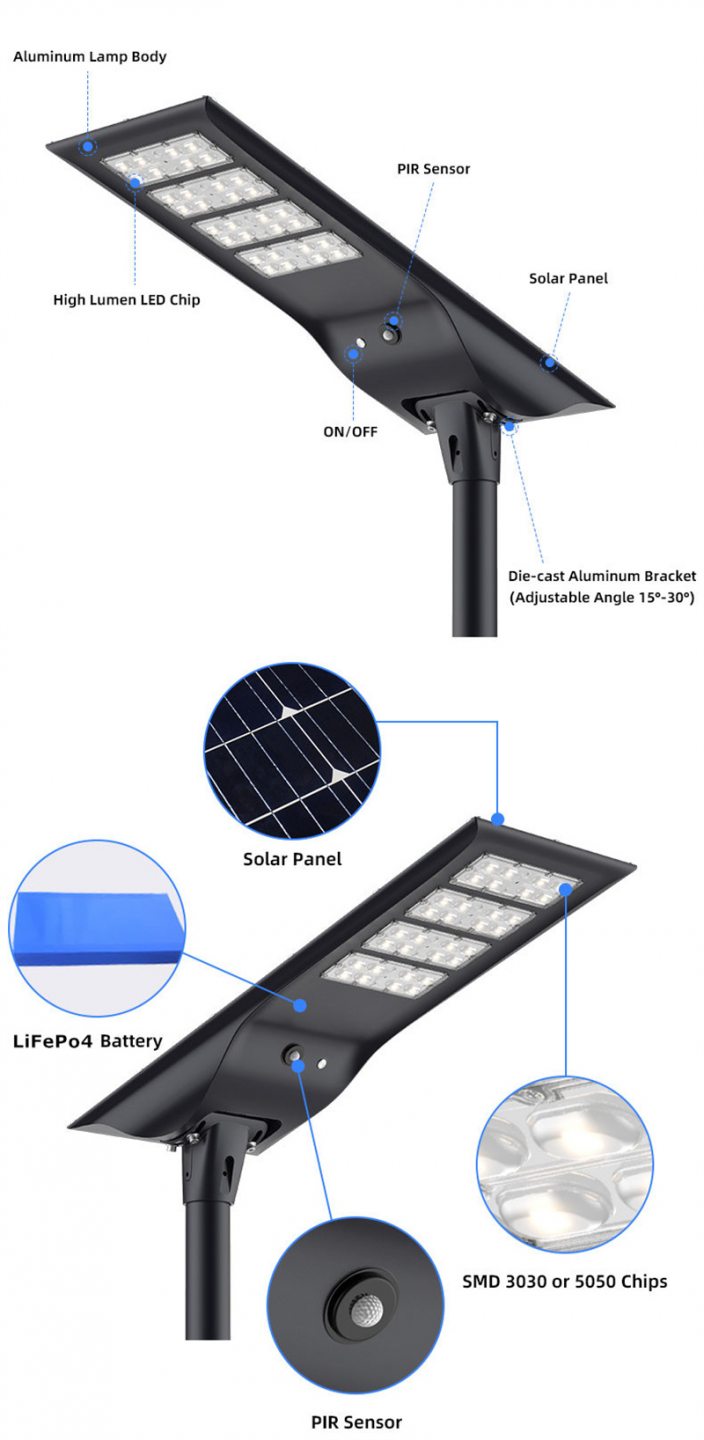

The key features for 30/60/90W all in one solar LED street light

1. The whole lamp body is made from die-casting aluminum alloy, strong heavy body, never rust;

2. The spigot can be adjusted 0-90 degree, head to the right angle to maximumly receive sun-power;

3. Brand new A1 class LiFePo4 battery, not recycled type, over 2000 cycles, lifespan over 6 years;

4. Second design optical lens, bat wing light distribution, Type II and Type III optional;

5. 180-210lm/w Philips Lumileds/Bridgelux/San’an 2835/3030/5050 chips optional, LM-80 listed, annual light decline <2%, long lifespan. with high lumen output, over 160-170lm/w for finished solar street light;

6. Solar panel can be opened freely, not glue type, in case to change battery and controller in the future;

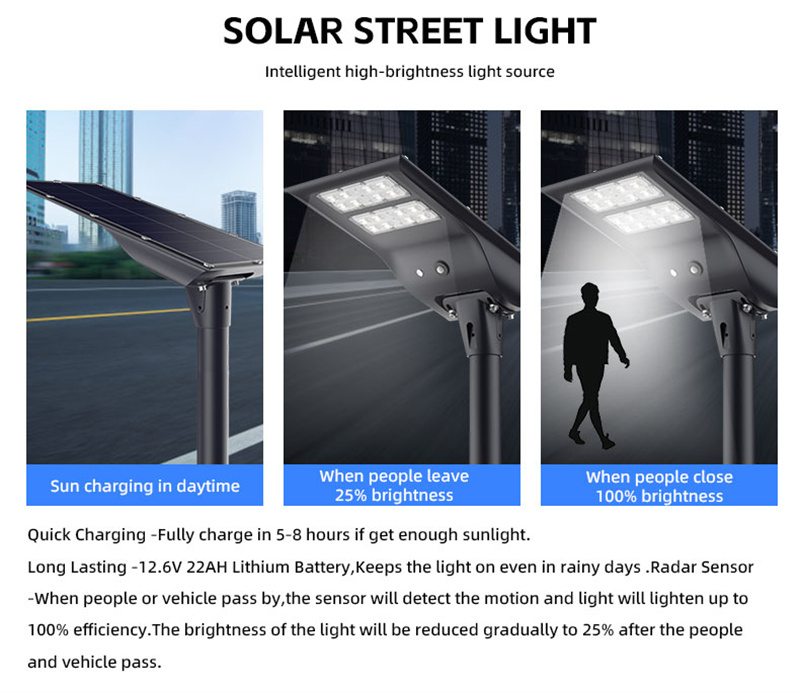

7. Three types of working optional: Microwave sensor, PIR sensor, dimming; all in one solar street light always has sensor to save battery to enlong lighting time. When sensor activated, will turn to 100% brightness working, and turn back to 30% running in regular condition.

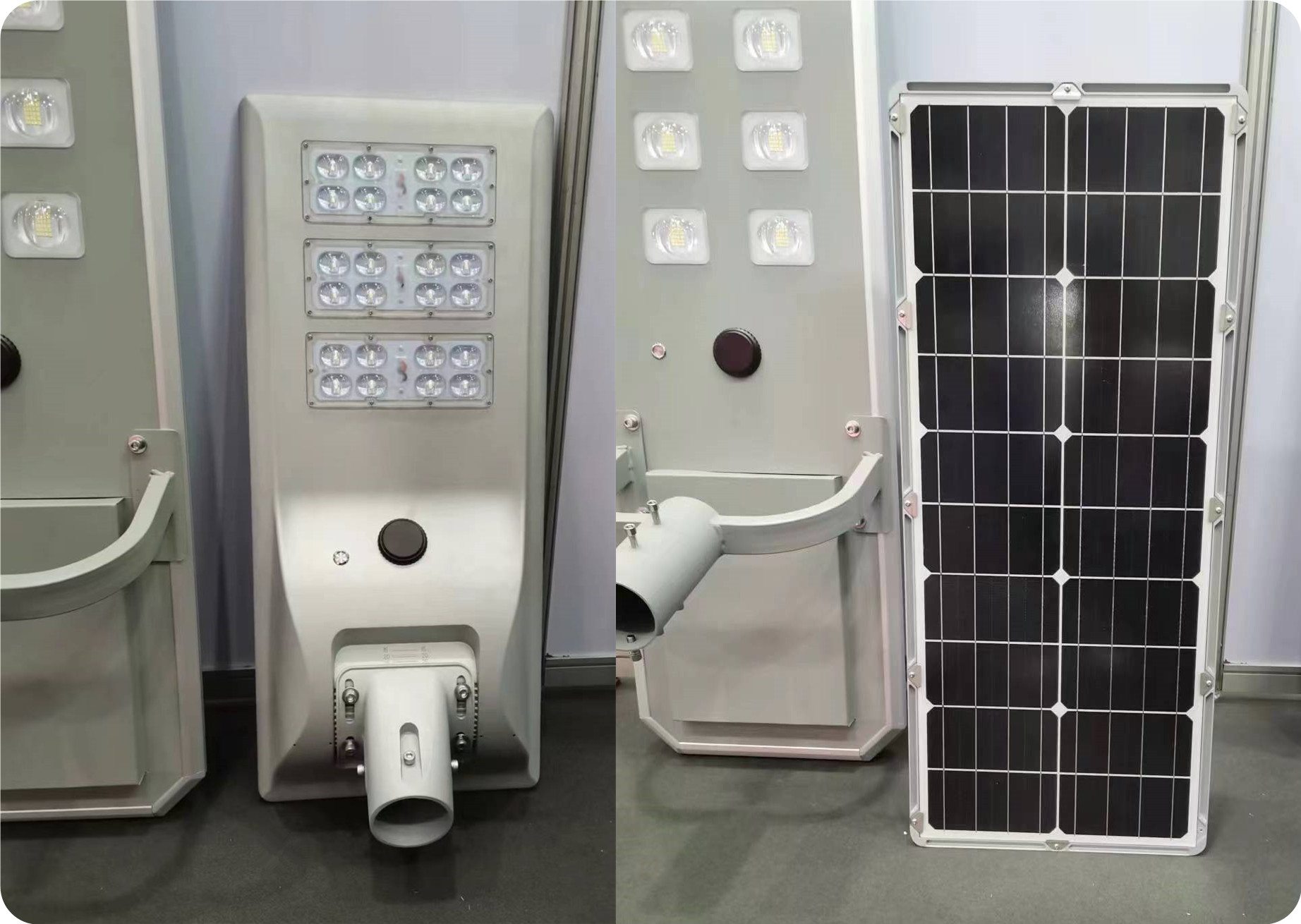

60W solar LED street light all in one design, integrated solar panel, controller, solar panel, battery, inverter and LED modules, high lumen, can completely replace AC street light.

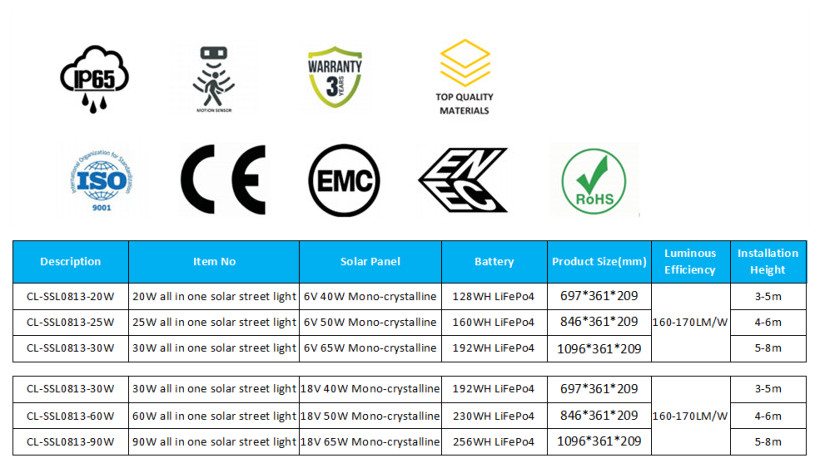

Specification for 3.2V LiFePo4 battery with 6V Mono-crystalline solar panel

Model	20W All in One Solar Street Light	25W All in One Solar Street Light	30W All in One Solar Street Light
LED QTY	16pcs Bridgelux 5050, 210lm/w	24pcs Bridgelux 5050, 210lm/w	32pcs Bridgelux 5050, 210lm/w
CCT	3000-6500K optional
Battery	128WH, LiFePo4	160WH, LiFePo4	192WH, LiFePo4
Solar Panel	6V 40W mono-crystalline	6V 50W mono-crystalline	6V 65W, monocrystalline
Install Height	3-4 meters	4-6 meters	5-8 meters
Waterproof	IP 65
Lighting Time	4-5 nights
Working Temp.	-25℃ to 65℃
Product Size(mm)	679361209	846361209	1096361209
Material	Die-casting Aluminum alloy+PMMA

Specification for 12.8V LiFePo4 battery with 18V Mono-crystalline solar panel

Model	30W All in One Solar Street Light	60W All in One Solar Street Light	90W All in One Solar Street Light
LED QTY	100pcs Lumileds 2835, 180lm/w	150pcs Lumileds 2835, 180lm/w	200pcs Lumileds 2835, 180lm/w
CCT	3000-6500K optional, Ra>70
Battery	192WH, LiFePo4	230.4WH, LiFePo4	256WH, LiFePo4
Solar Panel	18V 40W mono-crystalline	18V 50W mono-crystalline	18V 65W, monocrystalline
Install Height	3-4 meters	4-6 meters	5-8 meters
Waterproof	IP 65
Lighting Time	4-5 nights
Working Temp.	-25℃ to 65℃
Product Size	679361209mm	846361209mm	1096361209mm
Housing Material	Aluminum alloy+PMMA

60W all in one solar LED street light, integrated design, the whole lamp body is die-casting aluminum alloy, with adjustable spigot, 0-90 degree adjustable. Can be equipped with PIR sensor or microwave sensor, or dimming type, more power saving to enlong lighting time.
