Item Name: 150W UFO LED High Bay Light
Model No.: CL-UFO001B150-1
Total Lumen: 18,000lm
Product Size: Φ340*180 mm
LED Driver: Meanwell or Moso
LED chips: 210pcs SMD Philips or Osram 3030
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95
THD: <15%
Color Temperature: 2700-6500K optional
Color Rending Index: Ra>80
IP rating: IP65 can be installed outdoor
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 years

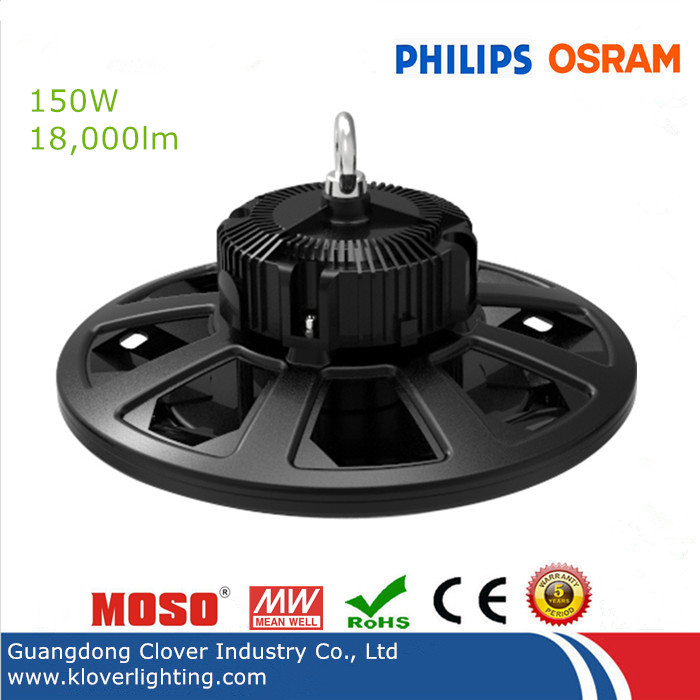

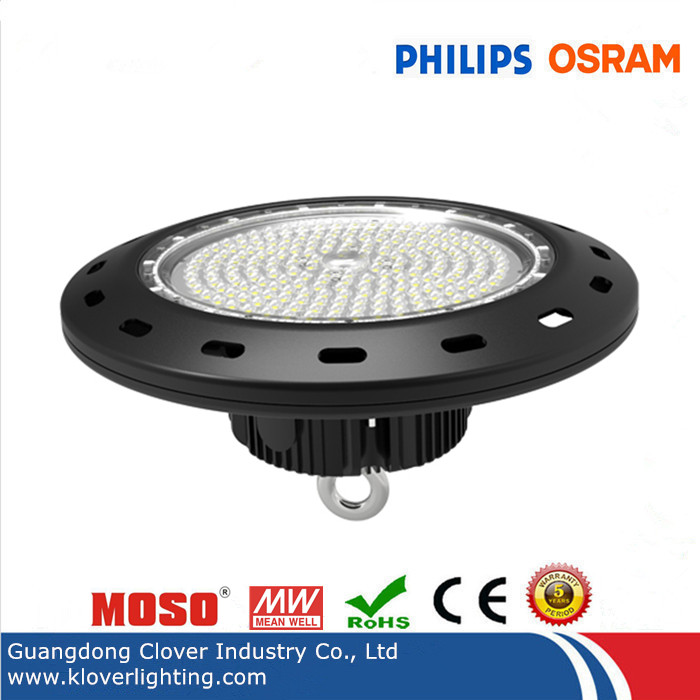

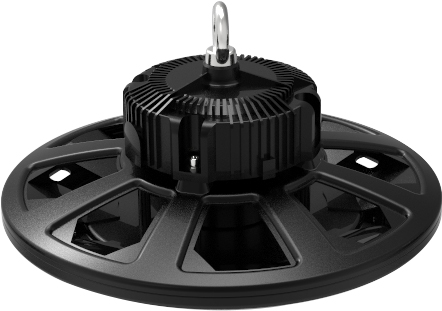

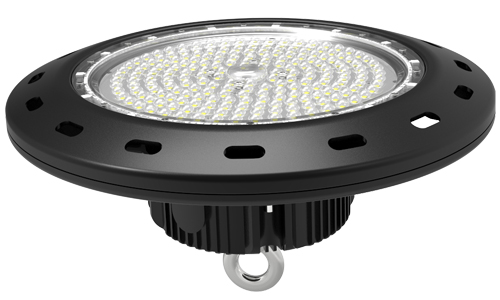

Item Name: Commercial 150W UFO LED high bay lighting
Item Number: CL-UFO001B150-1
Features for commercial 150W UFO LED High Bay Lighting

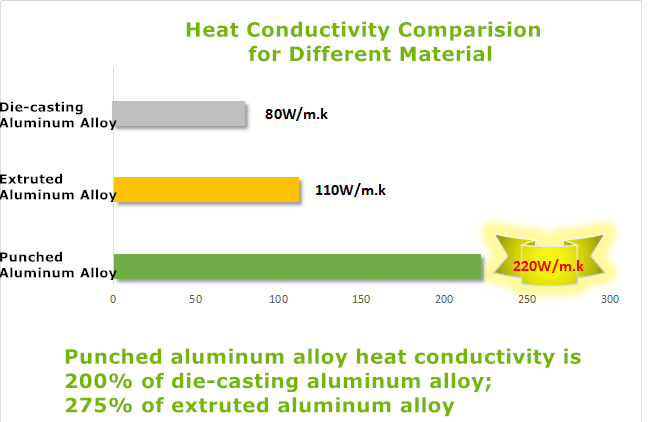

1. Punched/stamped aluminum alloy for excellent heat dissipation, to extend LED chips lifespan.
2. Ultra thin design, light weight
3. IP65 rated, can be used indoor and outdoor with lightning protection.
4. 60, 90, 120 degree different beam angle available
5. Adjustable bracket available for different mounting purpose
6. Meanwell or Moso LED driver, Philips Lumileds or Osram 3030 chips, extra long lifespan.
7. 5 years warranty.

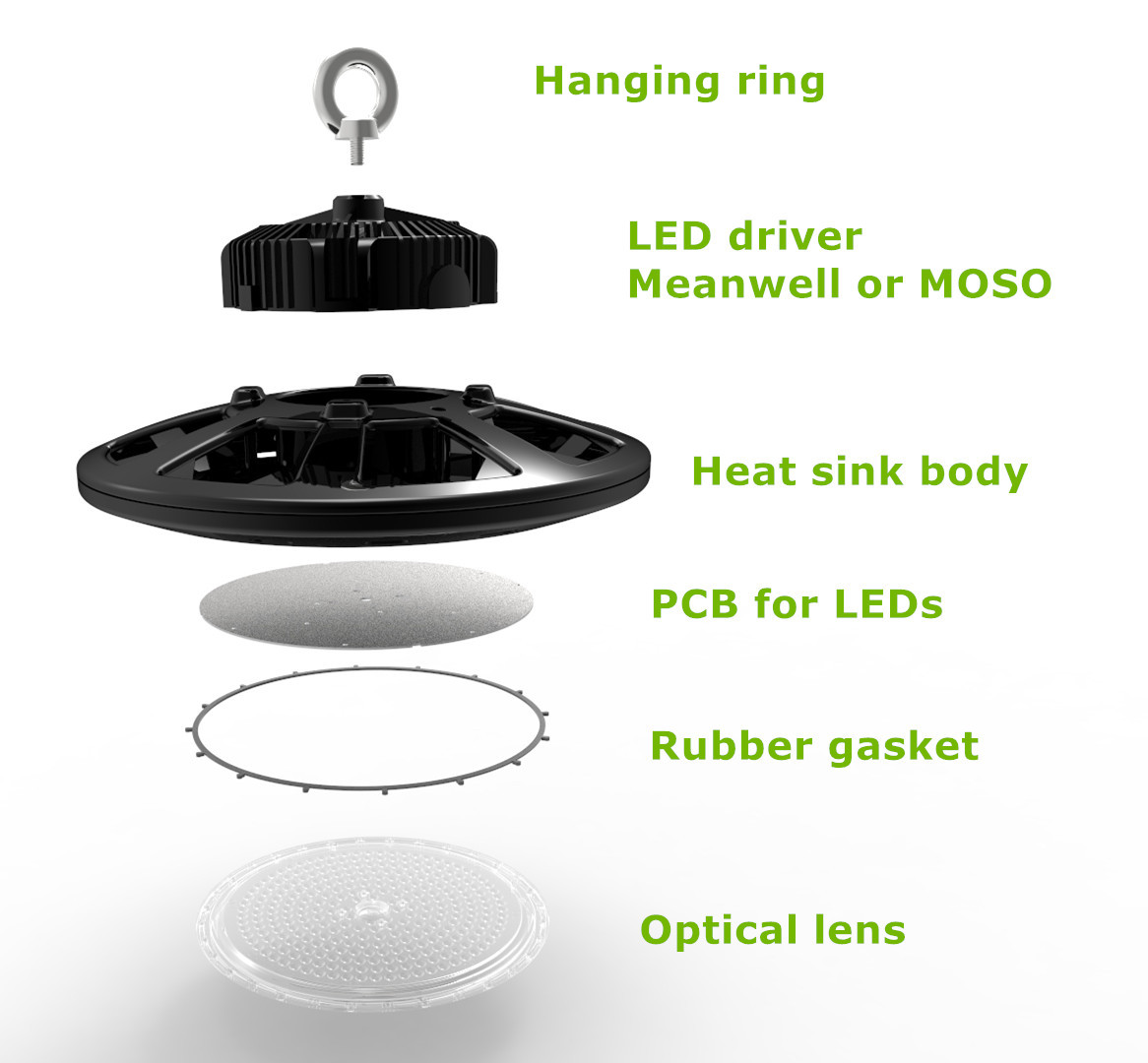

Product breakdown for commercial150W UFO LED high bay lighting

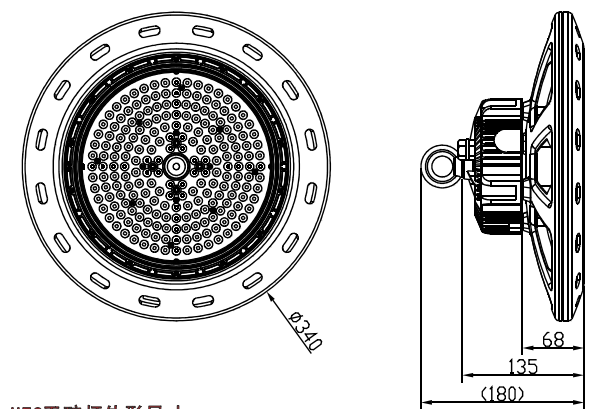

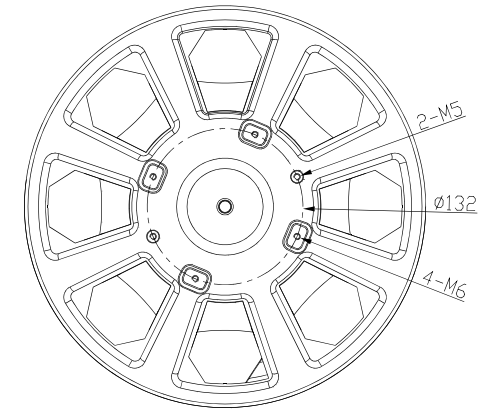

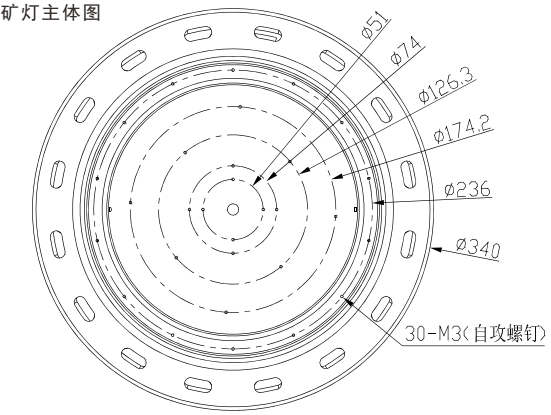

Product size for 001 commercial 150W UFO LED High Bay Lighting
Optical features for 001 commercial150W UFO LED High Bay Lighting

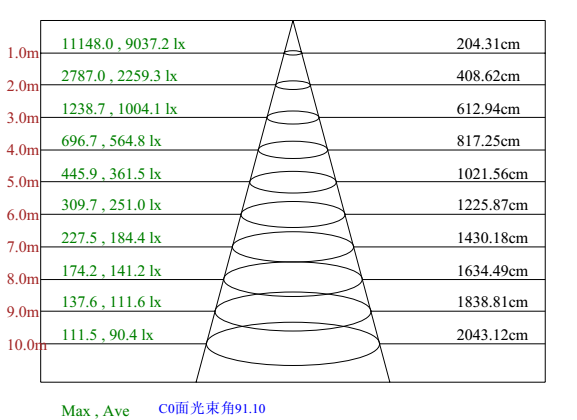

This is light distribution for 150W UFO LED high bay light in 90 degree beam angle.
IES file and free Dialux simulation available for your lighting projects.

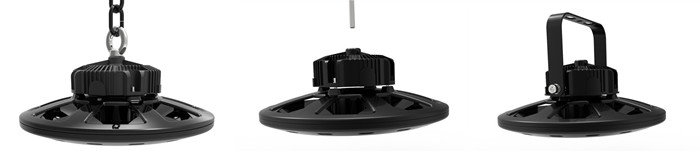

Different installtion way for 001 series commercial UFO LED High Bay Lighting
Other 001 series commerical UFO LED high bay lighting,
100W, 150W, 200W available.
| Item Name | 100W, 150W, 200W UFO LED High Bay Light | ||
| Model No. | CL-UFO001A100-1 | CL-UFO001B150-1 | CL-UFO001C200-1 |
| Power | 100W | 150W | 200W |
| Total Lumen | 12,000lm | 18,000lm | 24,000lm |
| Product size(mm) | Φ290*170 | Φ340*180 | Φ400*194 |
| Input voltage | AC85-265V 50/60HZ | ||
| Power Factor | > 0.95 | ||
| THD | <15% | ||
| Lightning protection | 6KV or 10KV optional | ||
| CCT | 3000-6500K | ||
| CRI | >75 | ||
| Luminare efficiency | >120lm/w; 150lm/w optional | ||
| IP rating | IP65 | ||
| LED driver | Meanwell/MOSO | ||
| LED chips | Philips Lumileds Luxeon/Osram 3030 | ||
| LED Qty | 133pcs | 210pcs | 280pcs |
| Warranty | 5 Years | ||
