Description

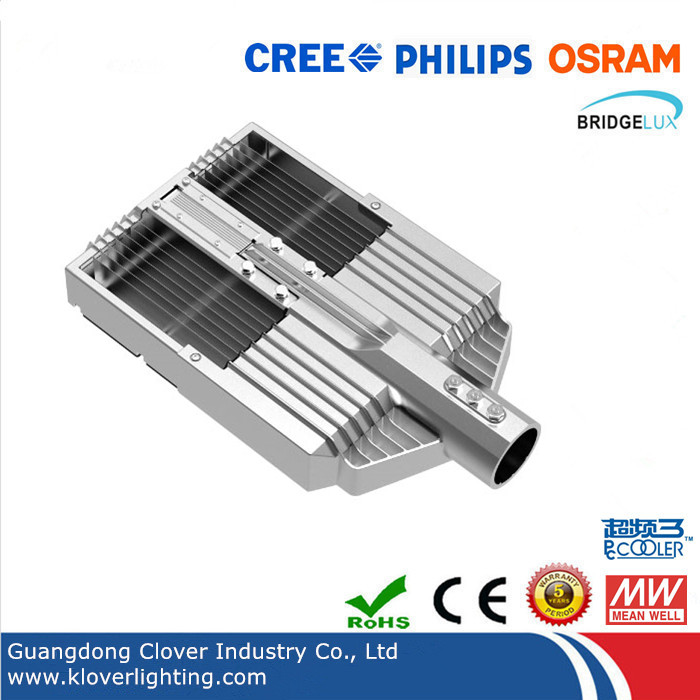

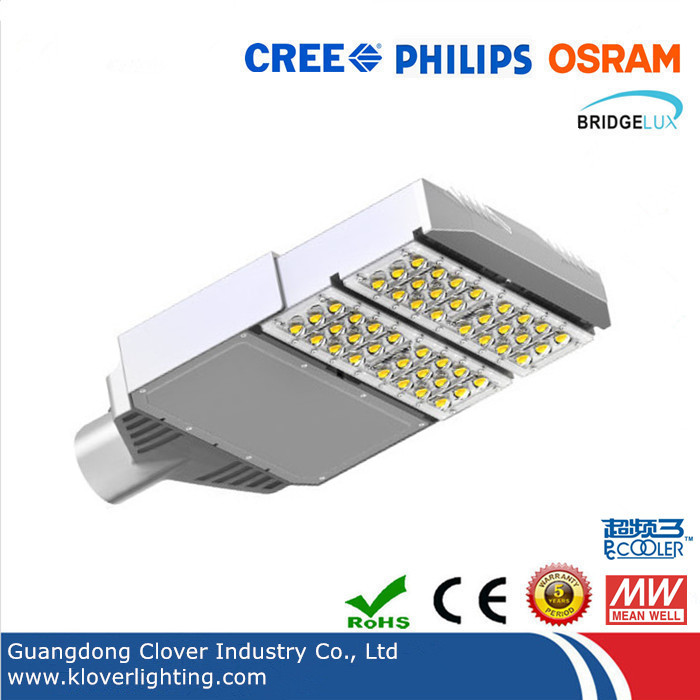

Product name: Osram/Philips/Bridgelux LED chip Meanwell driver 80-100W LED street light

Specifictions of 80-100W CREE LED street light

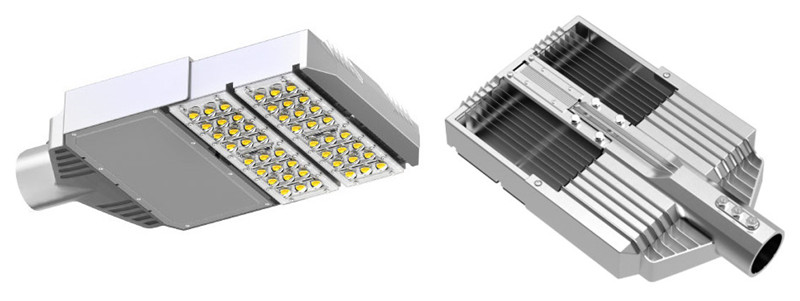

Product features of 80/100W LED street light CL-ST002 series

• All aluminum design for the whole lamp, excellent heat dissipation ability, up to 110W/m.k, reduce LED decline, and largely en-long LED street light lifespan.
• Dust proof, water proof IP65 design for outdoor application.
• Independent LED driver box design, better heat dissipation for LED street light driver, to enlong lifespan.
• Oxidation and stoving varnish treatment, suitable for coastal countries or areas, it is anti-aging and UV resistant.
• 2^nd optical design, light more evenly distributed, allow at least 90% usage of of light source.

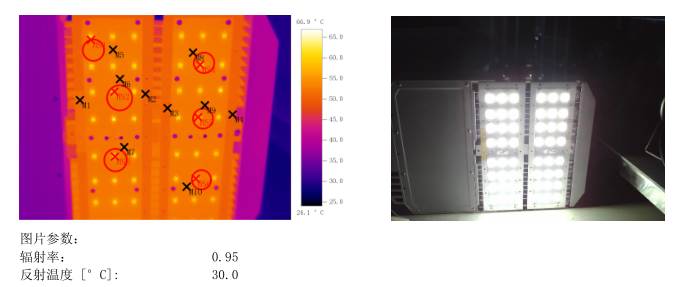

Temperature rise testing based on 24PCS CREE XTE per module

1. The environment temperature is 30 degree.
2. After 4 hours lighting, the highest temperature is 60.7 degree.
3. The temperature rise is 30.7 degree. With average light decline about 1% per year.

Main components:

1. Whole aluminum design heat sink
2. Philips or Osram 3030 chips, Cree and Bridgelux chips available.
3. Up to 150lm/w, to use 130W high lumen street light to replace 200W normal 100lm/w LED street light.
4. Meanwell or MOSO driver optional.
5. UL,TUV,CE listed power cable.

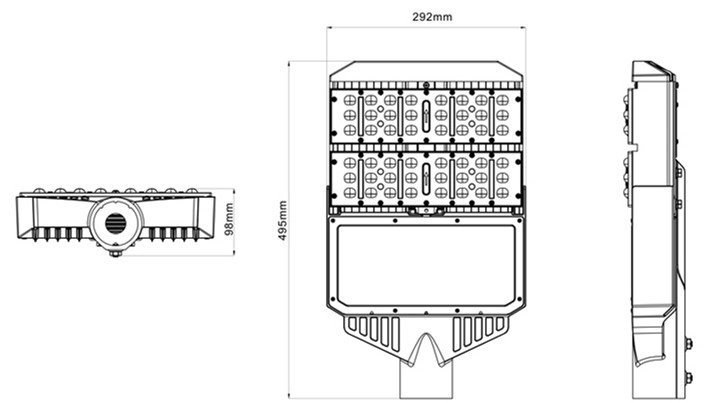

Product size

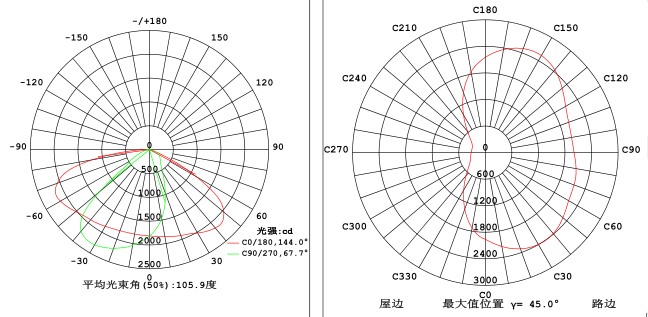

The light distribution curve for this LED street light with Bridgelux chips

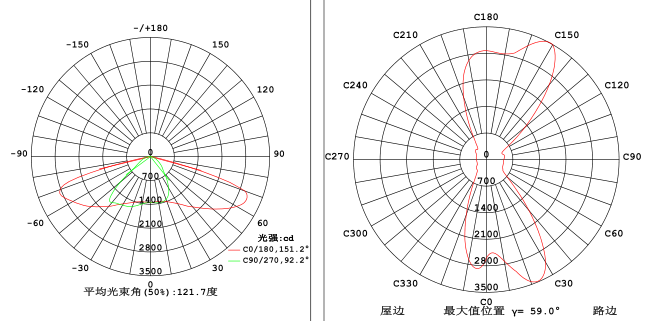

The light distribution for LED street light with CREE XTE LED chips

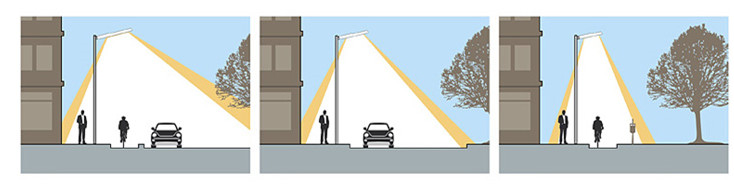

Applications:

Main street light, express way, metropolises lighting, Bridge lighting, sidewalk or pavement lighting, square, school, residential area, industrial area., etc

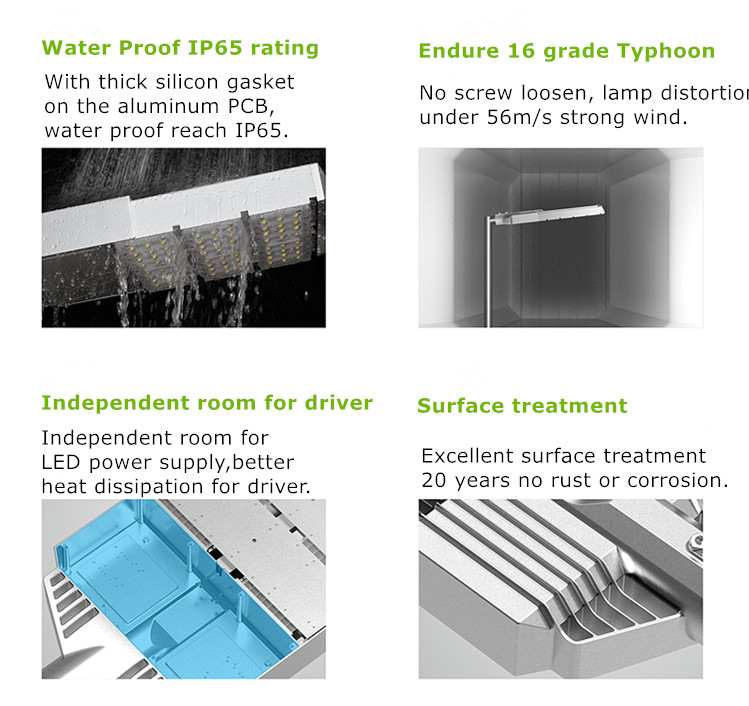

Key features

Ultra thin design, air channel with 3D air ventilation for excellent heat dissipation, the aluminum plate is 0.5cm thickness that contact aluminum PCB. Excellent heat dissipation ability to solve the LED light decline problem.

Optimized heat sink design, IP65 rating, at the same time dust and birds droppings will not leave on heat sink after rainy.

Simplicity design, compact structure, optical LED lens allow high light usage, make light more evenly distributed, the light transmission rate over 90%;

Rubber gasket between the aluminum heat sink and PC lens ensure at least IP65 water proof.

Oxidation and stoving varnish treatment, making a protective layer on the lamp body, can be applied in coastal area, anti-corrosion.

Independent driver box design, driver box made from high purity aluminum alloy. LED lights heat will not influence LED driver, to en-long LED driver lifespan.

Endure 16 level hurricane without losing its shape/deformation, loosen or fall off.
