China 0-10V dimming 100W 120W UFO LED high bay light for warehouse, factory & parking lot

Home LED High Bay Lights China 0-10V dimming 100W 120W UFO LED high bay light for warehouse, factory & parking lot

China 0-10V dimming 100W 120W UFO LED high bay light for warehouse, factory & parking lot

Item Name: 0-10V dimming UFO high bay light for warehouse, factory and parking lot lighting

Model No.: CL-HB0617-100W

Total Lumen: 14,400lm

Product Size: Φ260*189mm

LED Driver: Meanwell or Moso

LED chips: Philips Lumileds 3030/Bridgelux 3030

Input voltage: 220-240VAC/100-305VAC 50/60HZ

Power Factor: >0.95    THD: <15%

IP rating: IP65 water proof

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

IP rating: IP65 can be installed outdoor

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

LED High Bay Lights

Description

China 0-10V dimming 100W UFO LED high bay light for warehouse, factory & parking lot

Key features:

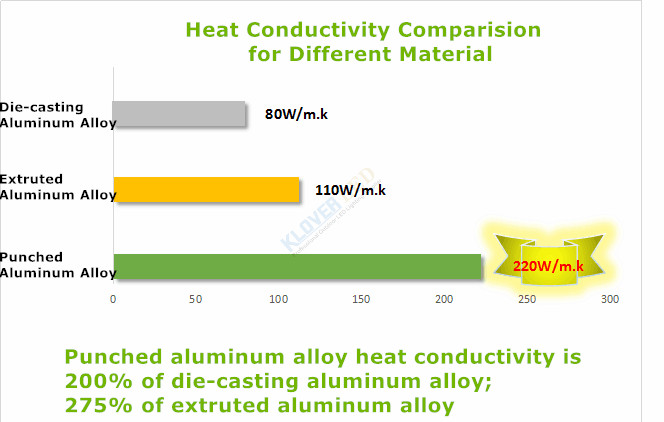

1.  Punched high purity aluminum, thermal conductivity reachs 220W/m.K, which is double of extruted aluminum alloy, three times better than die-casting aluminum alloy. Can largely reduce LED chips temperature and reduce light decline, enlong lifespan.

2.  Top famous brand materials like LM-80 listed Philips Lumileds 3030/2835, Meanwell, Moso, Philips, Sosen, LiFud drivers to guarantee top quality, more safety, long service time.

3.  0-10V dimming available.

4.  High lumen output, use high lumen Bridgelux 3030 chips, reaches 150lm/w.

5.  60/90/120 degree beam angle available.

6.  Hanging hook mounted or 0-180 degree adjustable bracket available.

7.  IP65, IK08 design, can be used for outdoor lighting.

8.  5 years warranty.

Specifications:

Item Name New design 120W UFO LED high bay light
Model No. CL-HB0617-100W
Power 100W or 120W
Total Lumen 14,400lm
Product Size(mm) Φ260*177.5
LED Qty 196pcs
LED Driver Meanwell HBG/Philips/Sosen/MOSO/LiFud optional
LED Chips Philips Lumileds Luxeon 2D 3030/Osram 3030
Input Voltage AC85-265V  50/60HZ
Power Factor > 0.95
THD <15%
Lightning Protection 4KV
CCT 3000-6500K available
CRI >75
Luminare Efficiency >120lm/w; 150lm/w optional
IP Rating IP65
Warranty 5 Years
China 0-10V dimming 100W UFO LED high bay light for warehouse, factory & parking lot

China 0-10V dimming 100W UFO LED high bay light for warehouse, factory & parking lot

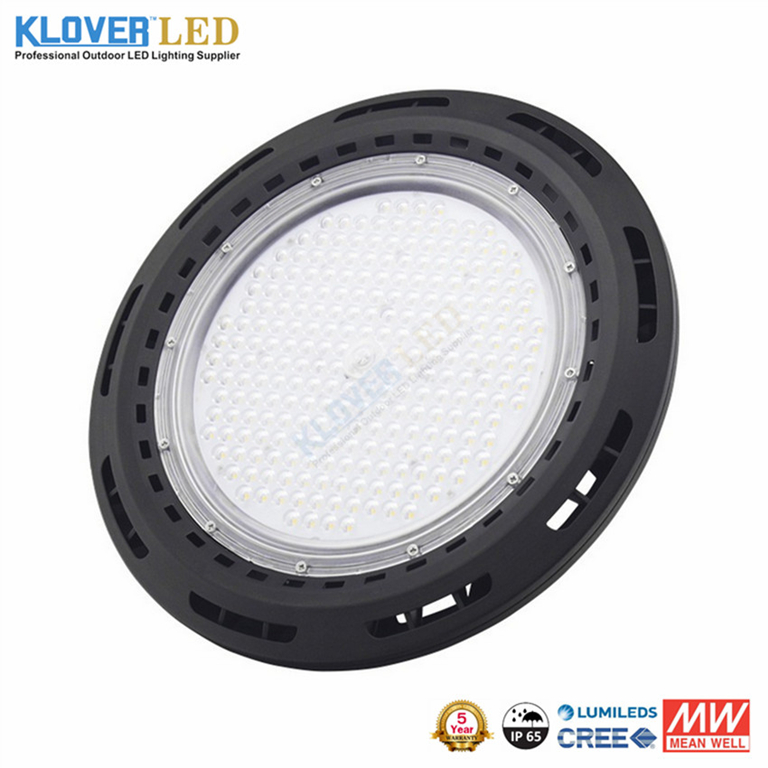

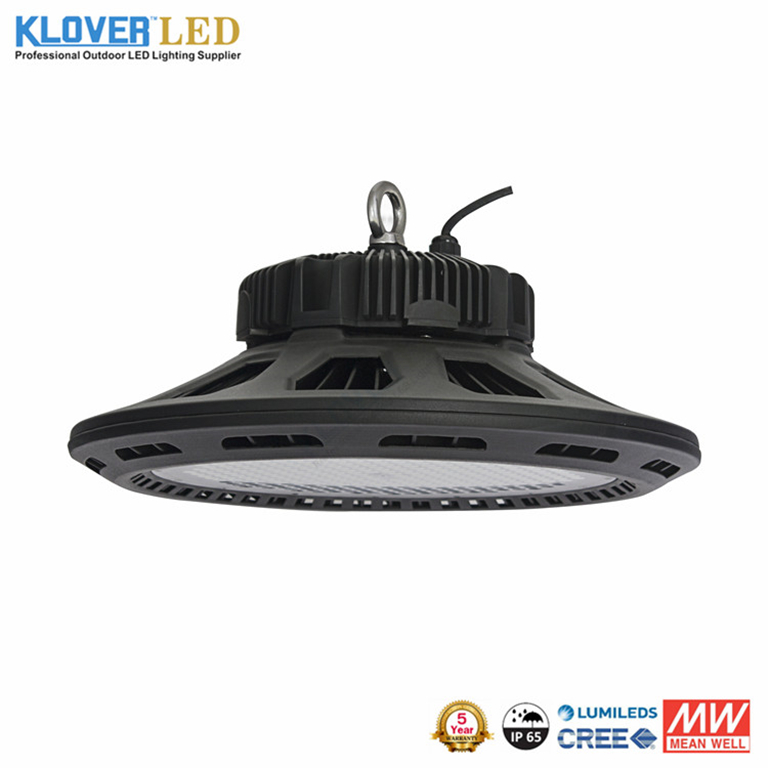

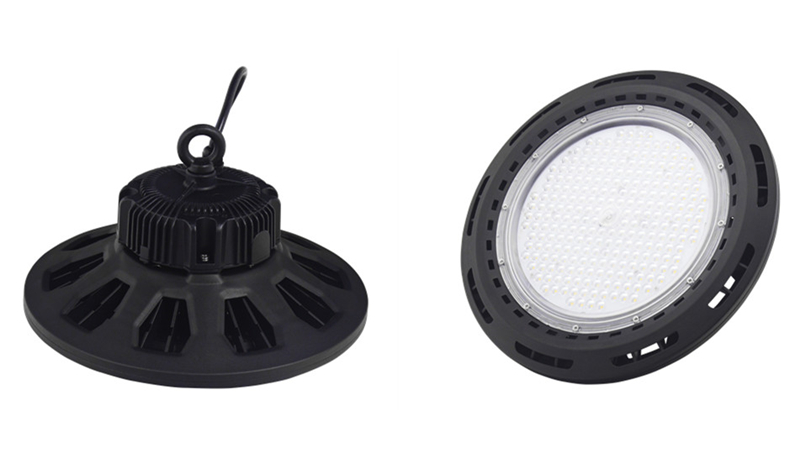

Product pictures

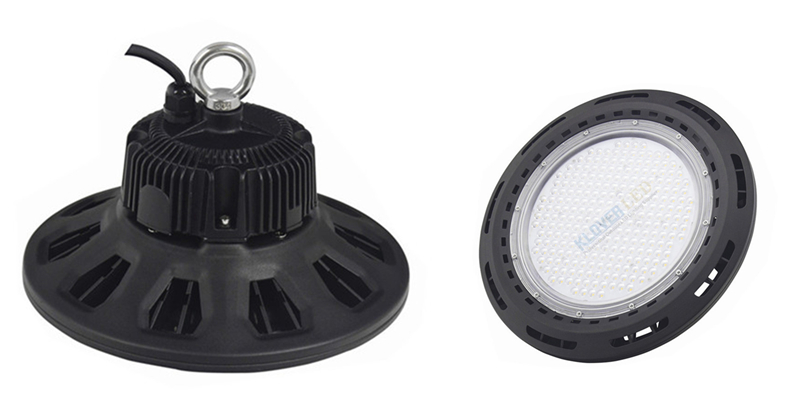

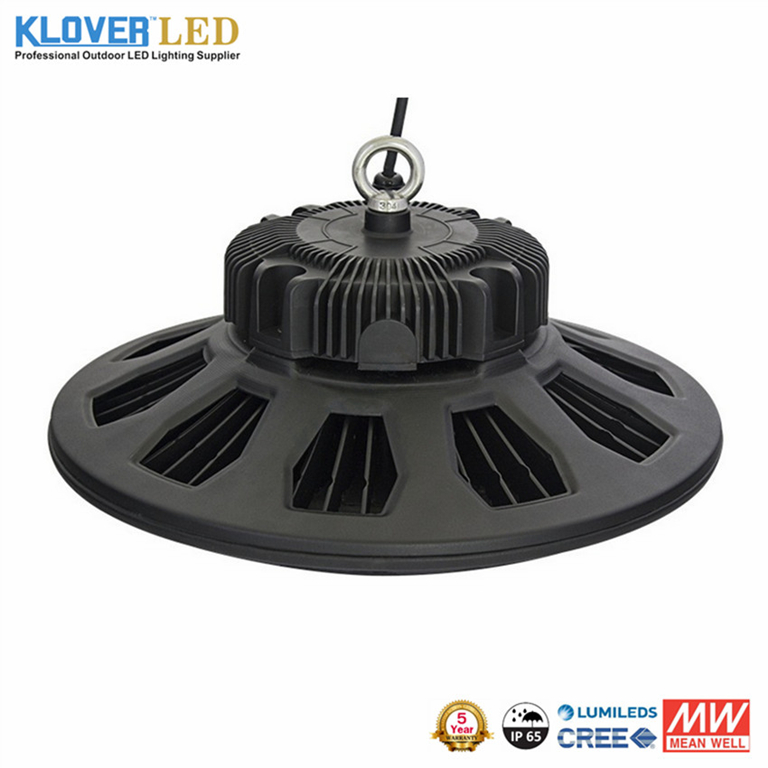

China 0-10V dimming 100W 120W UFO LED high bay light for warehouse, factory & parking lot

100W/120W UFO LED high bay light for warehosue, factory & parking lot, diameter 260mm

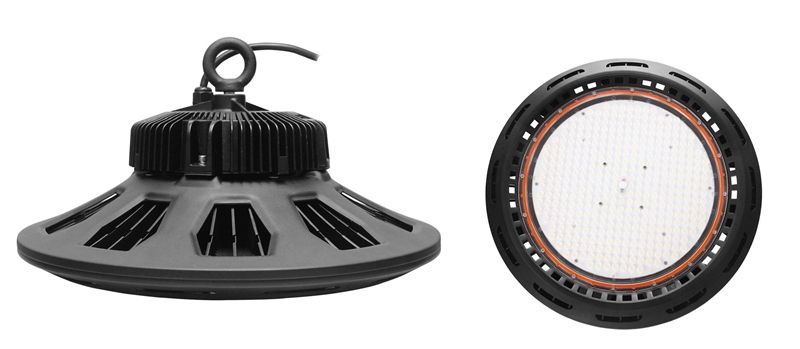

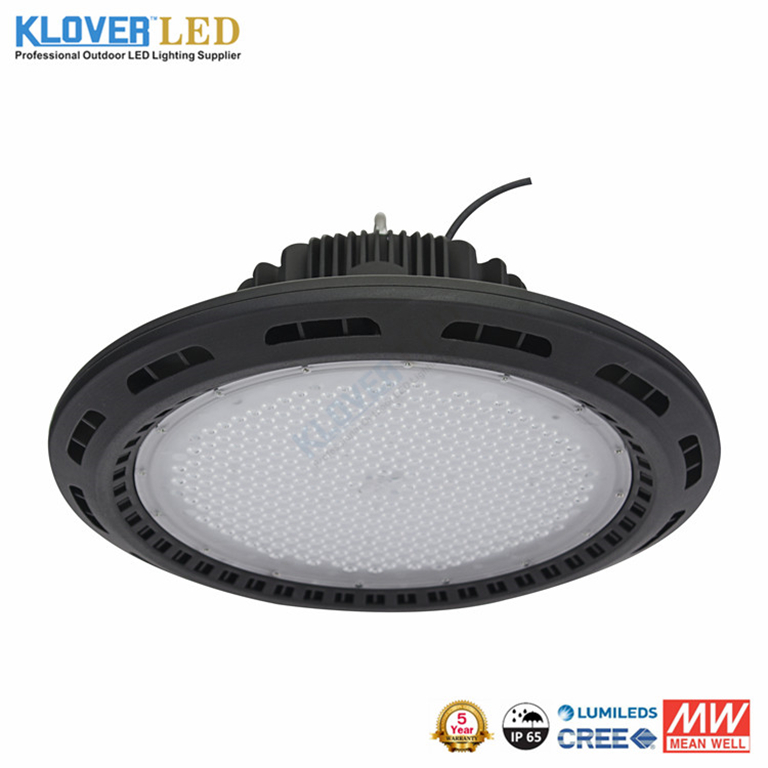

China 0-10V dimming 120W 150W UFO LED high bay light for warehouse, factory & parking lot

China 0-10V dimming 120W 150W UFO LED high bay light for warehouse, factory & parking lot, diameter 325mm

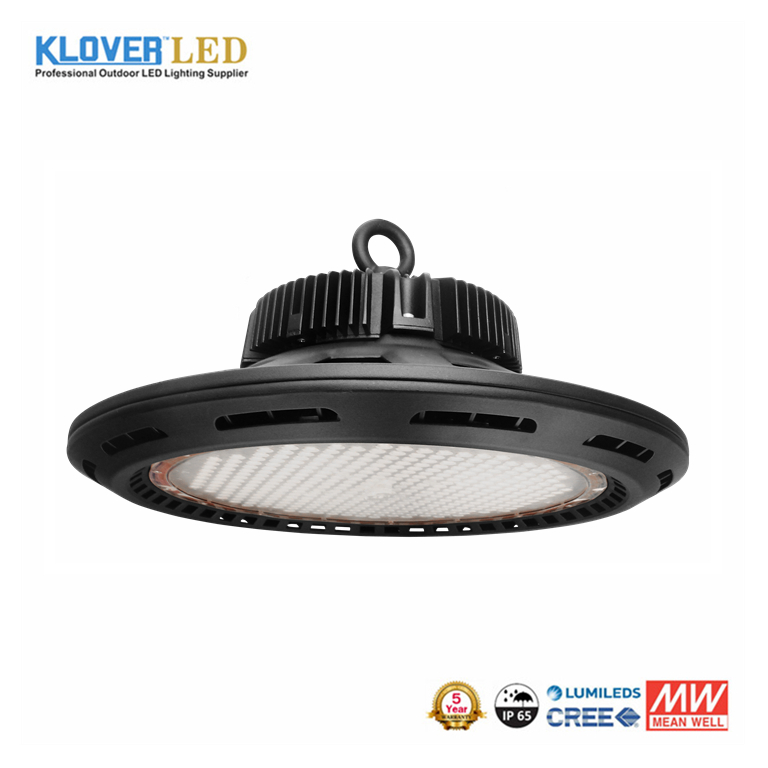

China 0-10V dimming 200W 240W UFO LED high bay light for warehouse, factory & parking lot

China 0-10V dimming 200W 240W UFO LED high bay light for warehouse, factory & parking lot, diameter 400mm

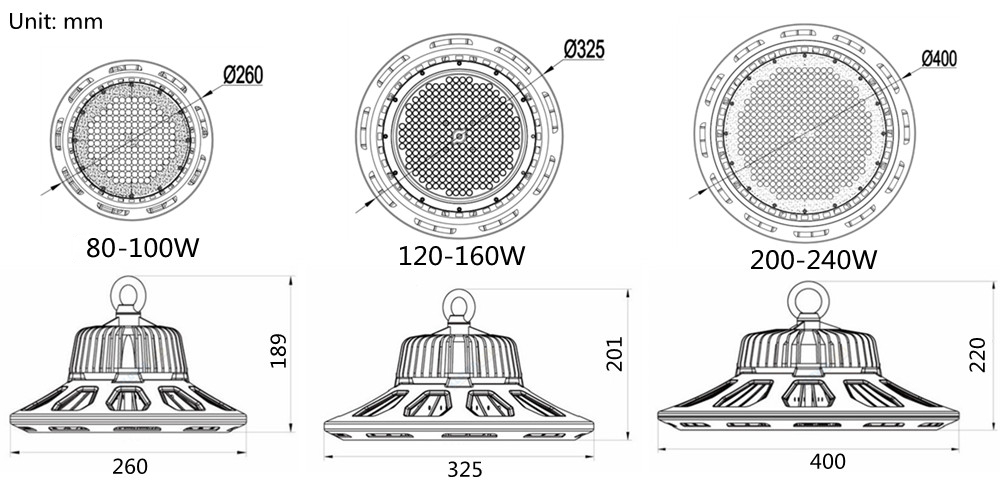

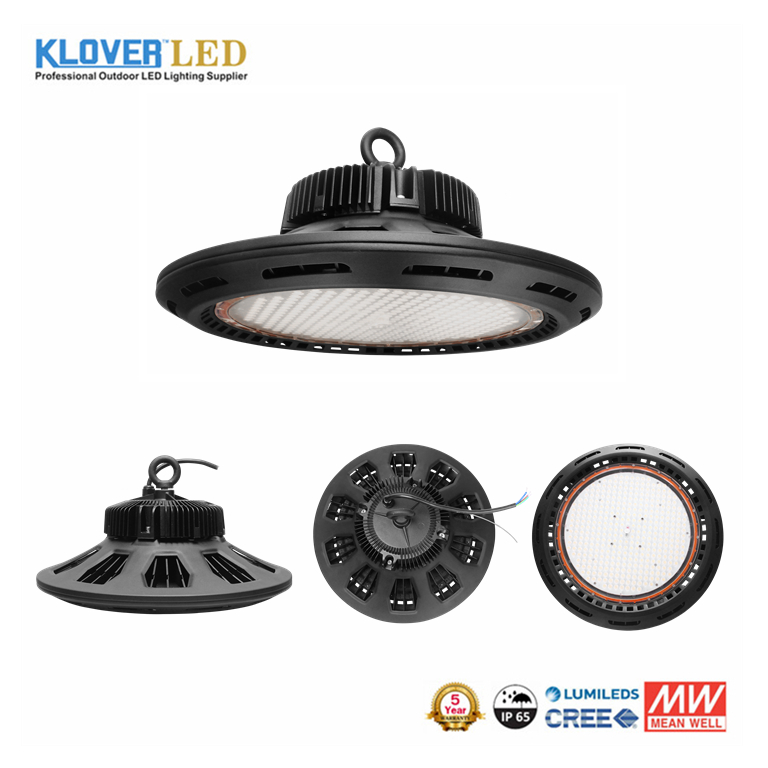

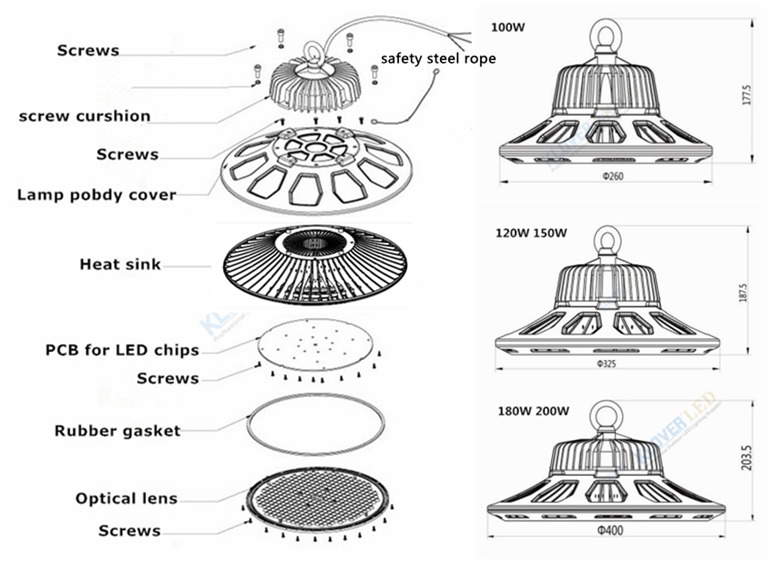

Product size and breakdown detailes

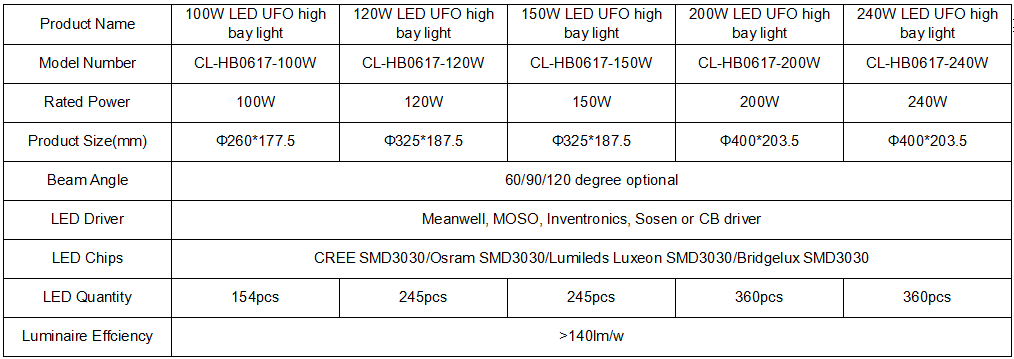

Quick specification for HB0617 series UFO LED high bay light

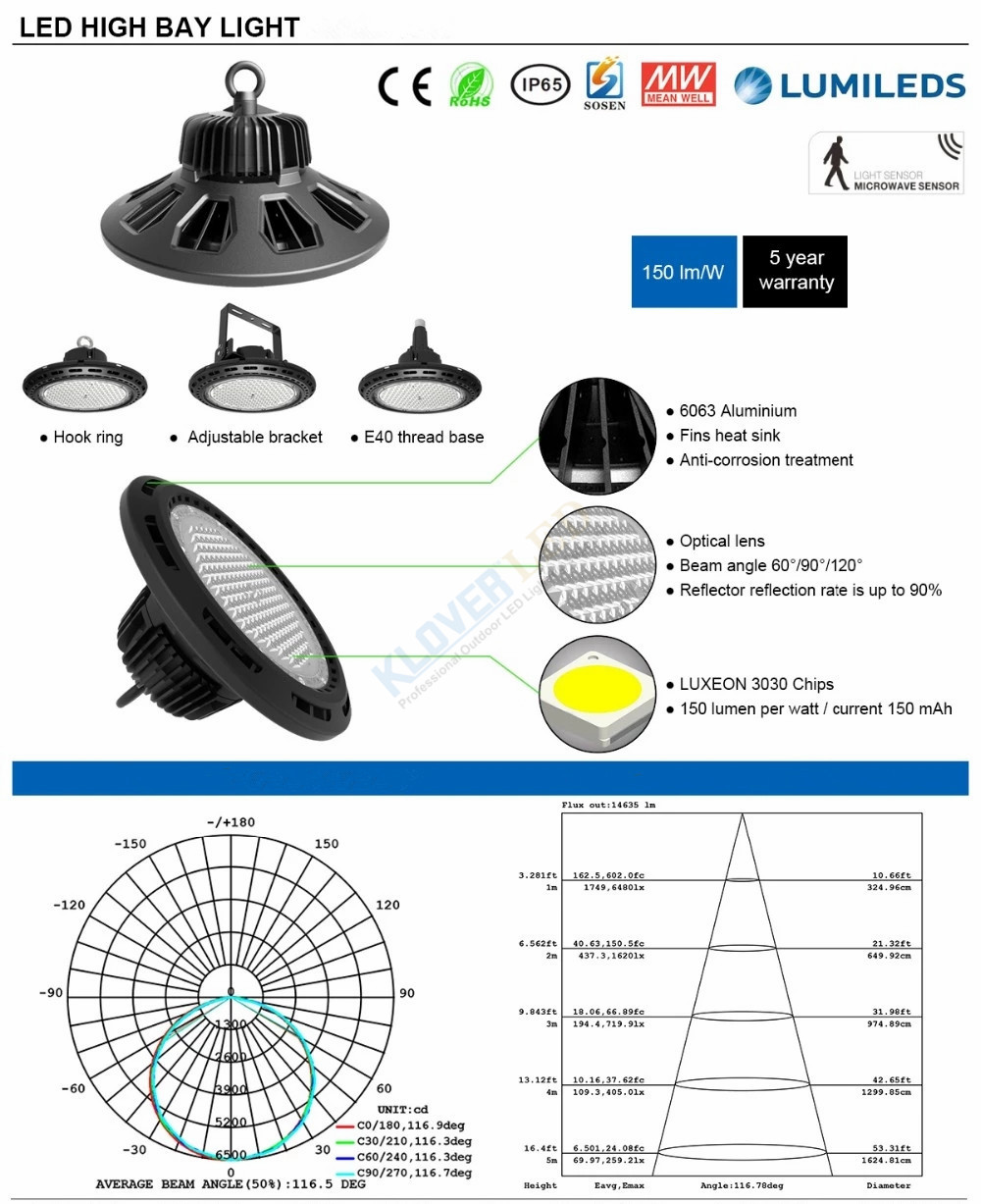

Optical design

With three beam angle selection, 60 degree, 90 degree and 120 degree

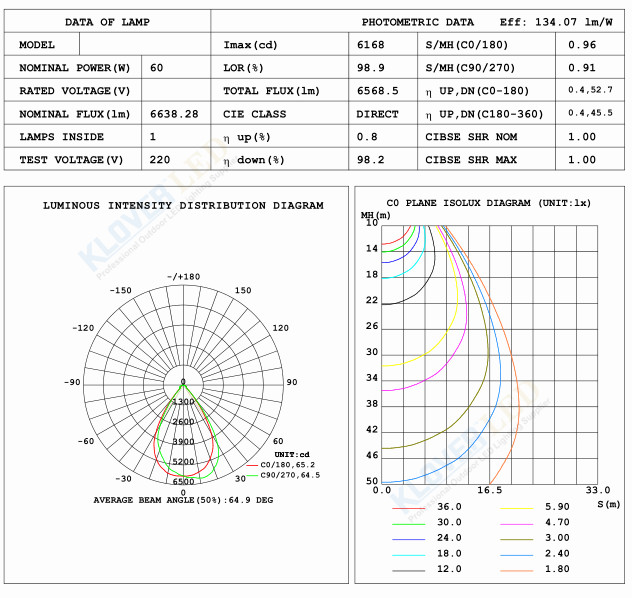

60 degree beam China 0-10V dimming 100W 120W 150W 200W 240W UFO LED high bay light for warehouse, factory & parking lot

60 degree beam China 0-10V dimming 100W 120W 150W 200W 240W UFO LED high bay light for warehouse, factory & parking lot

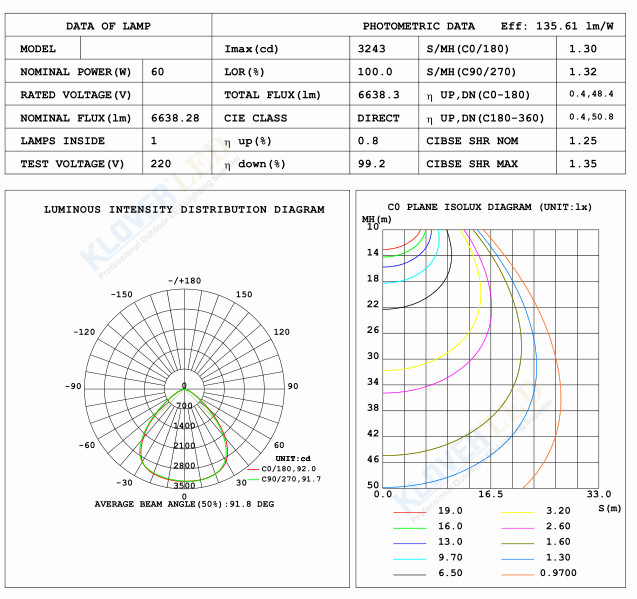

90 degree beam China 0-10V dimming 100W 120W 150W 200W 240W UFO LED high bay light for warehouse, factory & parking lot

90 degree beam China 0-10V dimming 100W 120W 150W 200W 240W UFO LED high bay light for warehouse, factory & parking lot

120 degree beam China 0-10V dimming 100W 120W 150W 200W 240W UFO LED high bay light for warehouse, factory & parking lot

120 degree beam China 0-10V dimming 100W 120W 150W 200W 240W UFO LED high bay light for warehouse, factory & parking lot

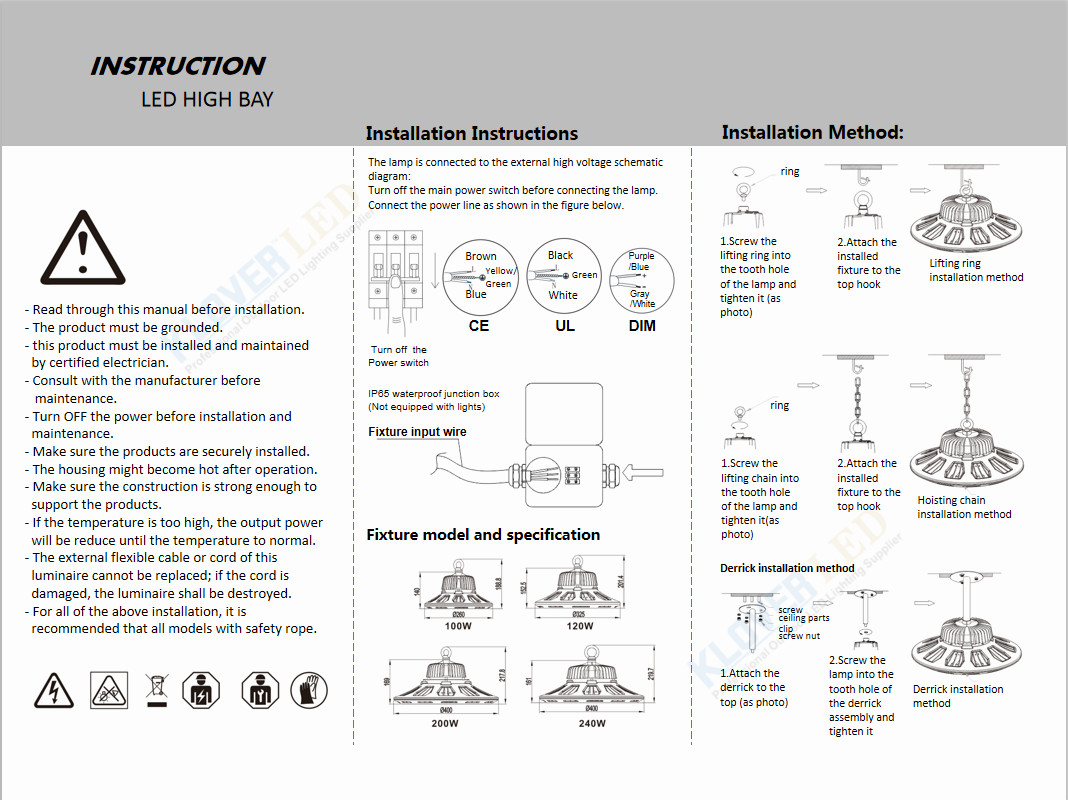

Installation guide for HB0617 Sereis UFO LED high bay light

installation guide for China 0-10V dimming 100W 120W 150W 200W 240W UFO LED high bay light for warehouse, factory & parking lot

installation guide for China 0-10V dimming 100W 120W 150W 200W 240W UFO LED high bay light for warehouse, factory & parking lot

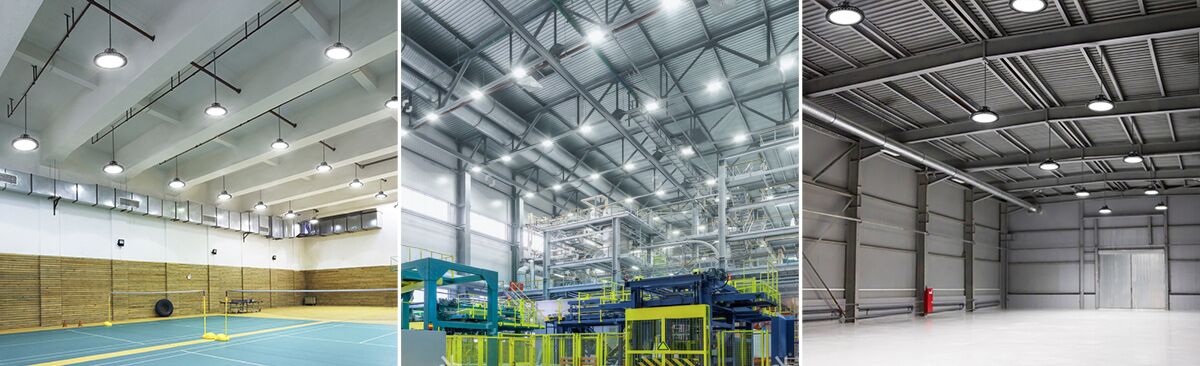

Application for China 0-10V dimming 100W 120W 150W 200W 240W UFO LED high bay light for warehouse, factory & parking lot

The HB0617 series UFO LED high bay light is largely used for indoor and outdoor large area lighting, like warehouse lighting, factory lighting, parking lot lighting, can be equipped 0-10V dimming to adjust the brightness for more energy saving.

About us

We are a leading manufacturer for outdoor LED lights, especially for UFO LED high bay light, LED high bay light, LED canopy light, LED street light, Solar street light.,etc.

at present our latest technology for UFO high bay light can reach 180lm/w with more energy saving.
