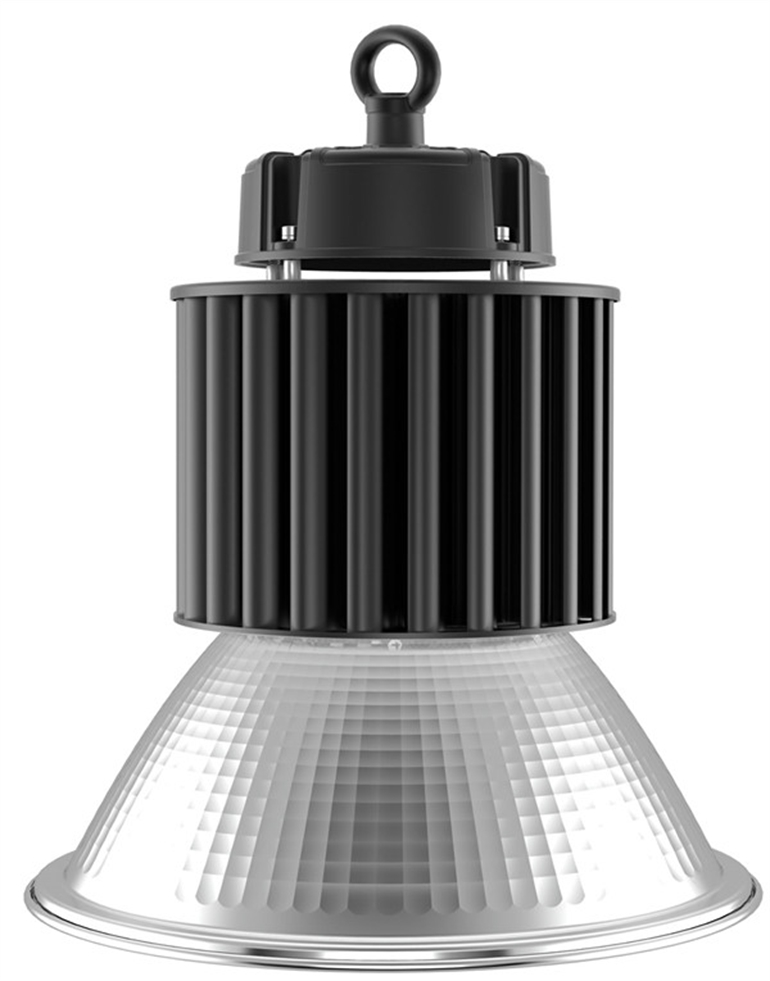

China 200W LED high bay light for warehouse factory industrial lighting

Model No.: CL-HB0475-200W

Luminaire efficiency: >130lm/w

Heatsink Size: Φ350*352mm(lamp shade packed separately)

LED Driver: Meanwell/Philips Lumileds

LED chips: 150pcs Philips Lumileds 3030

Input voltage: AC100-305V 50/60HZ

PF: >0.95 THD: <10%

CCT: 2700-6500K,

Ra: >70,

Water proof: IP65

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

Description

China 200W LED high bay light for warehouse factory industrial lighting

China 200W LED high bay light for warehouse factory industrial lighting

Product description:

Item No: CL-HB0475-200W

Rated Power: 200W

Materials: Die-casting aluminum alloy with copper heatpipe riveted.

LED driver: Meanwell/Moso/Philips UL, CE, CB, SAA listed

LED chips: 203pcs Lumileds SMD3030, LM-80 listed

Luminous Flux: 26,000Lm

Luminous efficiency: 135Lm/W

Input power: 100-305VAC, 50/60Hz

PF: >0.95

THD:<10%

Color Rendering Index(CRI): Ra>70, Ra>80 optional

Color temperature(CCT): 2700-6500K optional.

LED chips lifespan: >50,000 hours

Lamp lifespan: over 35,000 hours(if light up 12hours per day, can last 8 years)

Warranty: 5 years

Packing: Lamp body 1pcs/Ctn, CTN size: 255*255*350mm, 4.2KGS/PCS.

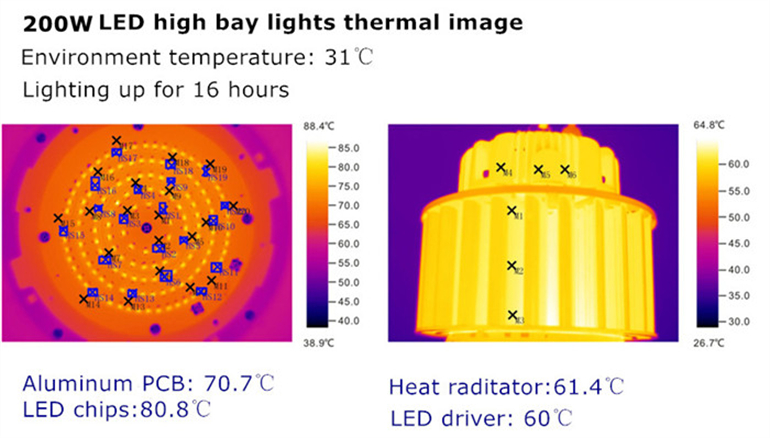

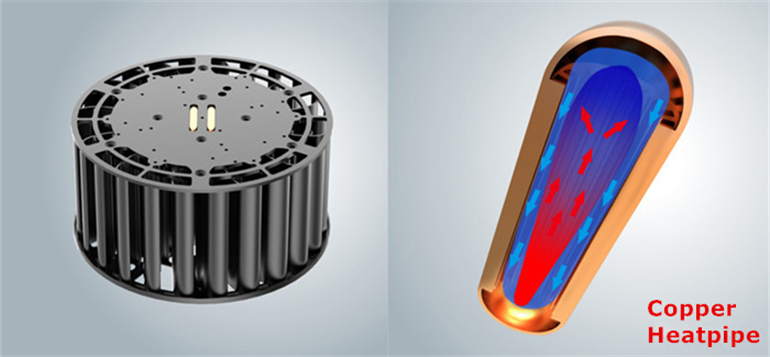

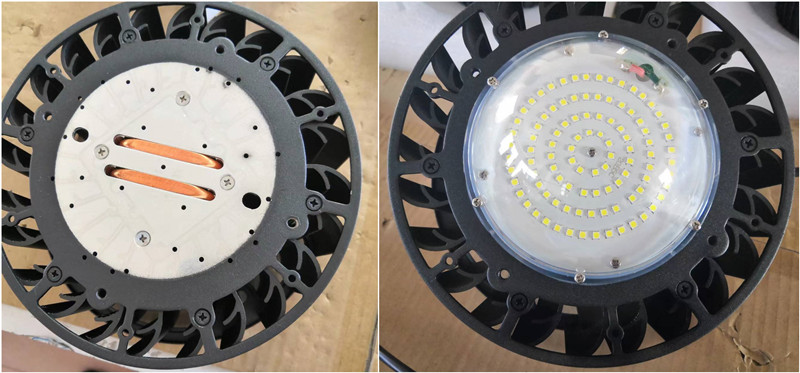

HDT technology, copper heatpipe is riveted to aluminum for better heat dissipation, with low temperature rise, largely reduce LED chips and driver heat.

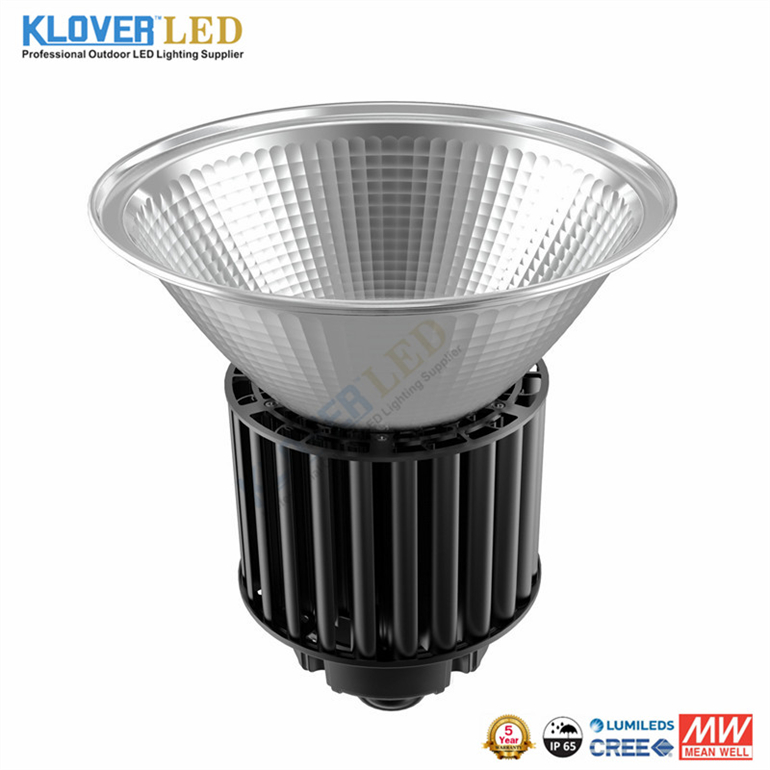

200W led high bay light for factory warehouse lighting

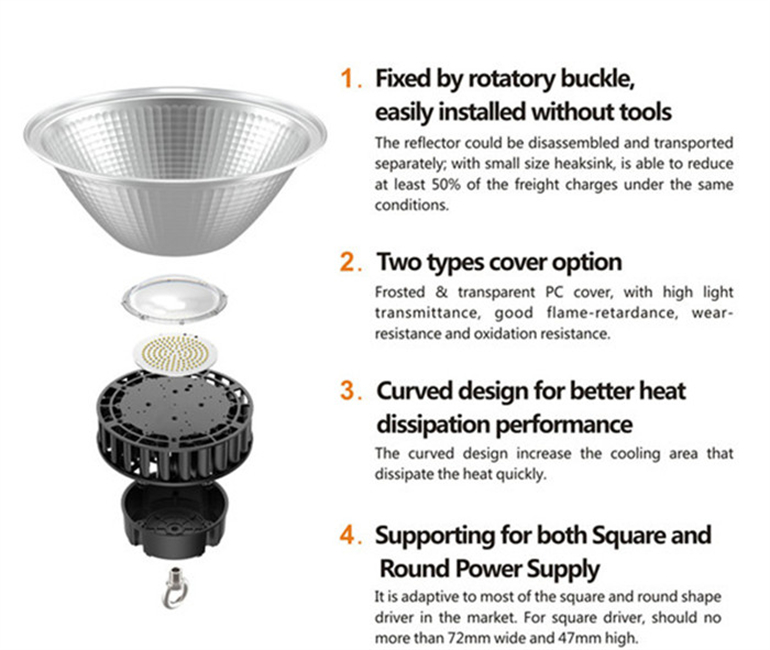

Product breakdown

breakdown for 200W LED high bay light

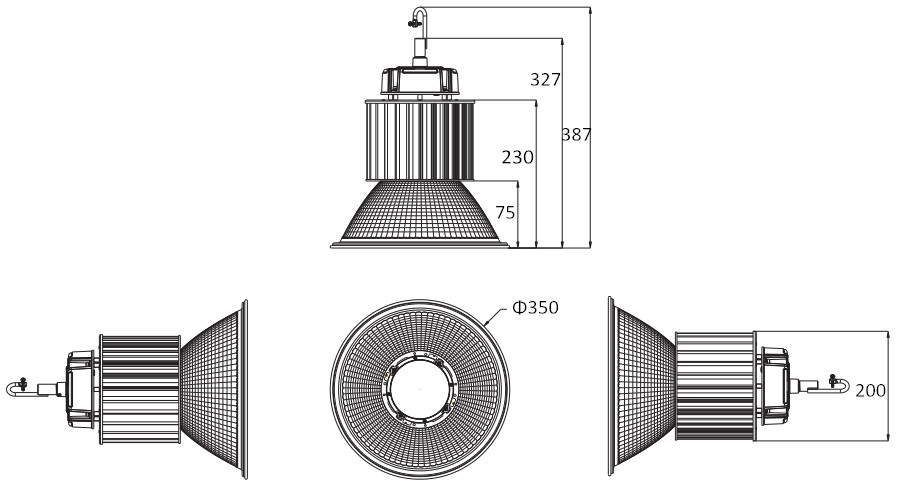

Product size for 200W LED high bay light

The series of HB0475 LED high bay light for warehouse factory industrial lighting

Item Name	60W, 100W, 150W, 200W, 240W LED High Bay Light
Model No.	HB0475-60W	HB0475-100W	HB0475-150W	HB0475-200W	HB0475-250W
Power	60W	100W	150W	200W	240W
Total Lumen	7,800lm	13,000lm	19,500lm	26,000lm	31,200lm
Product Size(mm)	Φ350*252	Φ350*272	Φ350*302	Φ350*352	Φ350*402
LED Driver	Meanwell HBG/MOSO/Sosen/Inventronics
LED Chips	Lumileds Luxeon 2D/Osram/Bridgelux/Epistar 3030 optional
LED Qty	60pcs	100pcs	154pcs	203pcs	252pcs

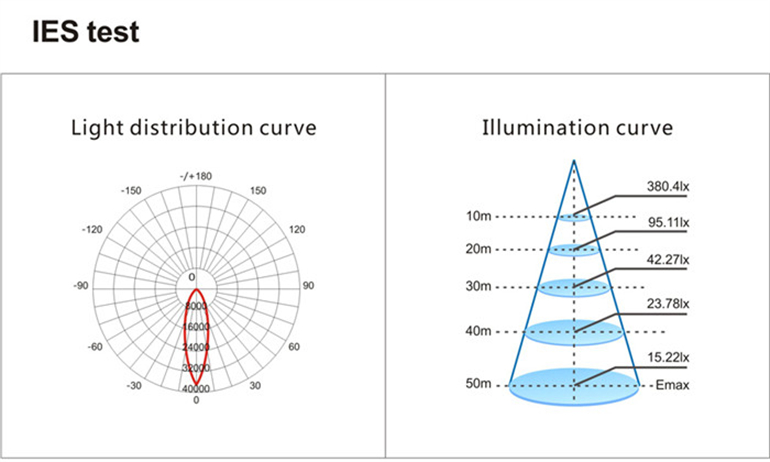

Optical parameters	Beam angle 60°, 90°, 120°optional; CCT: 3000-6500K, Ra>70, >130lm/w
Electric parameters	Input: AC100-305V 50/60HZ; 6KV Surge protection; PF> 0.95; THD: <15%
Material	Die-casting aluminum alloy with copper heatpipe
Water proof	IP65
Warranty	5 Years
