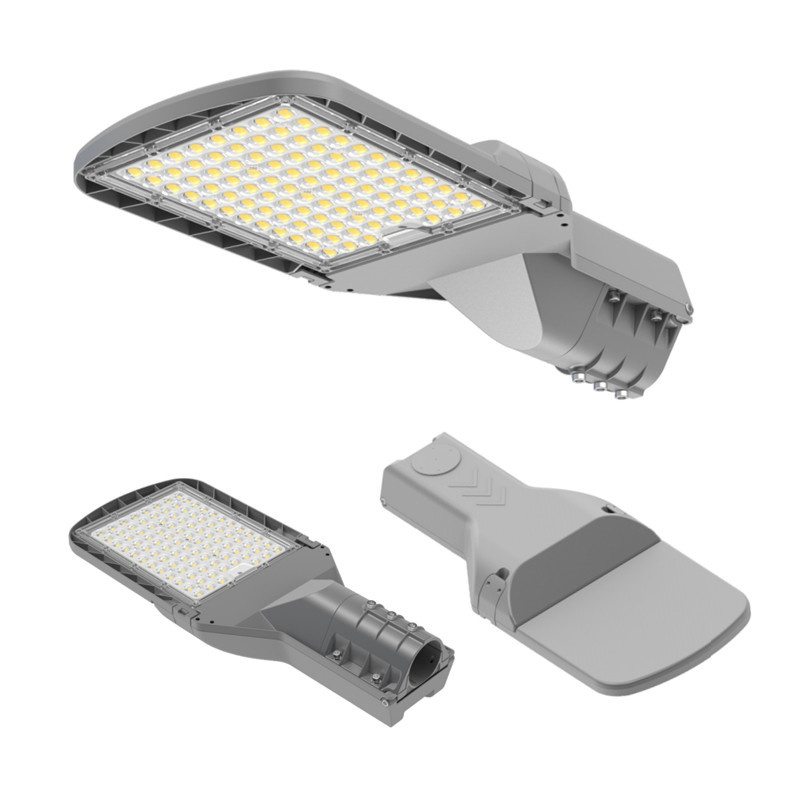

Item Name: 2022 new design LED street light 150W
Model No.: CL-SL1213 Series
Luminaire efficiency: >140lm/w
Product Size: 598*256*125mm
LED Driver: Meanwell, Philips, Sosen or Inventronics
Input voltage: AC100-305V 50/60HZ
Power Factor: >0.95 THD: <15%
IP rating: IP65 water proof
Color Temperature: 3000-6500K optional
Color Rending Index: Ra>70
IP rating: IP65
Warranty: 5 Years
1. 2022 New design, high pressure aluminum alloy injection body, integrated design, extra robust and good heat dissipation.
2. Tool free driver box open, when driver box opened, lamp power will be cut off automatically for more safe maintenance.
3. Lamp body with electrostatic powder coating, strong weather resistance performance.
4. Can be equipped with Photocell sensor, dusk to dawn automatically on/off for more energy saving.
5. LED driver Meanwell/Moso/Inventronics/Philips optional, Philips/Cree/Bridgelux chip available, luminaire efficency >150lm/w.
6. Surge protection 10/20KV optional.
| Model | CL-SL1213 series | ||

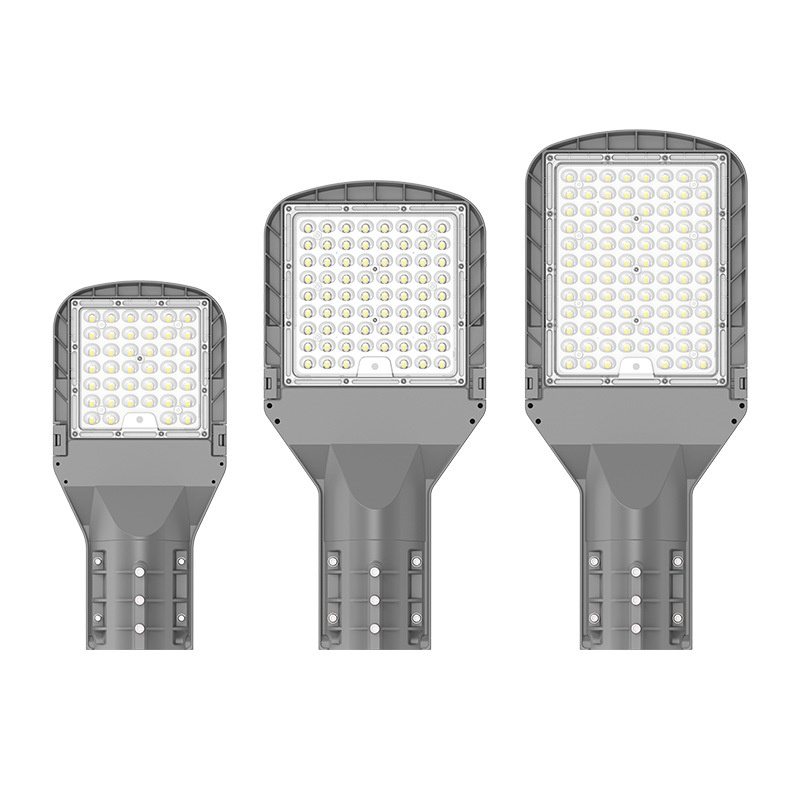

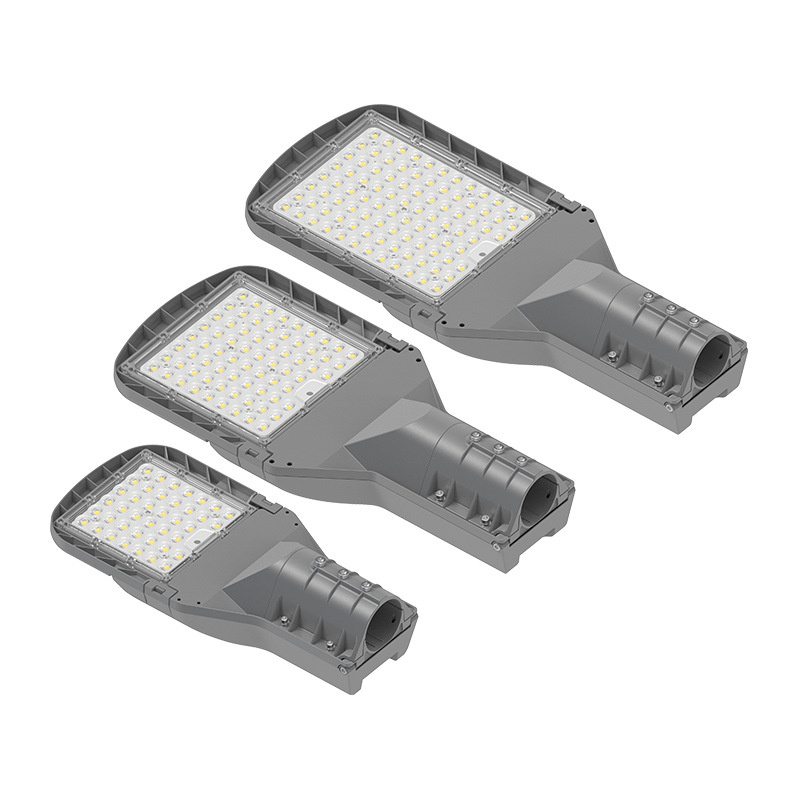

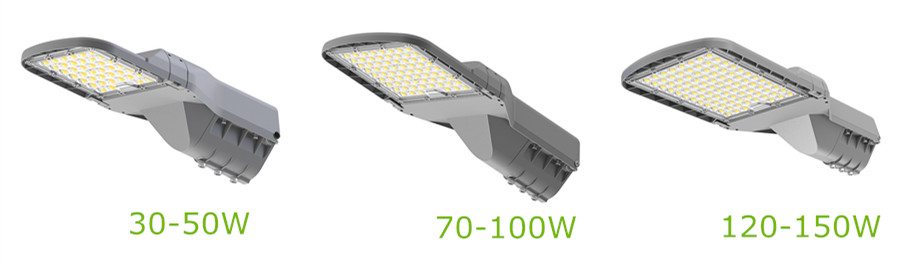

| Power | 30~50W | 70~100W | 120~150W |

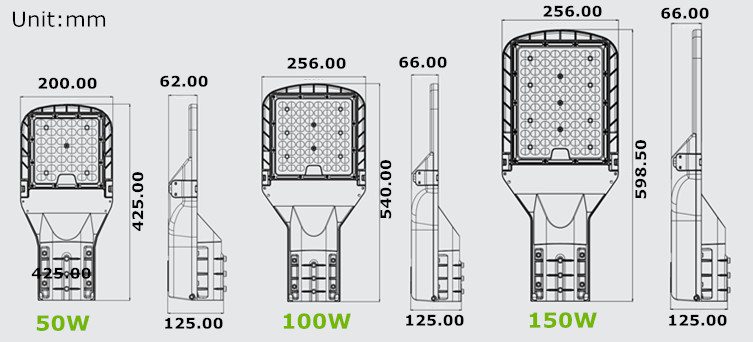

| Dimension | 425*200*121mm | 540*256*125mm | 598*256*125mm |
| Luminous Flux | 140lm/w±5% | ||
| LED Source | 96PCS SMD 3030 | 160PCS SMD 3030 | 208PCS SMD 3030 |
| Input Voltage | AC100-305V 50~60Hz | ||
| THD | <20% (Typical : 10%) | ||
| Lamp arm Holder | 60mm | ||
| Color Temperature | 2700K-6500K optional, suggest to use 5700K | ||
| Color Rendering Index | Ra>70 | ||
| IP & IK Rating | IP66 IK09 | ||
| Beam Angle | 70*150 degree | ||
| Housing Color | Gray | ||
| Working Life | >50,000 hours | ||
| Warranty | 5 years | ||
| Working Environment | -30ºC~+50ºC, 10%~90% RH | ||
| Body & Shade Material | Die-casting Aluminum housing & PC lens | ||
| Where Can Use | Road, street, path, sidewalks, highway lighting, for residential area, industrial area, parks, outdoor street/ground lighting | ||

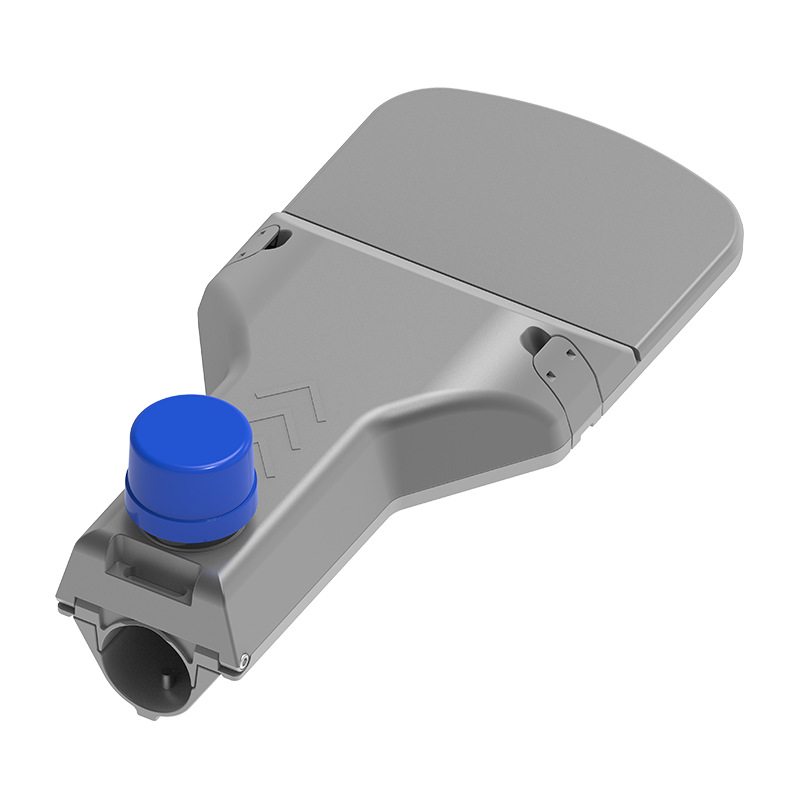

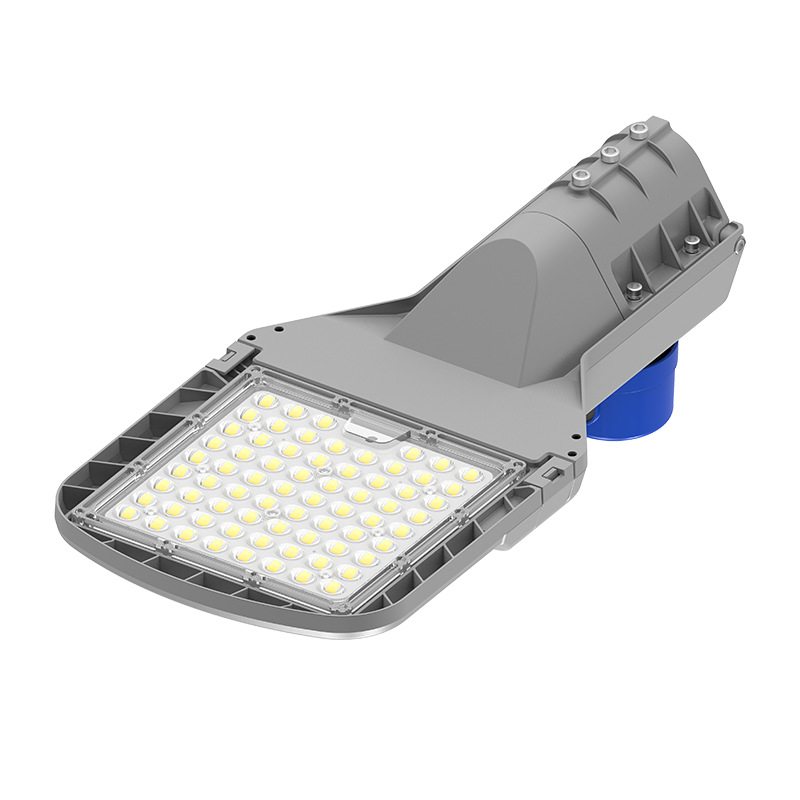

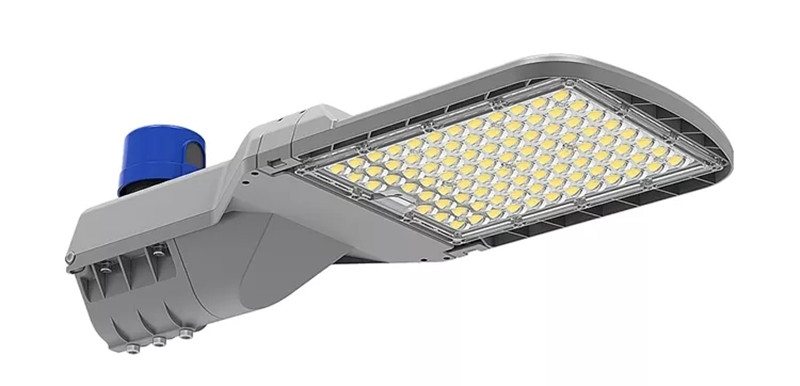

UL listed Photocell sensor optional for SL1213 series LED street light, automatically on/off in the night and morning, more energy saving.

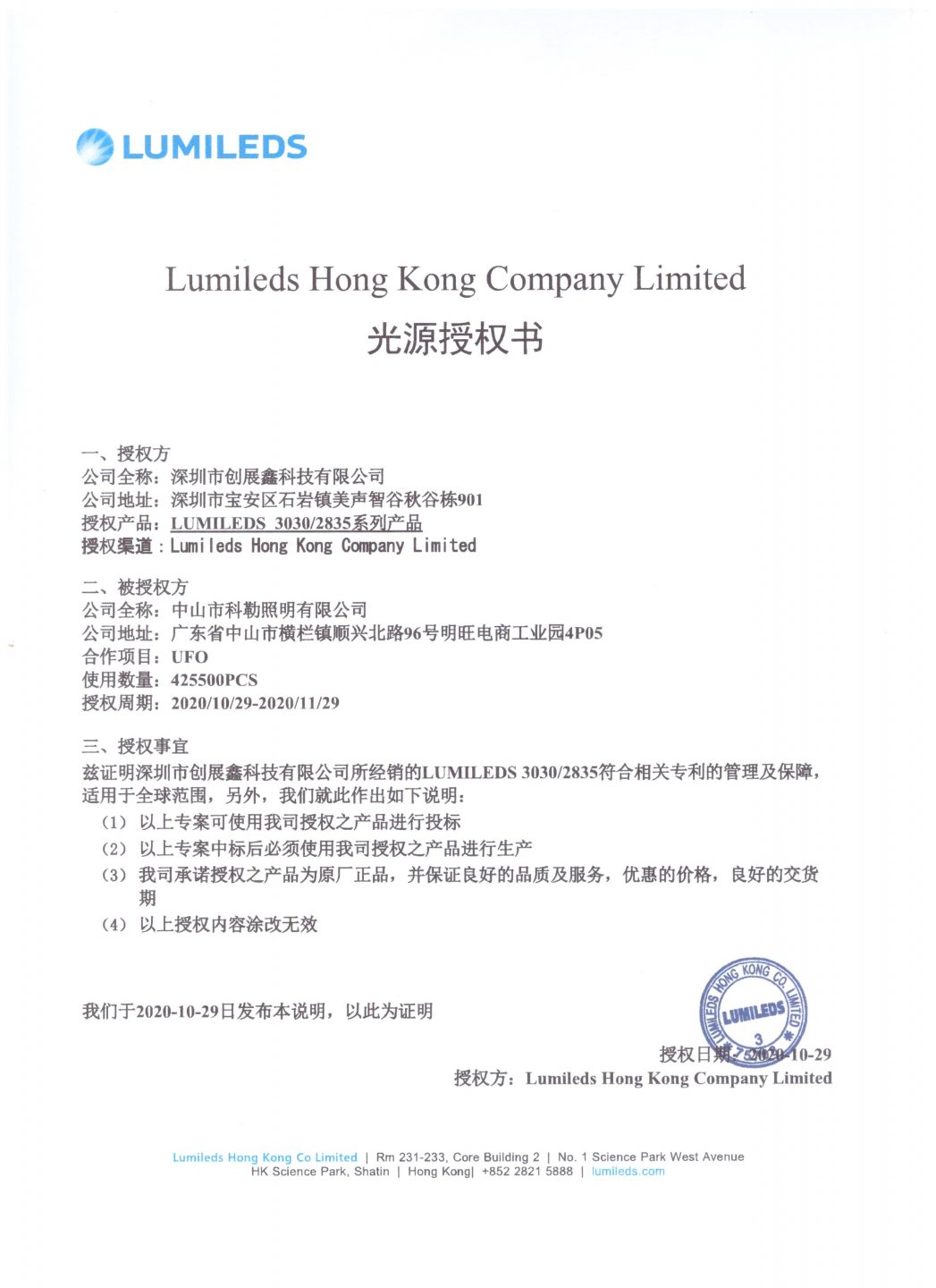

Every month/year we use lots of Philips Lumileds chips to guarantee top quality.
