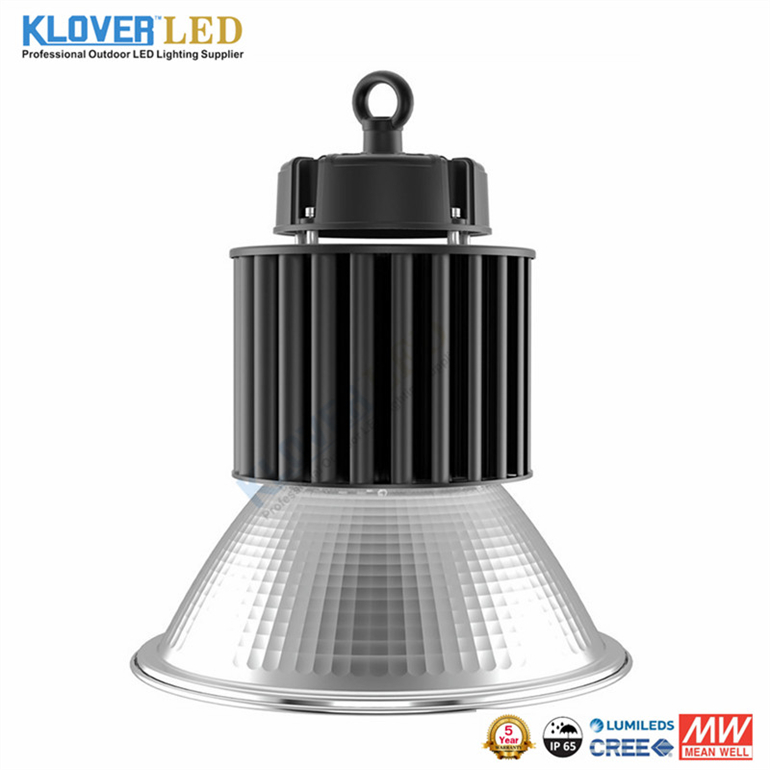

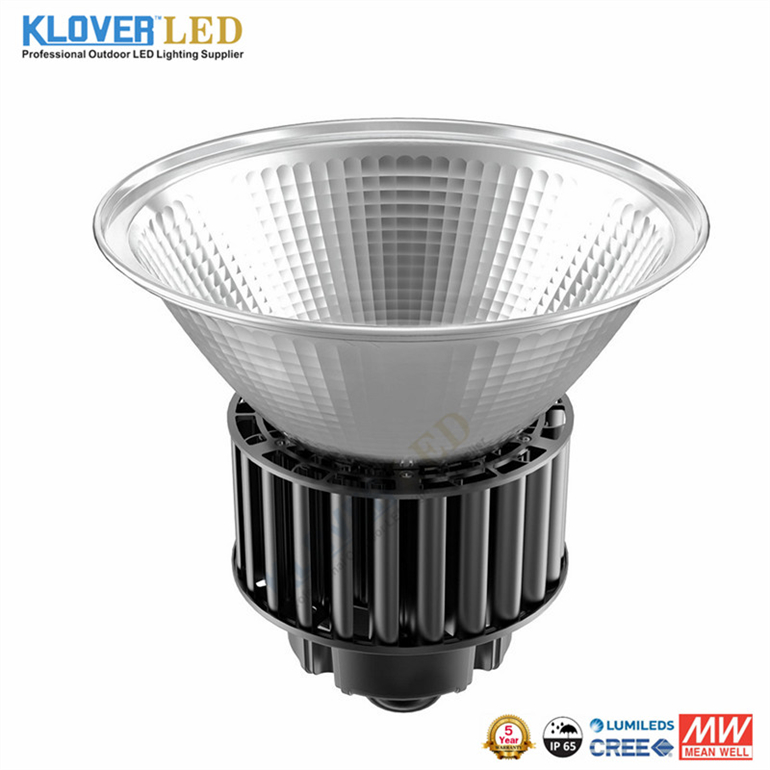

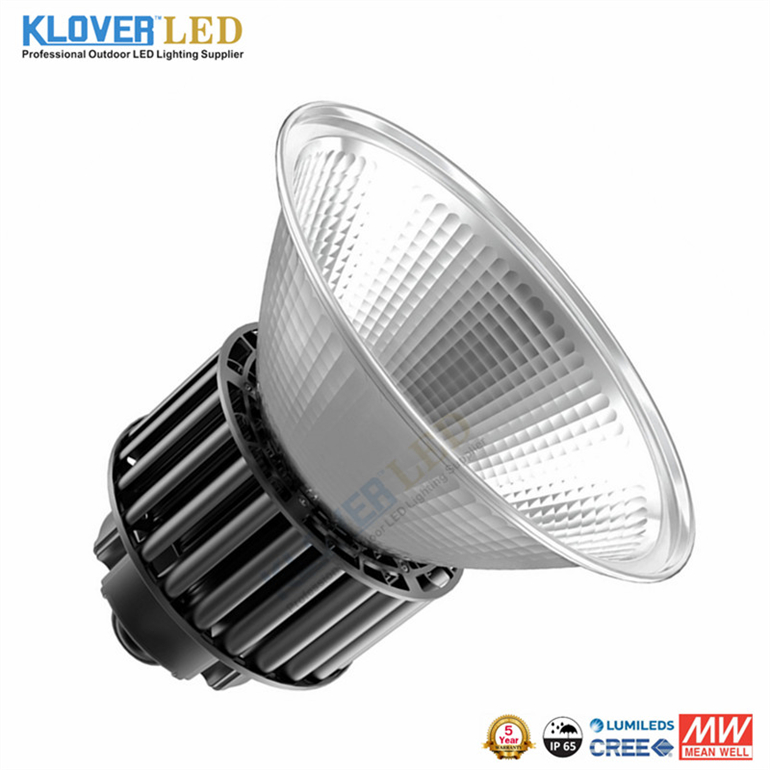

Model No.: CL-HB0475-150W series
Luminaire efficiency: >130lm/w

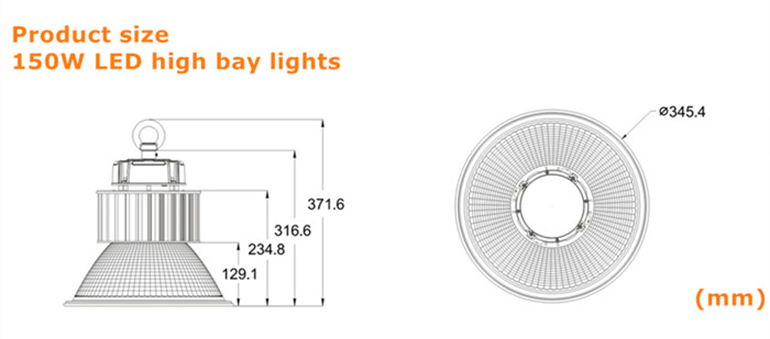

Heatsink Size: Φ350*302mm(lamp shade packed separately)
LED Driver: Meanwell/Philips Lumileds
LED chips: 150pcs Philips Lumileds 3030
Input voltage: AC100-305V 50/60HZ
PF: >0.95 THD: <10%
CCT: 2700-6500K,
Ra: >70,
Water proof: IP65
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years

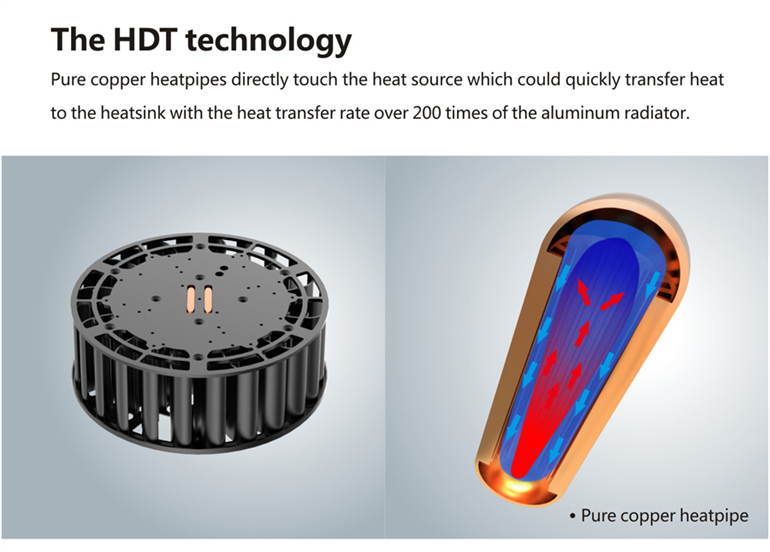

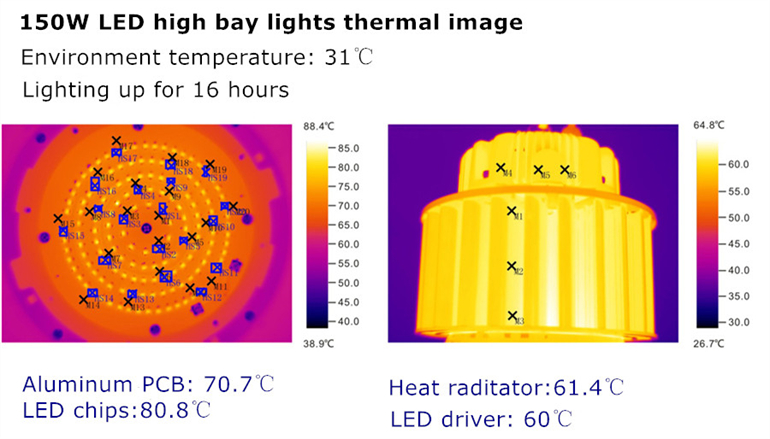

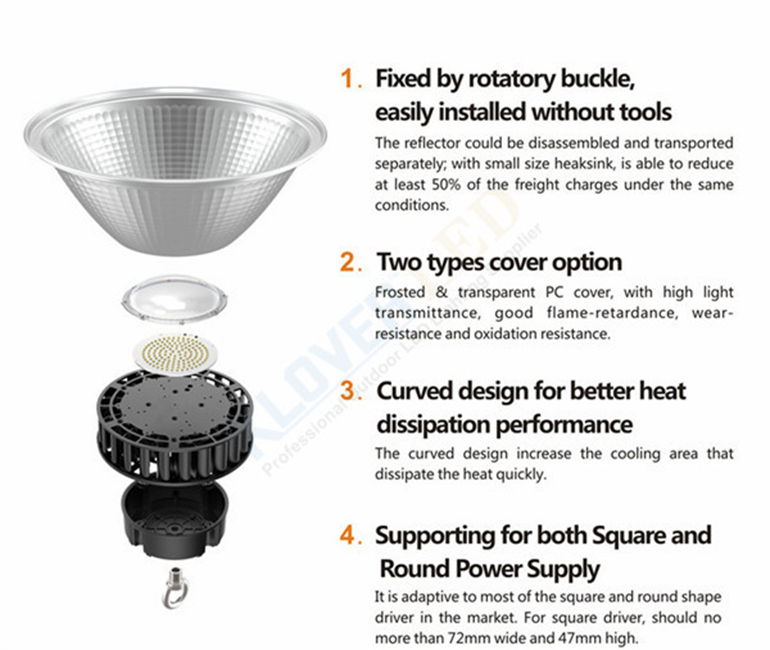

1. Die-casting aluminum alloy with copper heatpipe HTD technology, excellent heat dissipation.
2. 6063 high purity scale design reflector, better light reflecting, less light losse.
3. Luminaire efficiency >130lm/w.
4. LM-80 listed Lumileds 3030 chips and Meanwell driver, 5 years warranty.
5. Can be hook mounted, hanging ring mounted and adjustable bracket mounted.
6. No flicker, no flashing, no UV, better protect eyes.
7. Five years warranty.

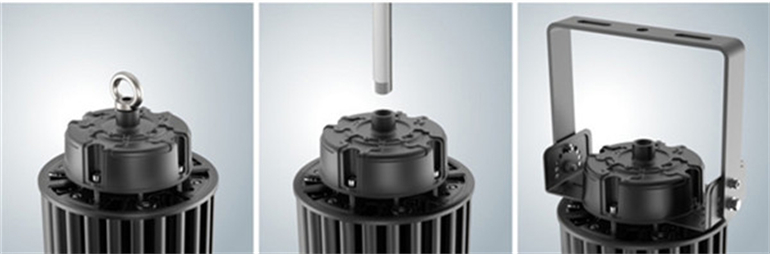

Three mounting way:
A. Chain hanging ring mounted.
B. Ceiling pole mounted,
C. Adjustable bracket surface mounted.

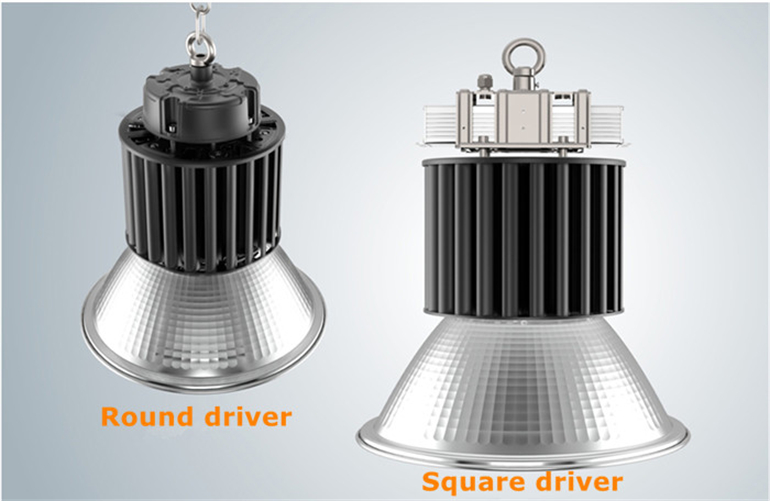

Can be equipped with round driver and rectangle long driver, both are 5 years warranty.
| Item Name | 60W, 100W, 150W, 200W, 240W LED High Bay Light | ||||
| Model No. | HB0475-60W | HB0475-100W | HB0475-150W | HB0475-200W | HB0475-250W |
| Power | 60W | 100W | 150W | 200W | 240W |
| Total Lumen | 7,800lm | 13,000lm | 19,500lm | 26,000lm | 31,200lm |
| Product Size(mm) | Φ350*252 | Φ350*272 | Φ350*302 | Φ350*352 | Φ350*402 |
| LED Driver | Meanwell HBG/MOSO/Sosen/Inventronics | ||||
| LED Chips | Lumileds Luxeon 2D/Osram/Bridgelux/Epistar 3030 optional | ||||
| LED Qty | 60pcs | 100pcs | 154pcs | 203pcs | 252pcs |

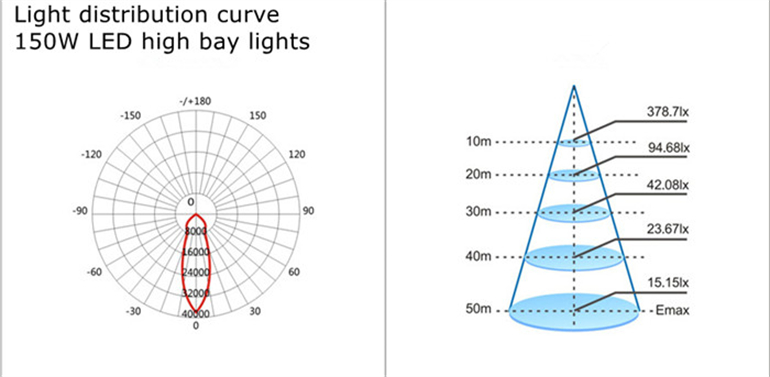

| Optical parameters | Beam angle 60°, 90°, 120°optional; CCT: 3000-6500K, Ra>70, >130lm/w | ||||
| Electric parameters | Input: AC100-305V 50/60HZ; 6KV Surge protection; PF> 0.95; THD: <15% | ||||
| Material | Die-casting aluminum alloy with copper heatpipe | ||||
| Water proof | IP65 | ||||
| Warranty | 5 Years | ||||

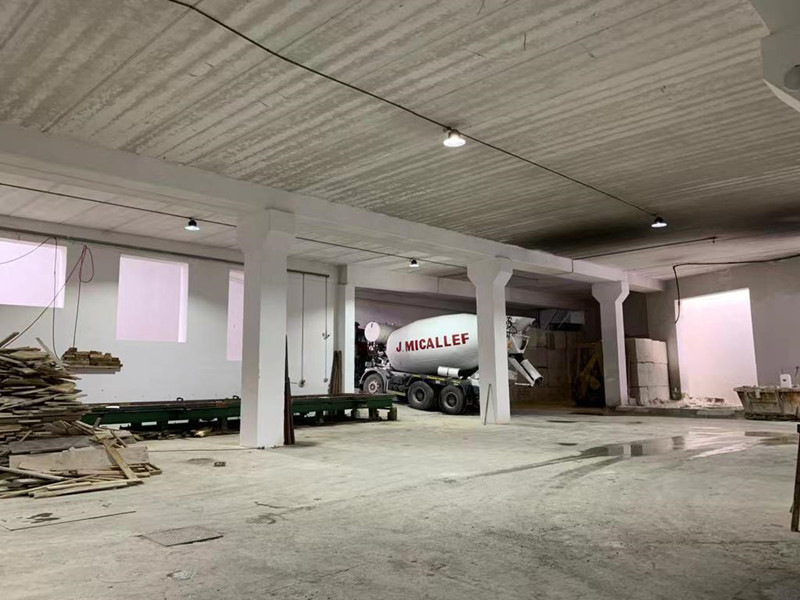

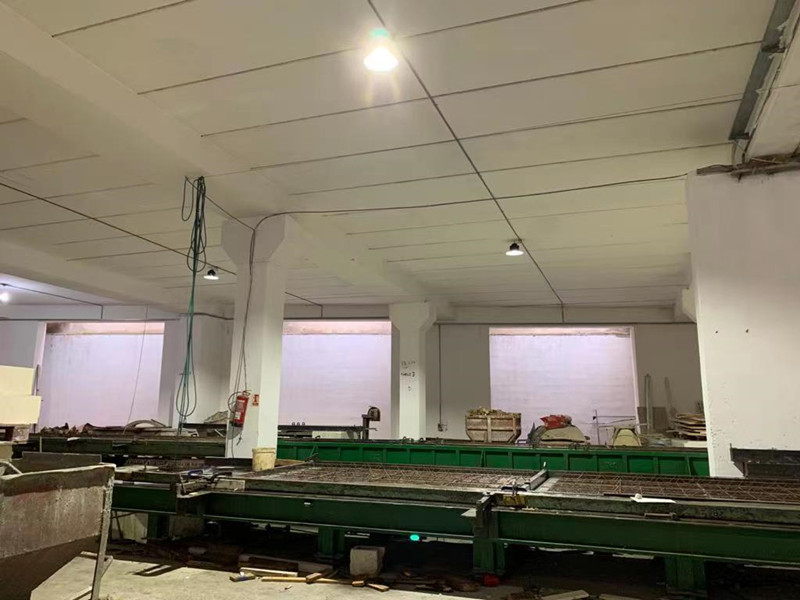

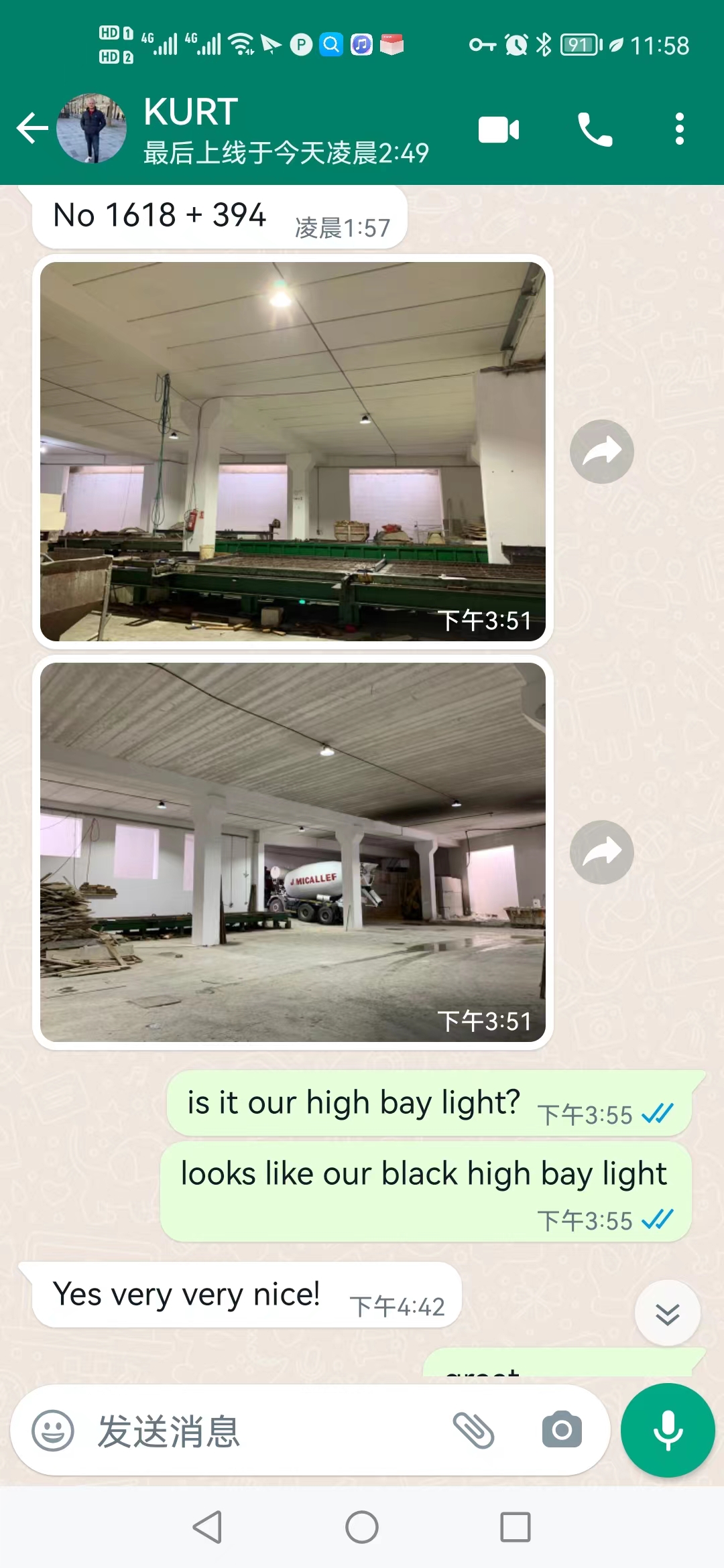

Clients whatsapp feedback very happy with our lumen output.
