[caption id="attachment_3573" align="alignnone" width="850"]

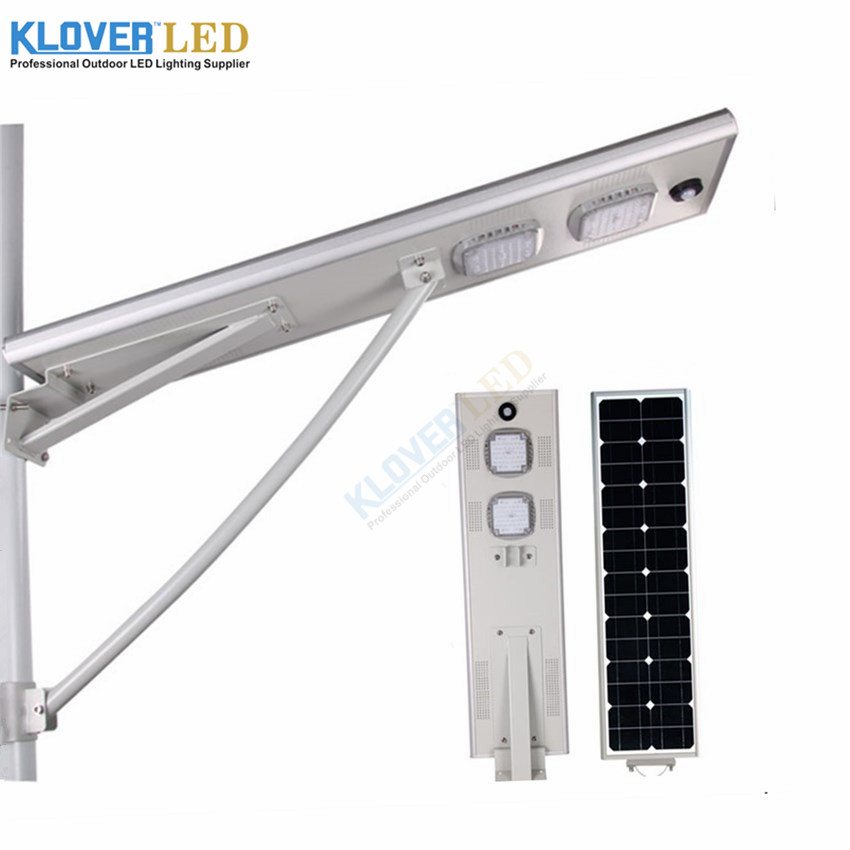

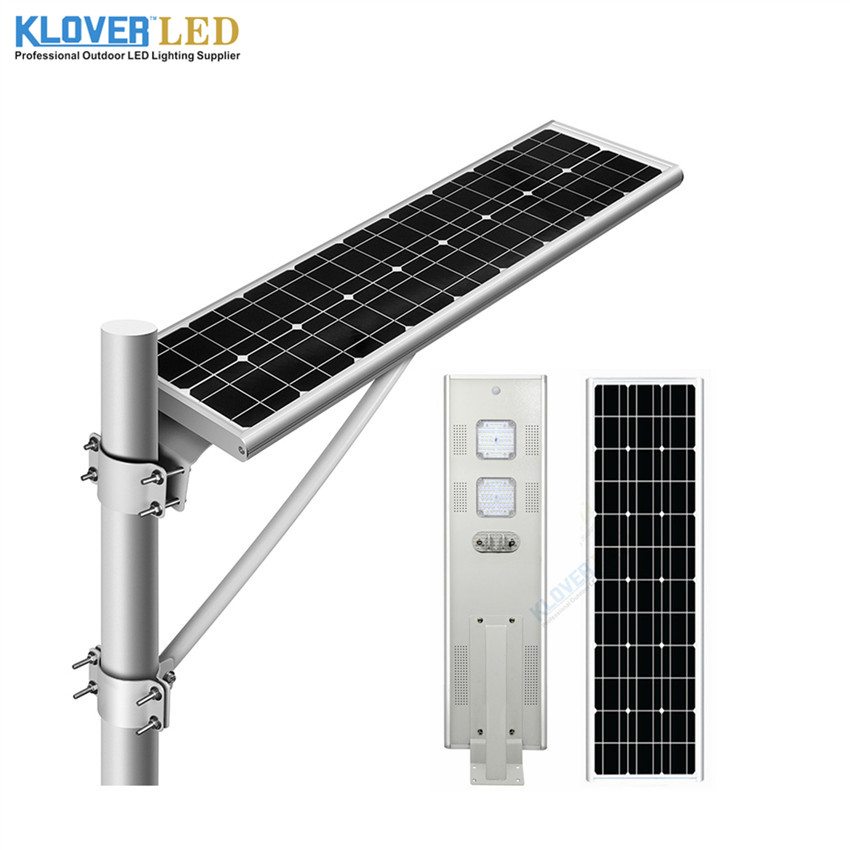

waterproof IP65 aluminum housing 30W high lumen integrated all in one solar street light china factory-SS8135 series all in one solar street light[/caption][caption id="attachment_3569" align="alignnone" width="800"]

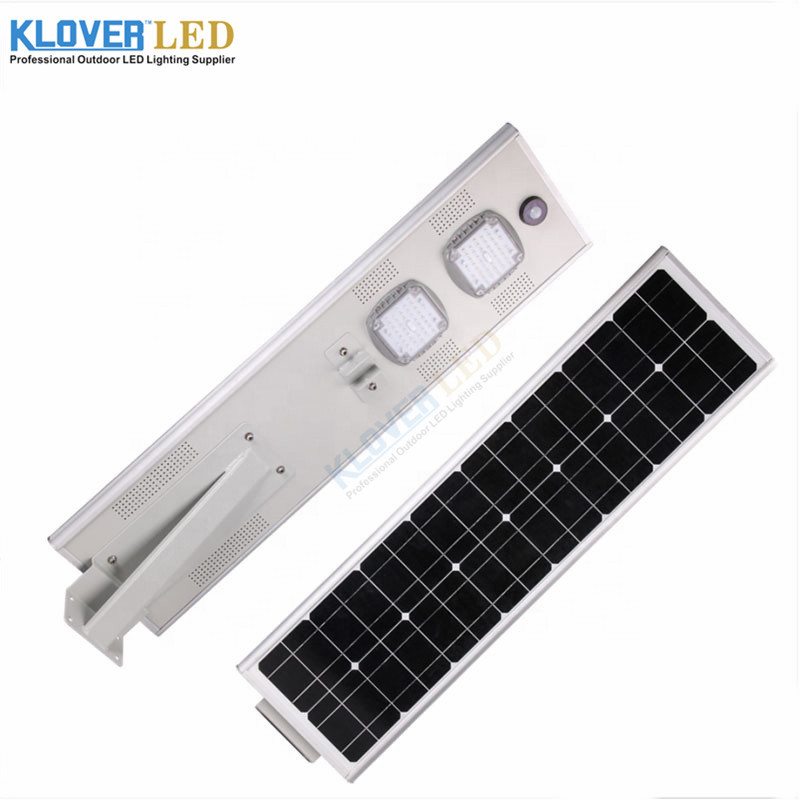

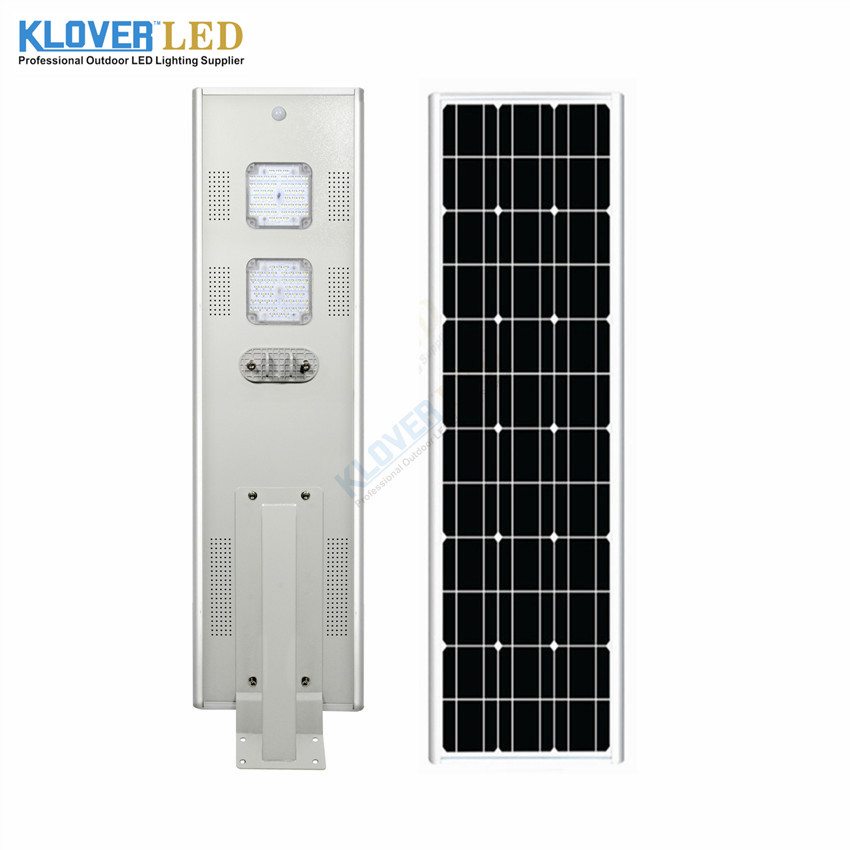

China Factory Aluminum Waterproof IP65 30W All in One Integrated Solar Street Light[/caption]Item Name: 15W/20W/30W/40W/50W/80W/100W integrated all in one solar LED street light
Model No.: CL-SSL8135 Series
Luminaire efficiency: >160lm/w
Solar panel: Mono-crystalline 18V
Battery: New LiFePo4 12.8V system
LED chips: Bridgelux/Lumileds/Sanan 3030/5050/2835
CCT: 3000-6500K Ra: >70
Beam Agle: 70*145 degree, bat wing type
IP rating: waterproof IP65
Lifespan: over 50,000hours
Warranty: 3 Years
China Factory Aluminum Waterproof IP65 30W All in One Integrated Solar Street Light-integrated top quality materials like solar panel, LiFePo4 battery, controller and Philips chips into all in one solar street light
| Model NO. | CL-SSL8135-30W | Beam Angle | 150*70 |
| Light Source | LED Lamp | Installation Height | 3-5m |
| Lamp Body Material | Aluminum Alloy | Battery Lifespan | >5 Years |
| Light Type | solar charge LiFePo4 battery powered all in one solar street light | Solar Panel Lifespan | >25 Years |
| Color Temperature | 3000-6500K | Controller Lifespan | >5 Years |
| Power | 30W | Working Temperature | -20~+60 Degree |
| Housing treatment | Electroplating | Working Way | Microwave Sensor, PIR Sensor or Dimming |
| Illumination Time | >36 Hours | Lifepsan | >50,000 Hours |
| Battery Cell Type | New LiFePO4 | Other Chips optional | Lumileds Luxeon, Bridgelux, San’AN3030 |
| Charging Time (H) | 6-8hours | Special Advantage | Individual Heat Sink for LED Module |
| Usage | Garden, highway, road, path, Street | Trademark | Klover |
| IP Rating | IP65 | Transport Package | Carton Box Packing with Foam |
| Certification | CE-EMC, RoHS | Specification | 790*360*50mm |
| Voltage | 12/24V | Origin | Zhongshan city, China |
| Solar Panel | Mono-Crystalline 18V 45W | Battery | LiFePo4 12.8V 24Ah |
| LED Chips | Philips 3030 80PCS | Lifespan | Over 5 Years |

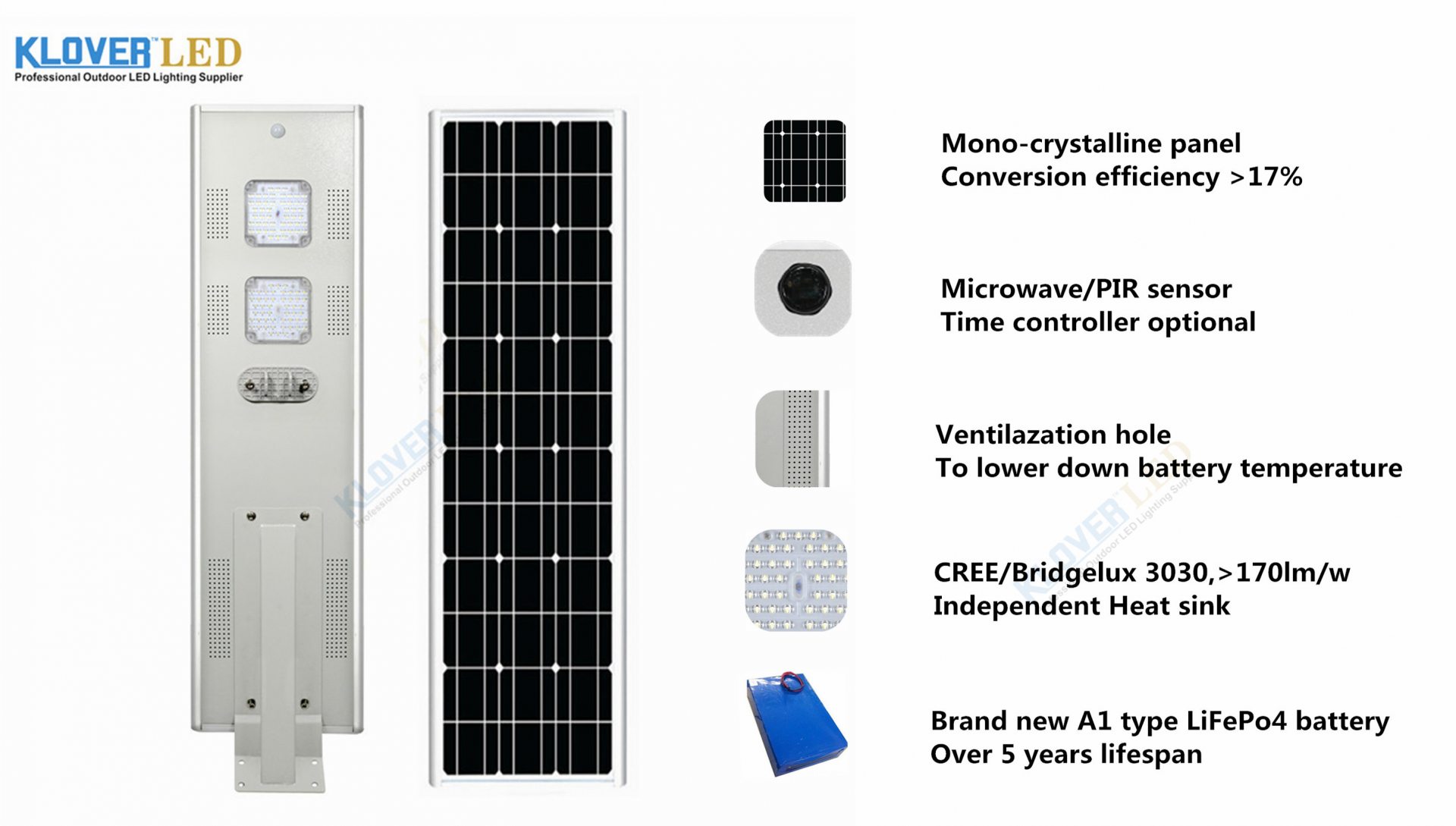

1. Heavy aluminum housing, extra strong.
2. LM-80 listed Philips/Bridgelux 3030 LED chips, maximum light source 180lm/w, Ra>70.
3. LED module has individual aluminum alloy heat sink, good heat dissipation, annual light decline 1-2%, after 10 years, still maintaine 80%-90% lumen, compared with initially installed.
4. Mono-crystalline solar panel, convension efficiency over 22%
5. Brand new LiFePo4 battery, Dod>80% after 2000 cycles.
6. SRNE, Depower or Remote power controller, top quality.
7. Luminaire efficiency: 165lm/w
8. With optical lens, 150*75 degree, bat wing light transmission

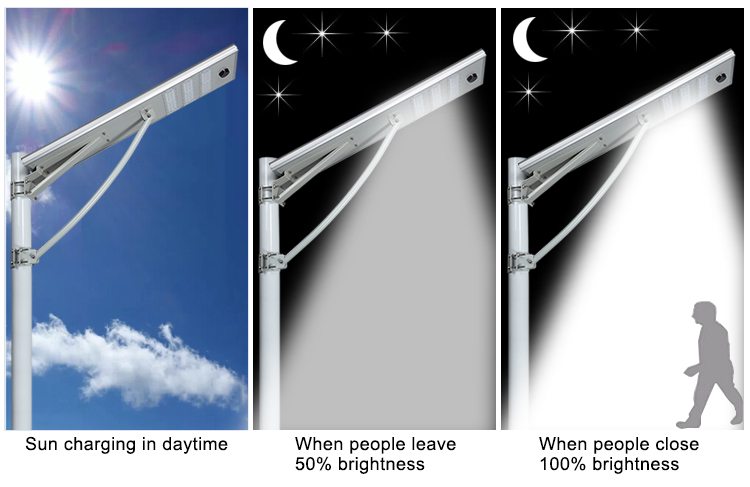

9. Equipped with Microwave sensor or PIR sensor for more energy saving, enlong lighting time
10. Charging time 6-8hours, discharge time over 24 hours.
11. Super bright, much more LED chips than rated power to achieve high lumen output.
30W integrated all in one solar street light China factory, 165lm/w all in one solar street light
Klover all in one solar street light, integrated top quality materials(new LiFePo4 battery, solar panel, controller, LED chips) in to all in one solar street light, to be the best solar street light supplier in china
PIR/Motion sensor all in one solar street light, large capacity LiFePo4 battery, Mono-crystalline solar panel, Philps Lumileds Luxeon 2D chips, SRNE controller- Klover offer the best quality integrated all in one solar LED street light in China
The difference from SSL8134 and SSL8135 is, SSL8135 series all in one solar street light has individual heat sink module for LED chips, the same Philips Lumileds Luxeon 2D 3030 chips, but SSL8135 series LED chips quantity is less, product size is the same for both SSL8134/8135 series all in one solar street light.
| Model Number | CL-SSL8135 | ||||||
| Rated Power | 15W/20W/30W/40W/50W/80W/100W all in one solar street light | ||||||
| Product Size(cm) | 68.8*30 | 64*36 | 79*36 | 108*36 | 125*36 | 125*53 | 134*53 |
| Beam Angle | 150*75 degree, bat wing light distribution curve | ||||||
| LED Controller | SRNE, Depower or Lumiax with PIR/Microwave sensor or dimming | ||||||
| LED Chips | CREE/Bridgelux/Philips Lumileds Luxeon 2D 3030 | ||||||
| LED Quantity | 40pcs | 50pcs | 80pcs | 100pcs | 120pcs | 120pcs | 150pcs |
| Luminaire Effciency | >160lm/w | ||||||
| Solar panel(Mono-crystalline) | 18V 30W | 18V 35W | 18V 45W | 18V 65W | 18V 75W | 18V 110W | 18V 120W |
| Battery(LiFePo4 ) | 12.8V 12Ah | 12.8V 18Ah | 12.8V 24Ah | 12.8V 30Ah | 12.8V 36Ah | 12.8V 42Ah | 12.8V 48Ah |
| Charging time | 6-8 hours | ||||||
| Discharge time | >36 hours | ||||||
| Installation height | 3-4m | 4-5m | 5-6m | 5-6m | 6-7m | 8-9m | 9-10m |
| Light Color | Warm White/Natural White/Cool White | ||||||
| Color Temperature | 2700-3300K/4000-4500K/6000-6500K | ||||||
| CRI | Ra>70, higher CRI available | ||||||
| UGR | <19 | ||||||
| IP Rating | IP65 | ||||||
| Working Temp | -30ºC To 60ºC | ||||||
| Material | aluminum alloy | ||||||
| Lifespan | >50,000 hours | ||||||
| Warranty | 3 years | ||||||
high lumen outdoor High lumen aluminum housing 30W all in one solar street light from China-Klover lighting
all in one solar street light price, integrated LiFePo4 battery, aluminum housing, controller, solar panel, solar street light all in one, integrated solar street light supplier-klover
Klover offer the most famous all in one solar street light in the world-top quality integrated all in one solar street light from china.
Klover lighting is a professinoal manufacturer for outdoor LED lights, all in one solar LED street light is one of our main business line
