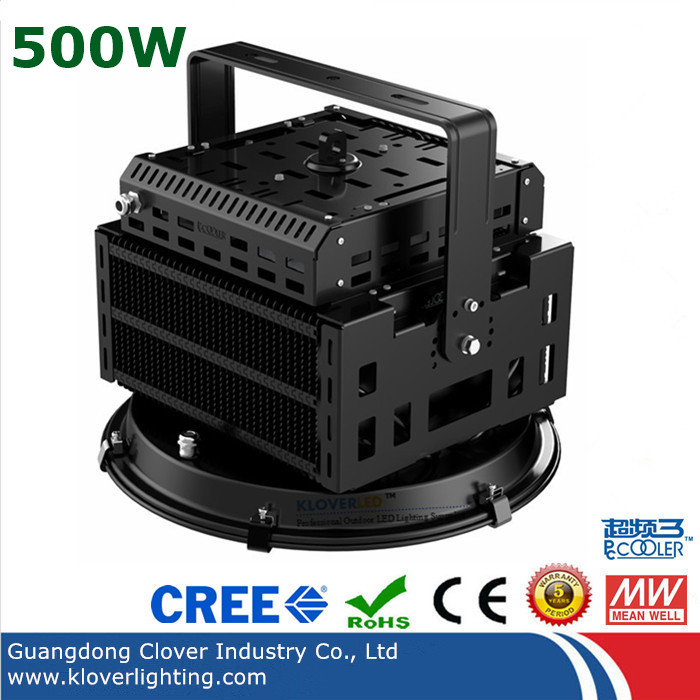

CREE XML Outdoor IP65 500W LED Spotlights with Meanwell Driver

Home LED Flood Lights CREE XML Outdoor IP65 500W LED Spotlights with Meanwell Driver

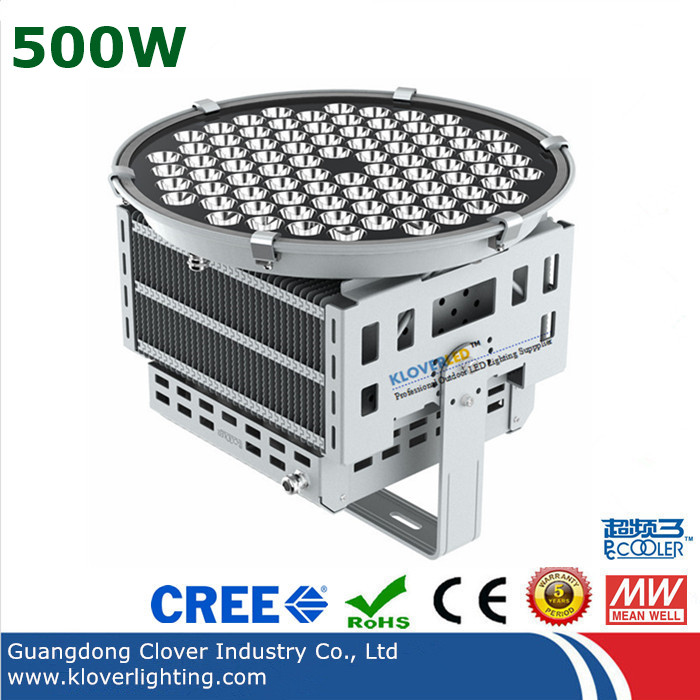

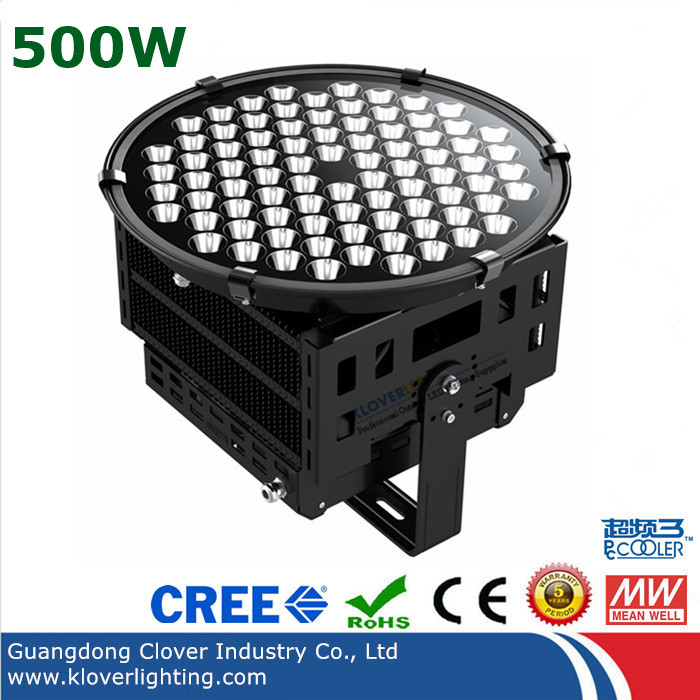

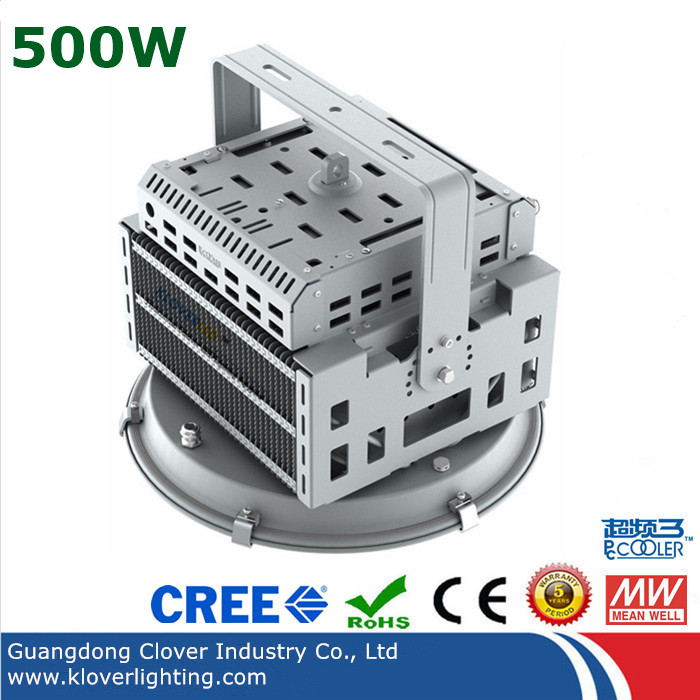

Cree chip meanwell driver 500W LED spotlights CREE XTE Meanwell driver LED flood lights 500W outdoor 500W LED spot flood lights

CREE XML Outdoor IP65 500W LED Spotlights with Meanwell Driver

Item Name: outdoor IP65 500W LED SpotLights

Model No.: CL-SP002F500-01

Total Lumen: >50,000lm, 100lm/w

Product Size: 479*390*320mm

LED Driver: Meanwell HLG

LED chips: 84pcs CREE XM-L2

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95 THD: <15%

IP rating: IP65 water proof

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

IP rating: IP65 can be installed outdoor

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

LED Flood Lights

Description

outdoor IP65 500W LED spotlightsCREE XML Outdoor IP65 500W LED Spotlights with Meanwell Driver

Model Number: CL-SP002F500-01

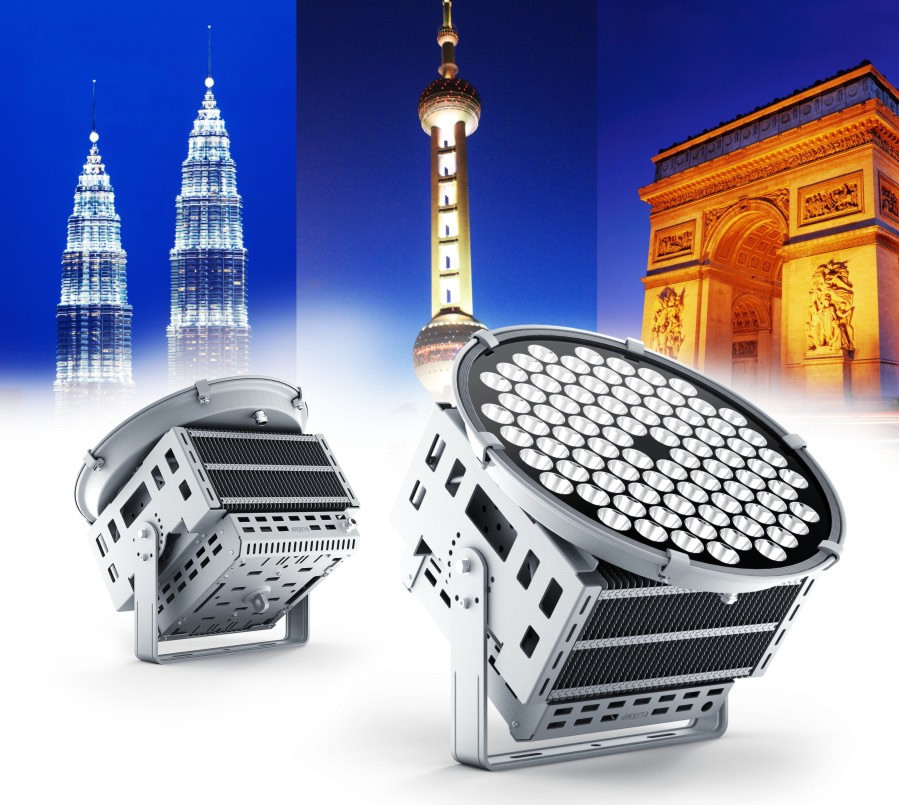

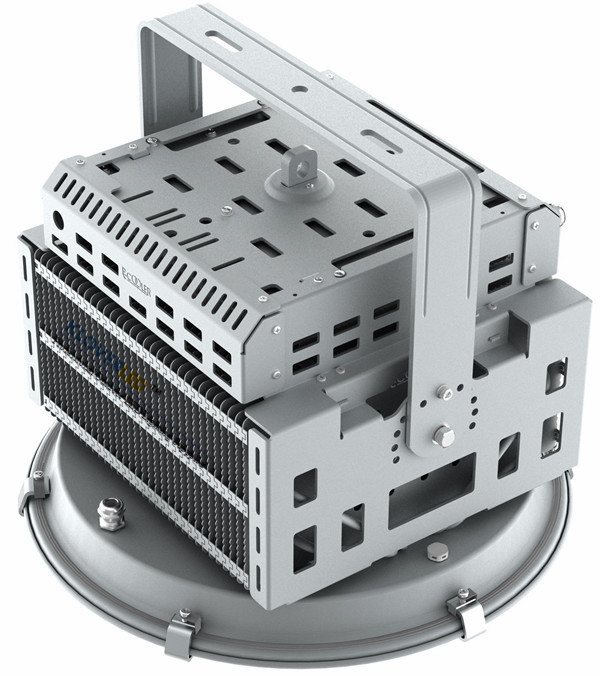

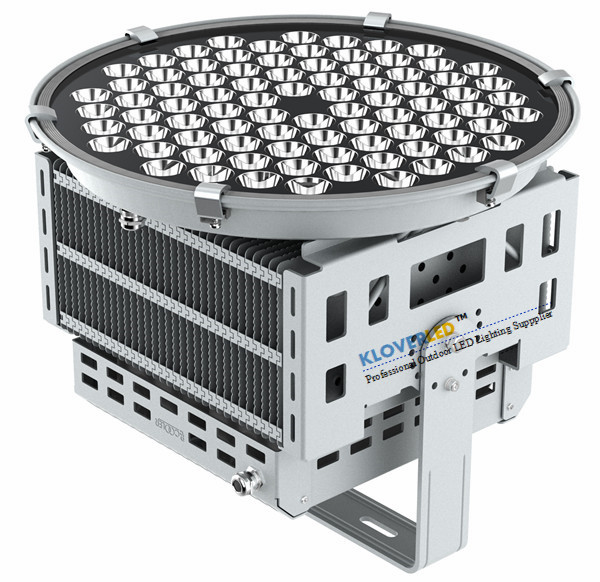

Outdoor IP65 500W LED flood lights  CREE chip meanwell driver 500w led flood lights

500W LED spotlights also available in black colr

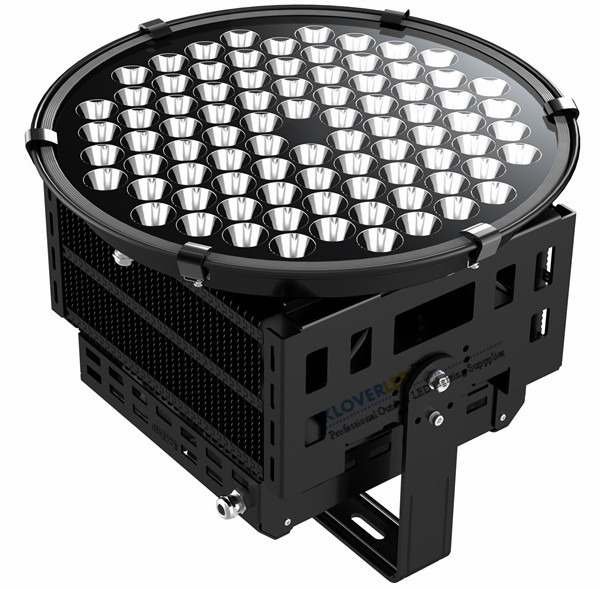

outdoor IP65 LED spotslights

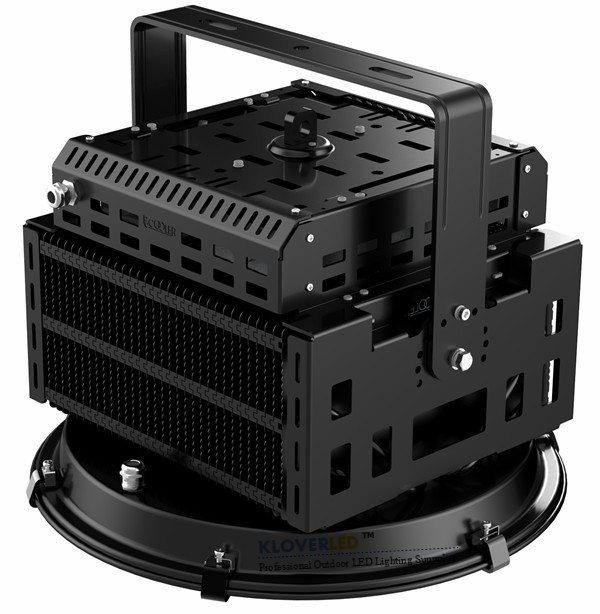

5 year warranty outdoor 500W LED spotlights

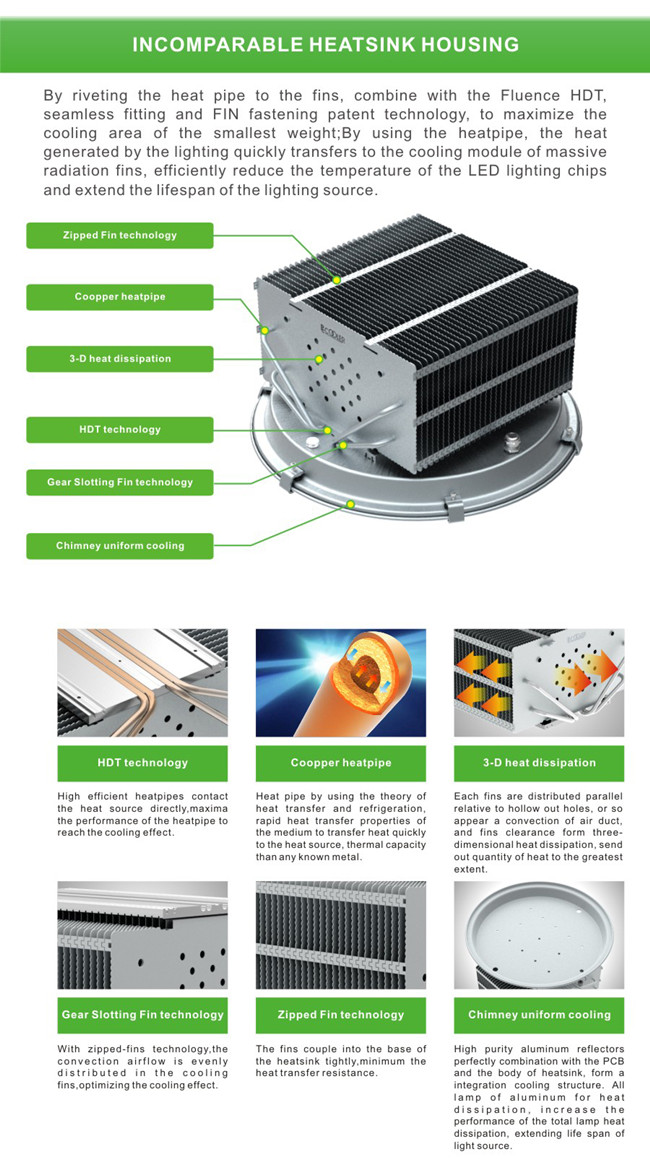

Coolin system for CREE XML Outdoor IP65 500W LED Spotlights with Meanwell Driver

cooling system for outdoor 500W LED spotlight

By using multi-fin design cooling system, with phrase change copper heatpipe technology, which is the latest technology in high power LED lighting heat management; multi-fin made from high purity 1070 aluminum alloy, largely increase the heat dissipation area, multi convenctional holes allow air flow for better bring down heat generated by high power LED chips; heat pipe made from copper, make the whole heat management system working more efficiently.

Light distribution curve for CREE XML Outdoor IP65 500W LED Spotlights with Meanwell Driver

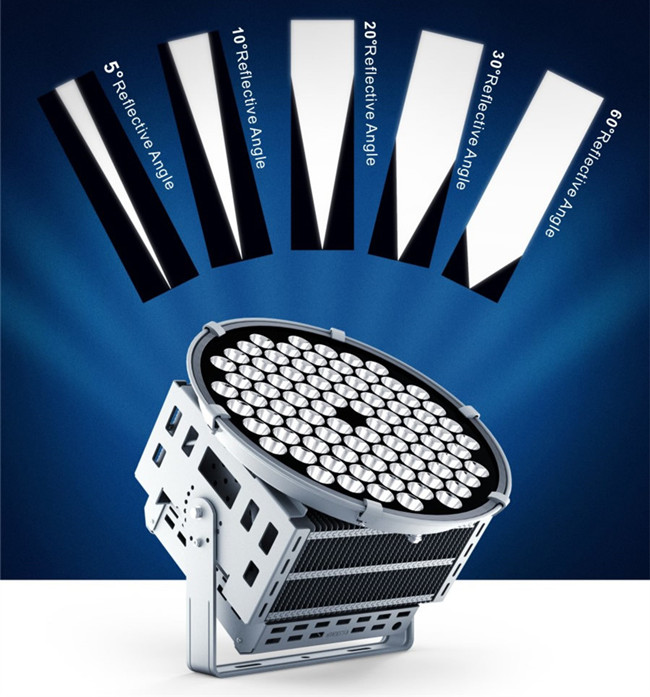

Professional optical design with 5°, 10°, 20°, 30°, 60° optional, with multi reflective cup, the lights is more evenly distributed, it is excellent idea for tall building lighting.

beam angle for 500W LED spotlights

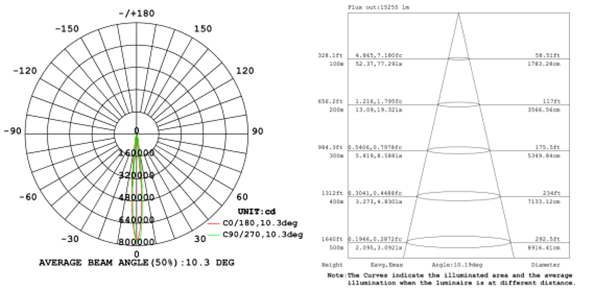

10 degree beam angle for CREE XML outdoor IP65 500W LED Spotlights Meanwell driver

10 degree beam angle for 500W spotlights

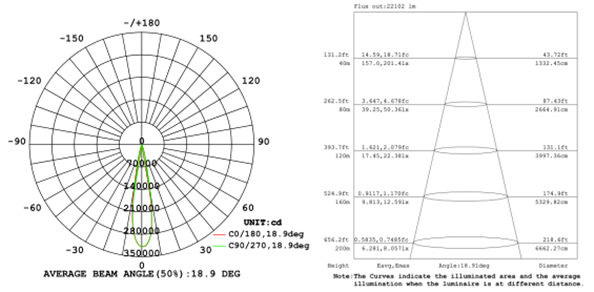

20 degree beam angle for CREE XML outdoor IP65 500W LED Spotlights Meanwell driver

20 degree beam angle for 500W spotlights

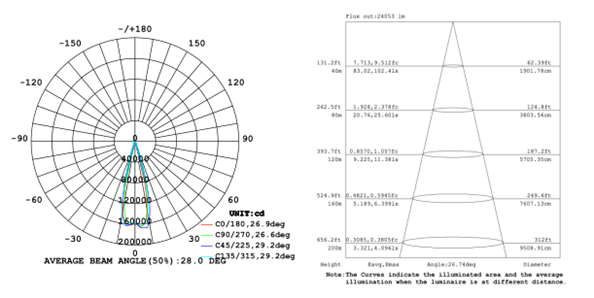

30 degree beam angle for CREE XML outdoor IP65 500W LED Spotlights Meanwell driver

30 degree beam angle for 500W spotlights

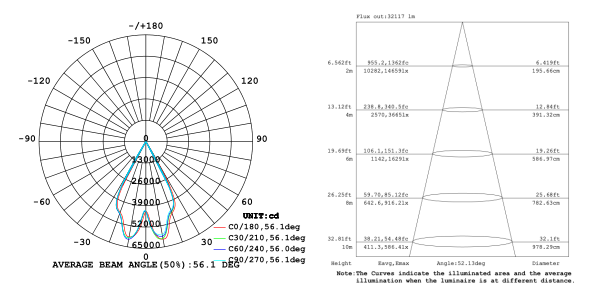

60 degree beam angle for CREE XML outdoor IP65 500W LED Spotlights Meanwell driver

60 degree beam angle for 500W spotlights

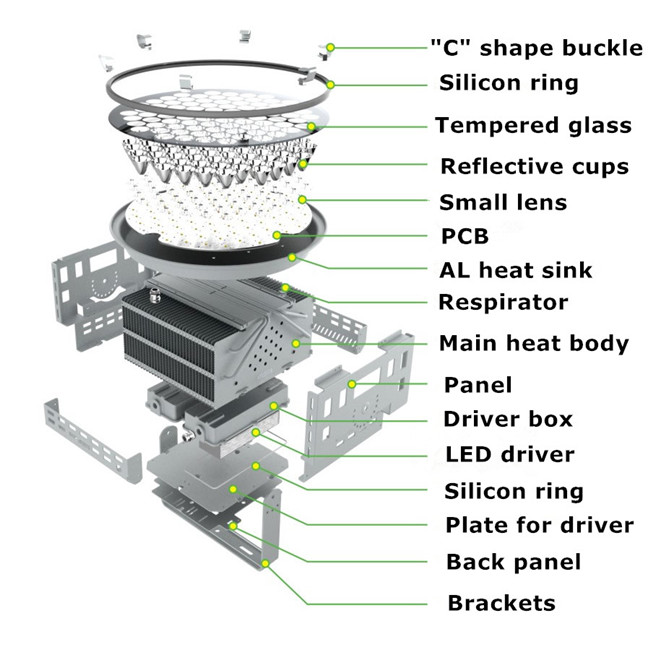

Products Breakdown for CREE XML Outdoor IP65 500W LED Spotlights with Meanwell Driver

Breakdown for IP65 500W LED spotlights

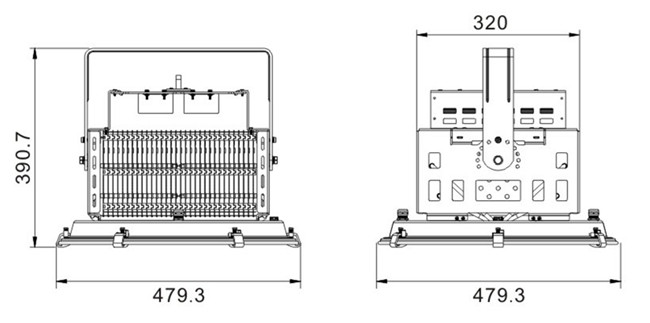

Size for CREE XML Outdoor IP65 500W LED Spotlights with Meanwell Driver

size for 500W LED spotlights

Specification for CREE XML Outdoor IP65 500W LED Spotlights with Meanwell Driver

Product name: 500W outdoor LED spotlights
Model No. CL-SP002F500-01
Power 500W
Input voltage AC90-295V, 50/60Hz
Power Factor > 0.97
THD <15%
Lightning protector 4KV or 10KV optional
IP Rating IP65
Lifespan >50000 hours
Technical  Parameters
Color Warm White Natural White Cool White
Color Temperature 2700-3200K 4000-5500K 5700-7000K
CRI RA>75, higher Ra optional
Light Efficiency 110-120lm/w
Beam angle 5°, 10°, 20°, 30°, 60°
Main components
LED chips 84pcs CREE XM-L2
LED driver Meanwell ELG/HLG, MOSO
Lamp body Aluminum with copper heat pipe
Body color Black or grey
Others
Operating Temperature -40℃  to  50℃
Storage Temperature -40℃  to  60℃
Warranty 5 years

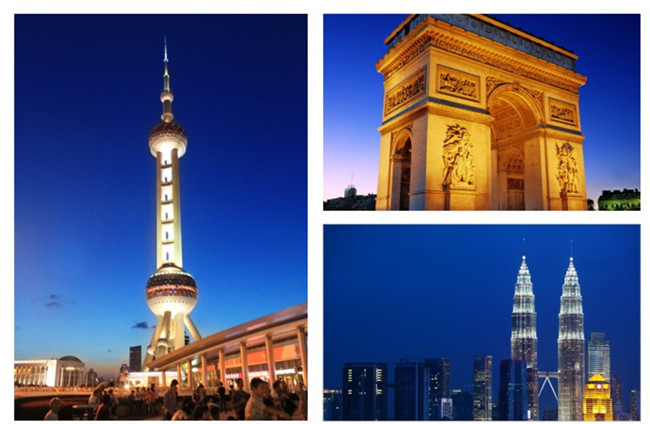

Application for CREE XML Outdoor IP65 500W LED Spotlights with Meanwell Driver

application for 500W LED spotlights
