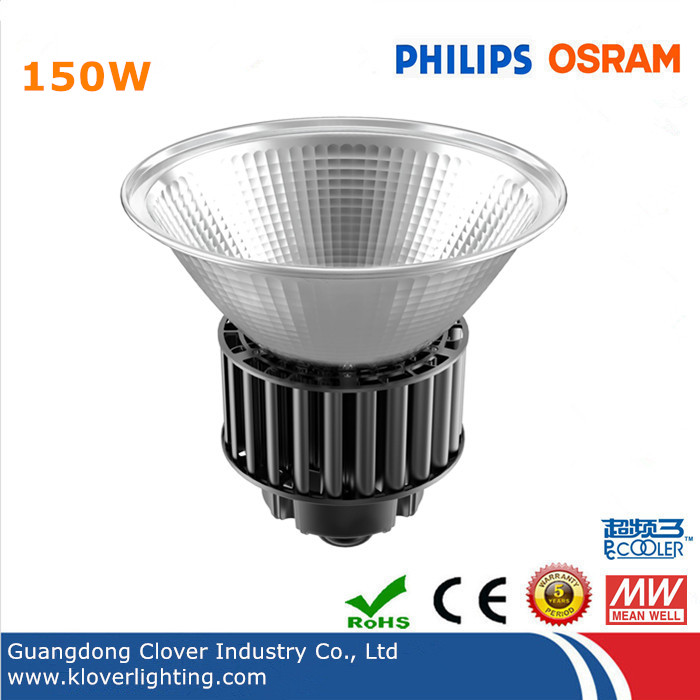

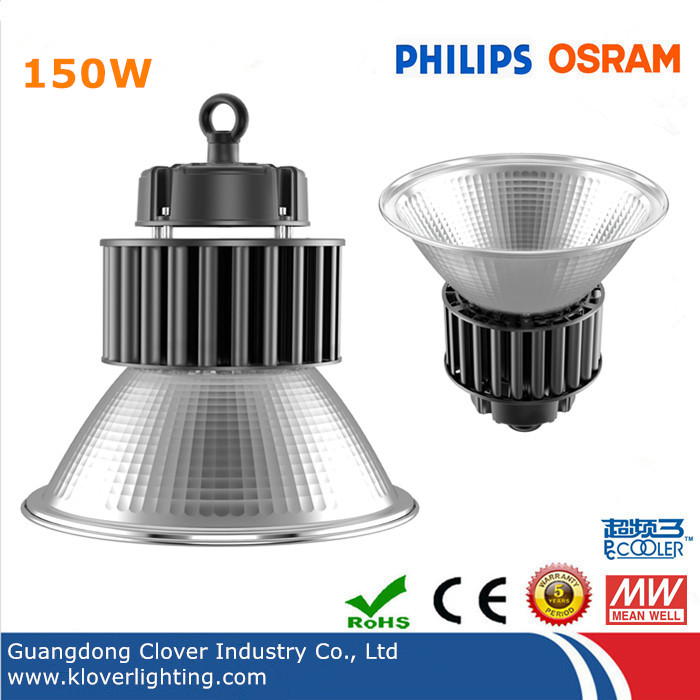

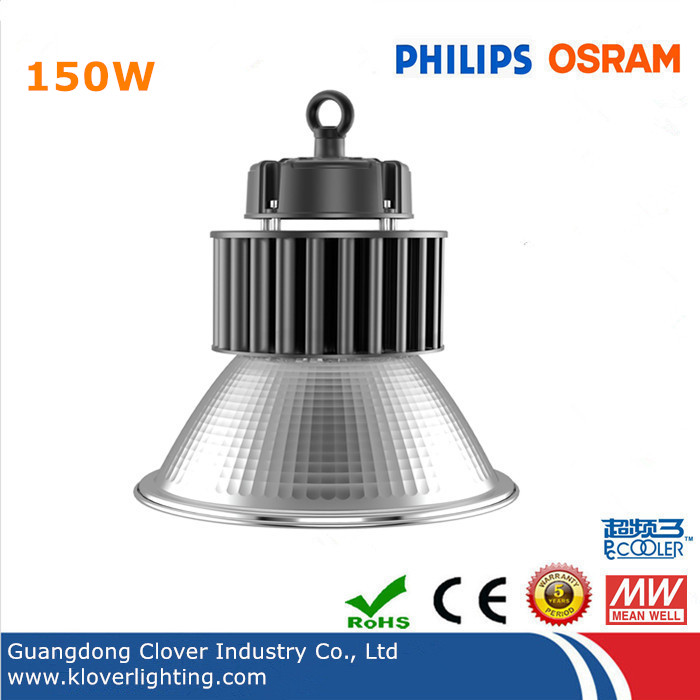

Item Name: 150W LED high bay lights
Model No.: CL-HBL001C150-01
Total Lumen: 18,000lm, 120lm/w
Product Size: Φ345.4*371.6 mm
LED Driver: Meanwell HLG or MOSO
LED chips: 170pcs Philips Lumileds 3030/Osram SMD3030
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95 THD: <15% Ra: >80
IP rating: IP44
Color Temperature: 2700-6500K optional
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
Item Number: CL-HBL001C150-01

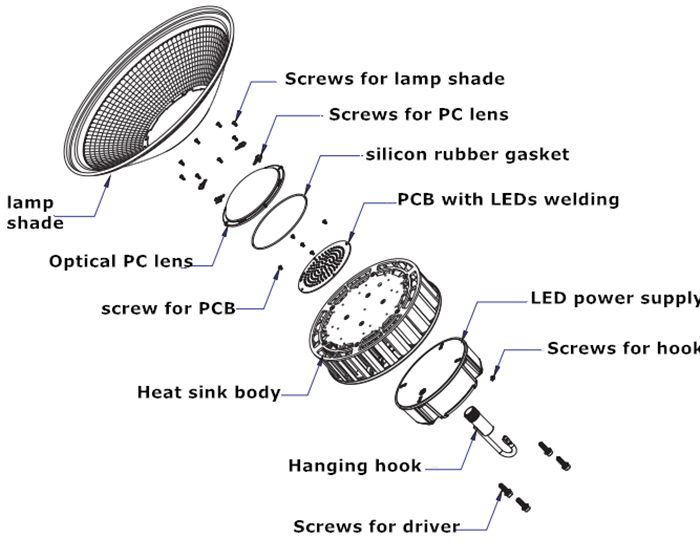

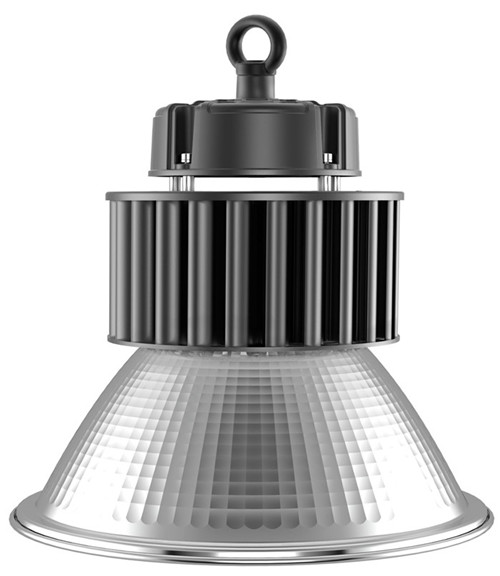

Product breakdown for Facotry wholesale 5 year warranty 150W LED high bay light
The main components for 150W LED high bay lights

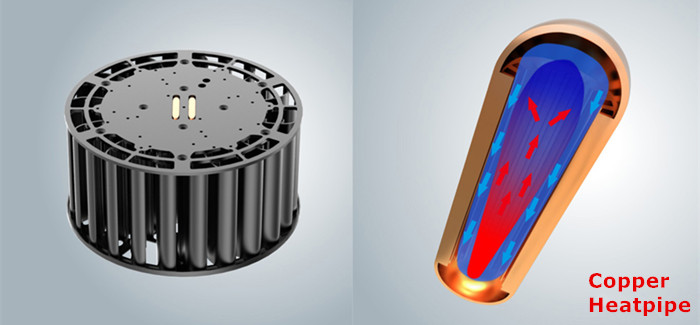

✓ HDT & Phrase change technology, the copper heatpipe aluminum radiator is 200 time heat dissipation than aluminum radiator.
✓ Lamp reflector adopt high purity aluminum alloy, with flake design for more light transimission.
✓ Osram 3030 or Philips 3030 LED chips, LM-80 rated, Ra>80, 120lm/w, low light decline, save 70% energy more than traditional HPS or Metal Halide high bay lights
✓ PC lamp shade, clear and frosted optional, resist high temperature, never yellowish
✓ CE, TUV, VDE UL listed power cable, 304 stainless steel screws
✓ Meanwell HBG, MOSO or SOSEN LED driver optional, high PF>0.95, with stable performance.
Features for Factory wholesale 5 year warranty 150W LED high bay lights

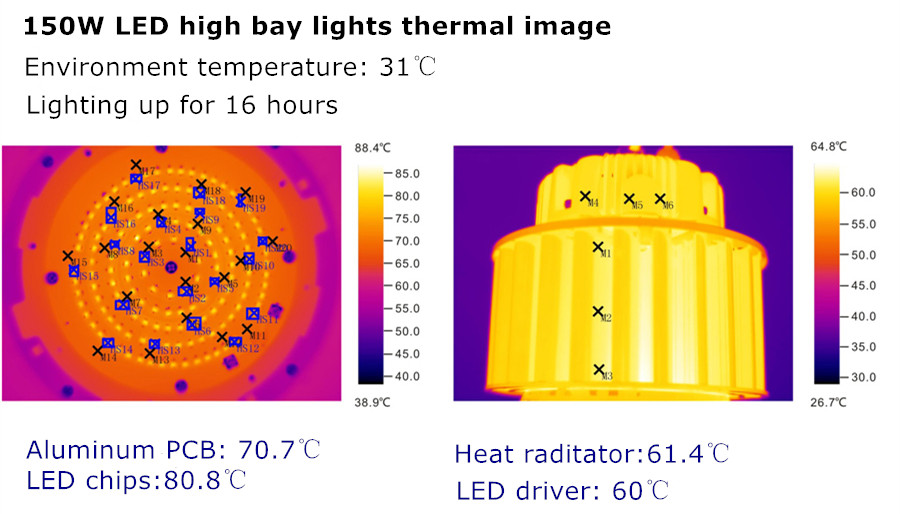

✓ Quick heat dissipation, cool down the lamp body quickly and efficiently.
✓ Fish scale design for reflactor, the light is more smoothly transimitted, and more utilization of light.
✓ Soft light, no light pollution, anti-glare, UGR<19
✓ Super bright, luminaire efficiency reach 120lm/w(150lm/w optional), save up to 70% more energy than traditional HPS or metal halide high bay light.

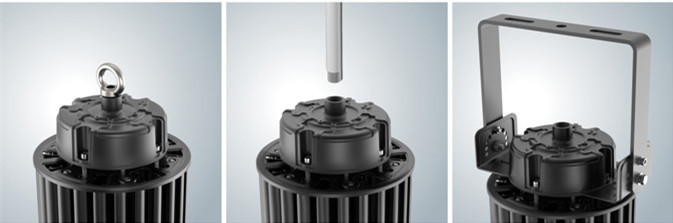

✓ Multi-installation way, can be tube with screw thread mount, or steel hook, or adjustable bracket mounting.
✓ Environmental friendly, no harmful substances like mercury or lead, all materials can be re-cycled.
✓ Stable performance, free of maintenane or replacement.
✓ Comply with EU, AU, US quality standards.
✓ 5 years warranty, can last for over 10 years, everage light decline 1-2% per year.

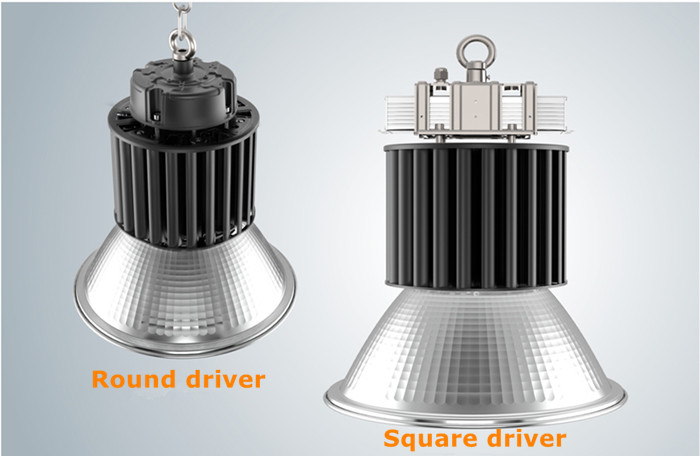

✓ Two kind of driver, round or square one optional. Square one is more cost effective

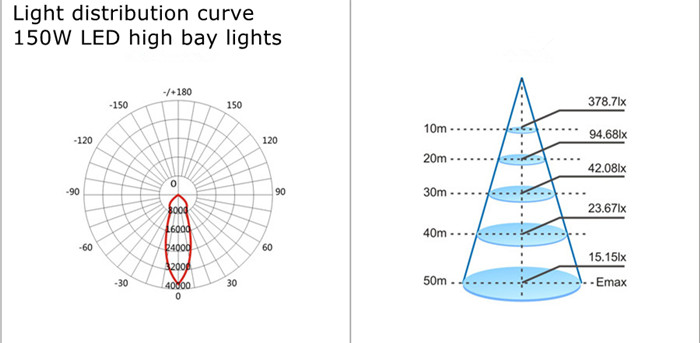

The Light distribution curve for Factory wholesale 150W LED high bay light

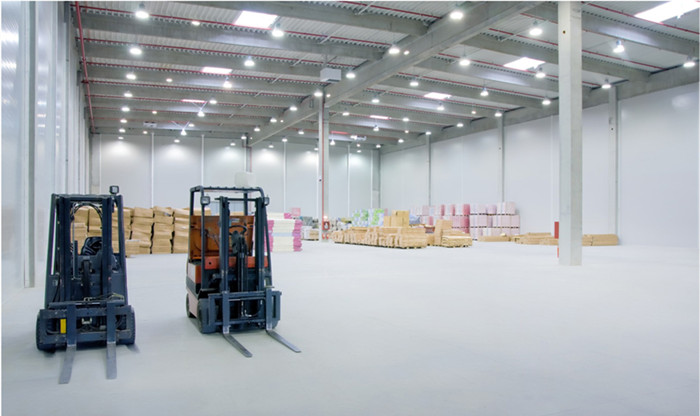

The application for Factory wholesale 150W LED high bay light
✓ To replace traditional HPS or metal halide light directly.
✓ In indoor big area lighting like factory, packing lot, working facilities, library, gyms, supermarket, warehouse
logistic center.,etc.
The full series of this LED high bay light, HBL001 series
| Item Name | 60W, 100W, 150W, 200W LED High Bay Light | |||
| Model No. | CL-HBL001A60-01 | CL-HBL001B100-01 | CL-HBL001C150-01 | CL-HBL001D200-01 |
| Power | 60W | 100W | 150W | 200W |
| Total Lumen | 7,200lm | 12,000lm | 18,000lm | 24,000lm |
| Product Size(mm) | Φ345.4*321.6 | Φ345.4*341.6 | Φ345.4*371.6 | Φ345.4*421.6 |
| Beam Angle | 25°, 60°, 90°, 100°, 110° optional | |||
| Input Voltage | AC85-265V 50/60HZ | |||
| Power Factor | > 0.95 | |||
| THD | <15% | |||
| Lightning Protection | 6KV or 10KV optional | |||
| CCT | 3000-6500K | |||
| CRI | >75 | |||
| Luminare Efficiency | >120lm/w; 150lm/w optional | |||
| IP Rating | IP44 | |||
| LED Driver | Meanwell HBG/MOSO | |||
| LED Chips | Philips Lumileds Luxeon 2D 3030/Osram 3030 | |||
| LED Qty | 60pcs | 100pcs | 170pcs | 220pcs |
| Warranty | 5 Years | |||
