Item Name: 90W integrated solar street light
Item No.: CL-SSL08132-90W
Total Lumen: 90W 90,00lm;
Luminaire Efficiency: 100lm/w;

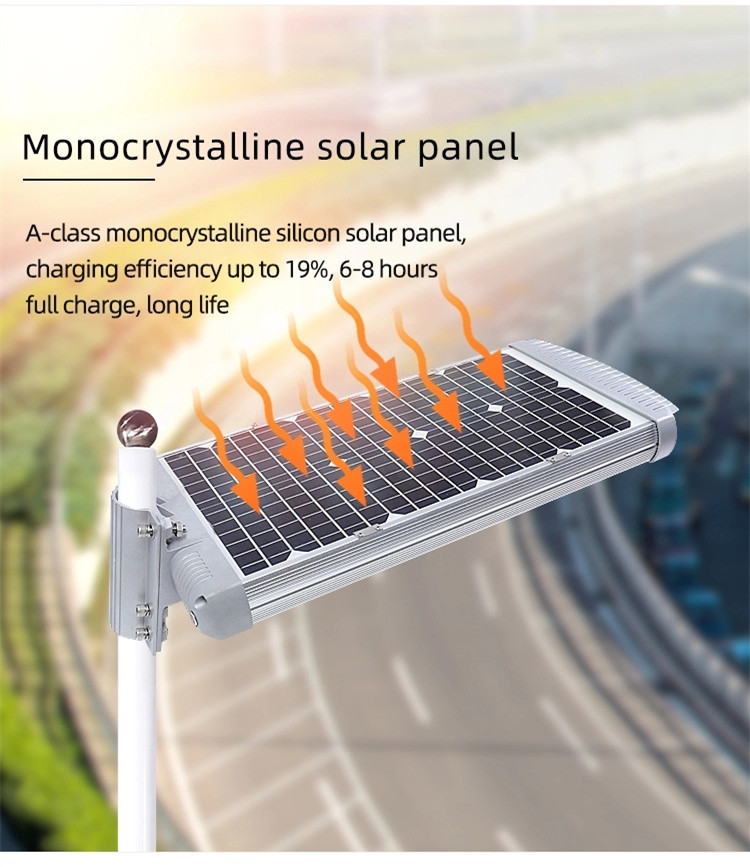

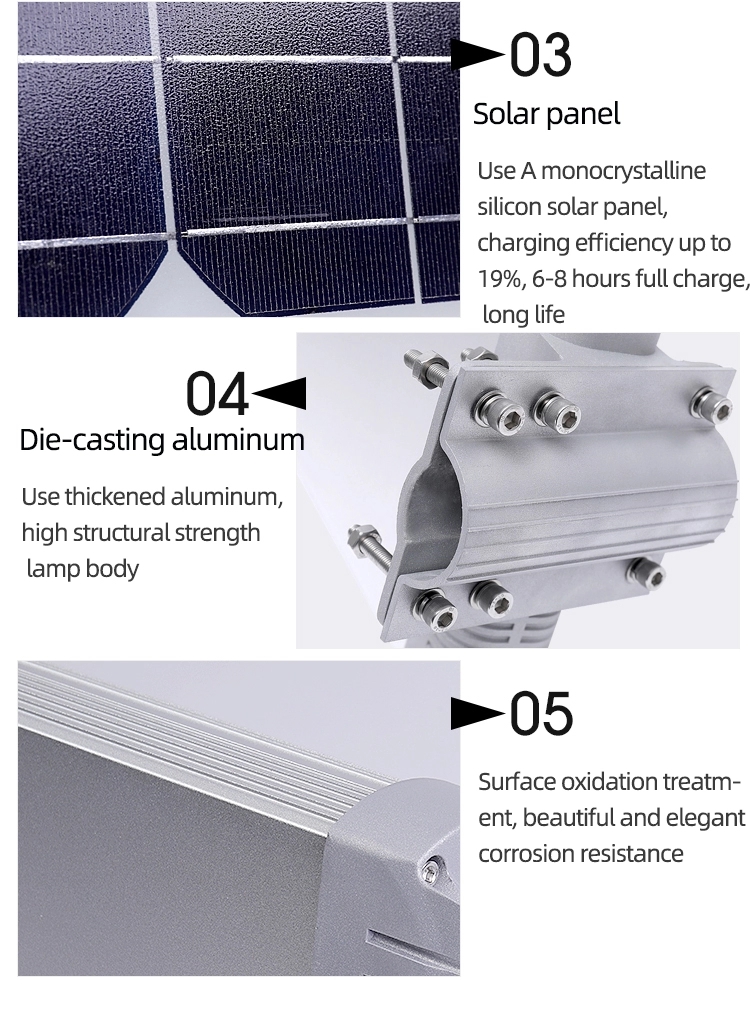

Solar panel: 12.8V 40W Mono-crystalline
Battery: LiFePo4 12.8V 18Ah
LED chips: Philips/CREE 3030 90PCS
Beam Angle: 120°
IP rating: IP65
Material: Die-casting aluminum alloy
Color Temperature: 6000-6500K(customize optional)
Color Rending Index: Ra>70
Lifespan: >50,000 Hours
Warranty: 3 Years
High Lumen 90W Integrated Solar LED Street Light with Philips Lumileds Chips
| Model No. | Rated Power | Product size(mm) | LED chips | Solar panel | Battery |
| CL-SSL08132-30W | 30W | 834*215*143 | 30pcs CREE/Philips 3030 | Mono-crystalline 18V 20W | LiFePo4 12.8V 6Ah |
| CL-SSL08132-60W | 60W | 1160*215*143 | 60pcs CREE/Philips 3030 | Mono-crystalline 18V 30W | LiFePo4 12.8V 12Ah |
| CL-SSL08132-90W | 90W | 1590*215*60 | 90pcs CREE/Philips 3030 | Mono-crystalline 18V 40W | LiFePo4 12.8V 18Ah |
| CL-SSL08132-120W | 120W | 1890*215*60 | 120pcs CREE/Philips 3030 | Mono-crystalline 18V 50W | LiFePo4 12.8V 24Ah |
High Lumen 90W Integrated Solar LED Street Light with Philips Lumileds Chips, LiFePo4 battery, PIR sensor.
1. Heavy die-casting aluminum alloy end caps, extra strong design.
2. Much more LED chips than rated power to achieve high lumen output
3. Brand new A1 type LiFePo4 battery, not recycled type.

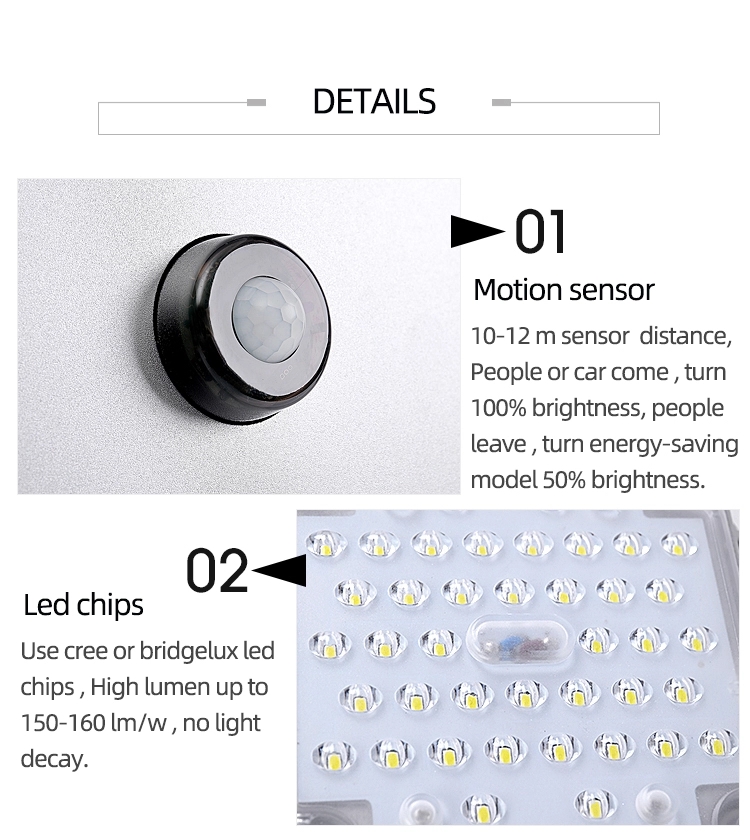

4. Equipped with Radar/PIR sensor, 100% brightness+50% brightness, or 100% brightness+30% brightness working.
5. Charging time 6-8hours, discharge time over 36 hours.
6. Regular lens and optical lens available, for load lighting use bat-wing light distribution curve lens; For courtyard lighting, 140 degree lens for larger area lighting.
Item number:
CL-SS08132-**W-A “A” stand for 140 degree beam angle.
CL-SS08132-**W-B “B” stand for bat-wing light distribution curve.
| Product Name | 30W solar street light | 60W solar street light | 90W solar street light | 120W solar street light |
| Model Number | CL-SSL08132-30W | CL-SSL08132-60W | CL-SSL08132-90W | CL-SSL08132-120W |
| Rated Power | 30W | 60W | 90W | 120W |
| Product Size(mm) | 834*215*143 | 1160*215*143 | 1590*215*60 | 1890*215*60 |
| Beam Angle | 140 degree | |||
| LED Controller | SRNE, Depower or Remote power | |||
| LED Chips | CREE 3030 | |||
| LED Quantity | 30pcs CREE 3030 | 60pcs CREE 3030 | 90pcs CREE/Philips 3030 | 120pcs CREE 3030 |
| Luminaire Effciency | 130-140lm/w | |||
| Solar panel | Mono-crystalline 18V 20W | Mono-crystalline 18V 30W | Mono-crystalline 18V 40W | Mono-crystalline 18V 50W |
| Battery | LiFePo4 12.8V 6Ah | LiFePo4 12.8V 12Ah | LiFePo4 12.8V 18Ah | LiFePo4 12.8V 24Ah |
| Charging time | 6-8 hours | |||
| Discharge time | >24 hours | |||
| Installation height | 3-4m | 3-4m | 4-5m | 5-6m |
| Light Color | Warm White/Natural White/Cool White | |||
| Color Temperature | 2700-3300K/4000-4500K/6000-6500K | |||
| CRI | Ra>80, higher CRI available | |||
| UGR | <19 | |||
| IP Rating | IP65 | |||
| Working Temp | -30ºC To 60ºC | |||
| Material | aluminum alloy | |||
| Lifespan | >50,000 hours | |||
| Warranty | 3 years | |||

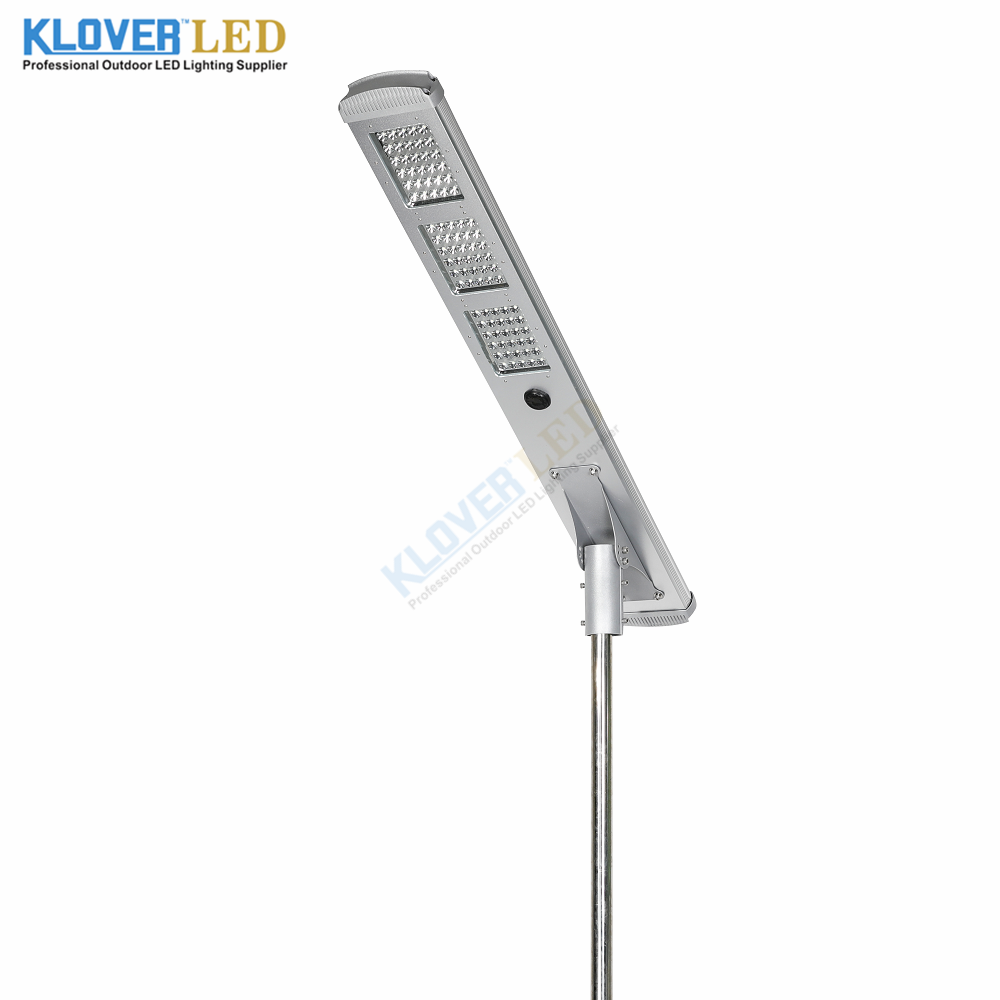

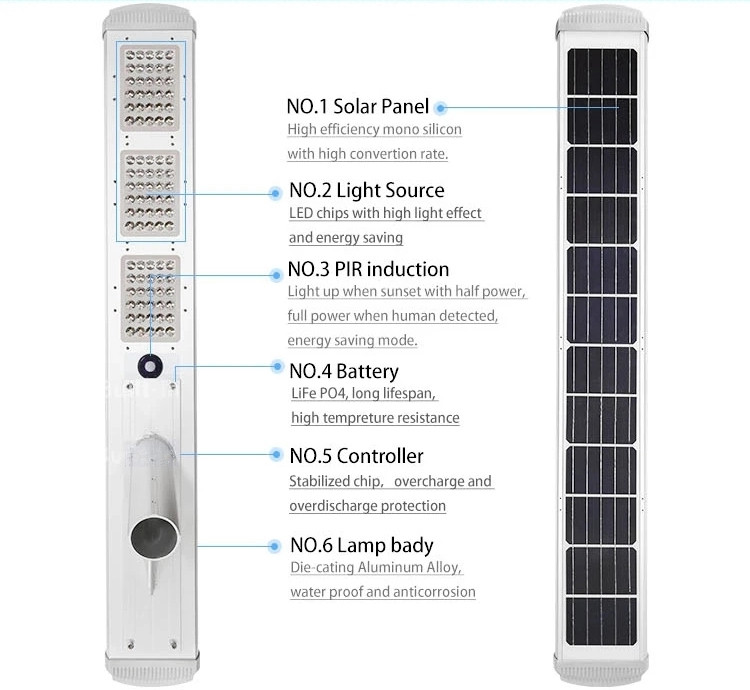

PIR sensor high lumen 90W integrated solar street light
PIR sensor high lumen 90W integrated solar street light

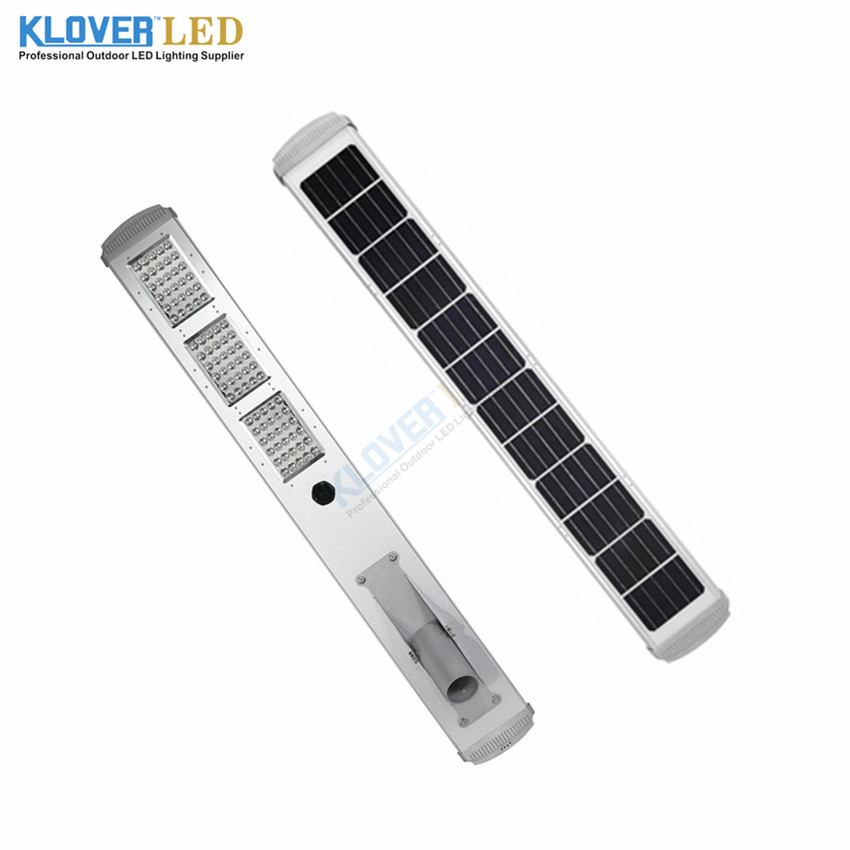

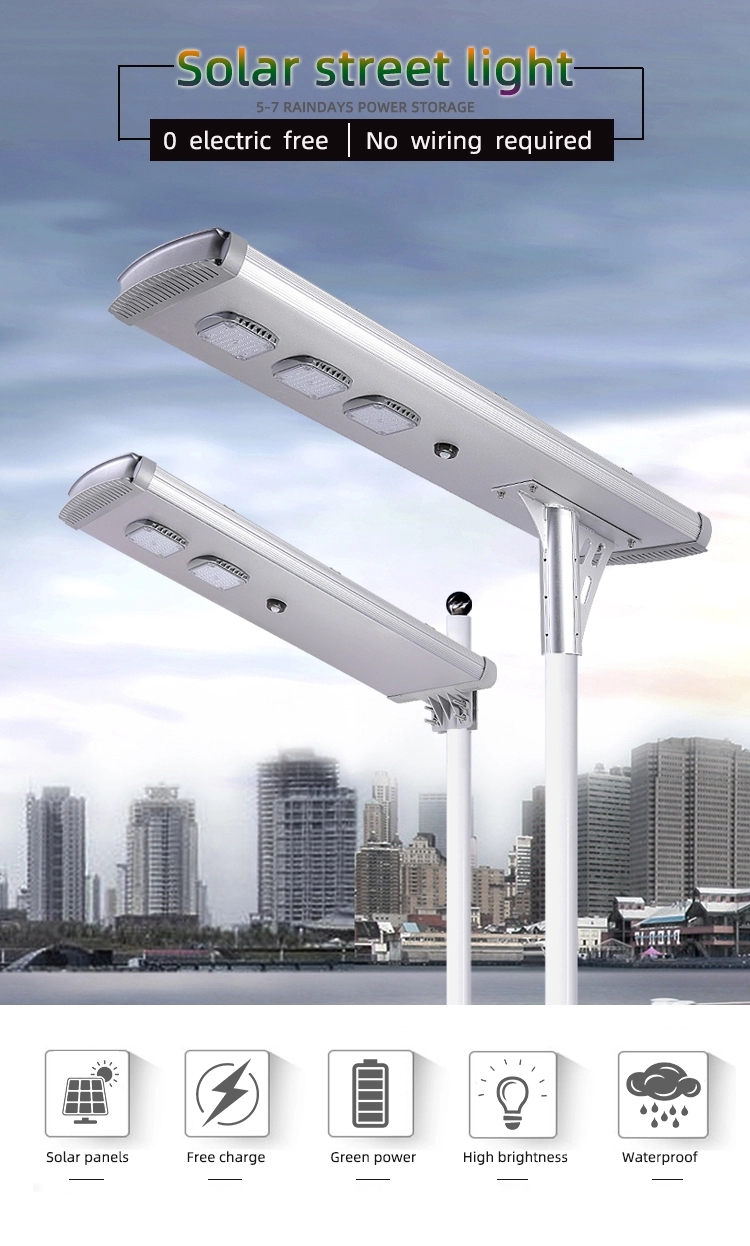

Integrated all in one solar street light, 30/60/90/120W available

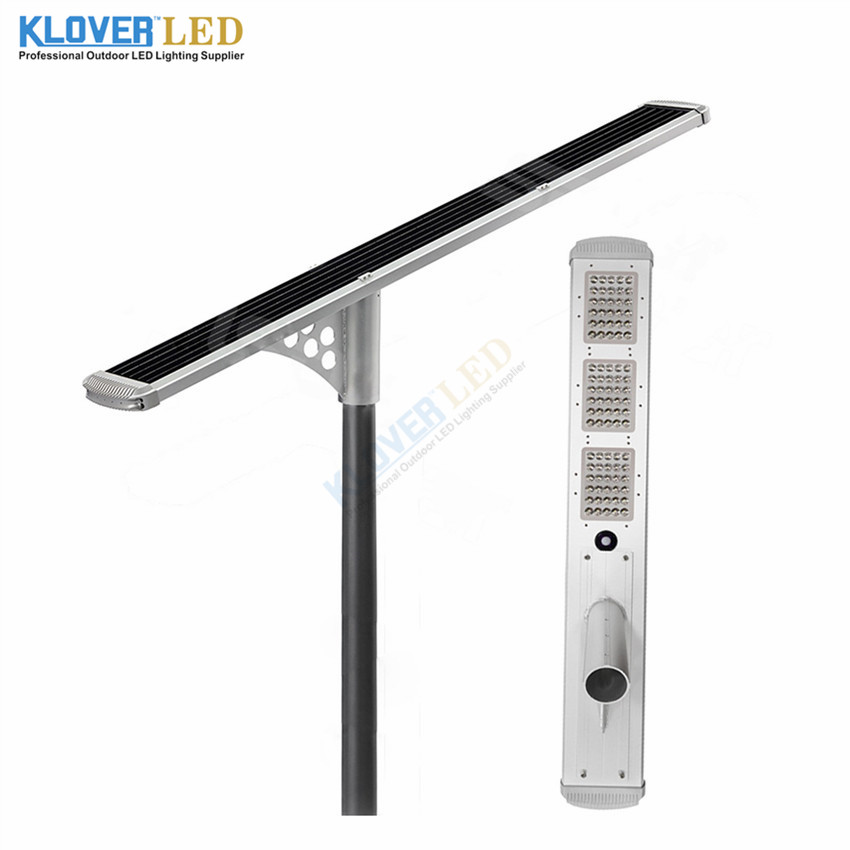

solar powered high lumen 90W integrated solar street light

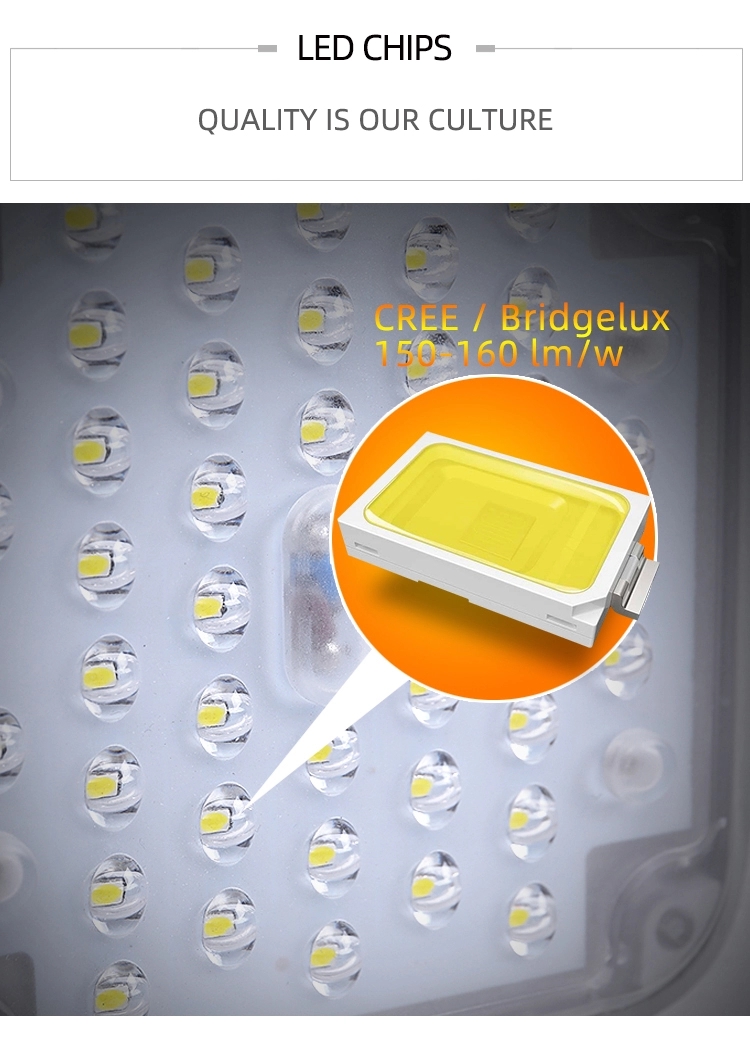

Philips Lumileds 3030 chip for integrated solar street light
PIR sensor high lumen 90W integrated solar street light, LiFePo4 battery, lifespan double than Lithium-ion battery, never explosion, resist extremely high temperature.
PIR sensor high lumen 90W integrated solar street light
PIR sensor high lumen 90W integrated solar street light
