[caption id="attachment_583" align="alignnone" width="700"]

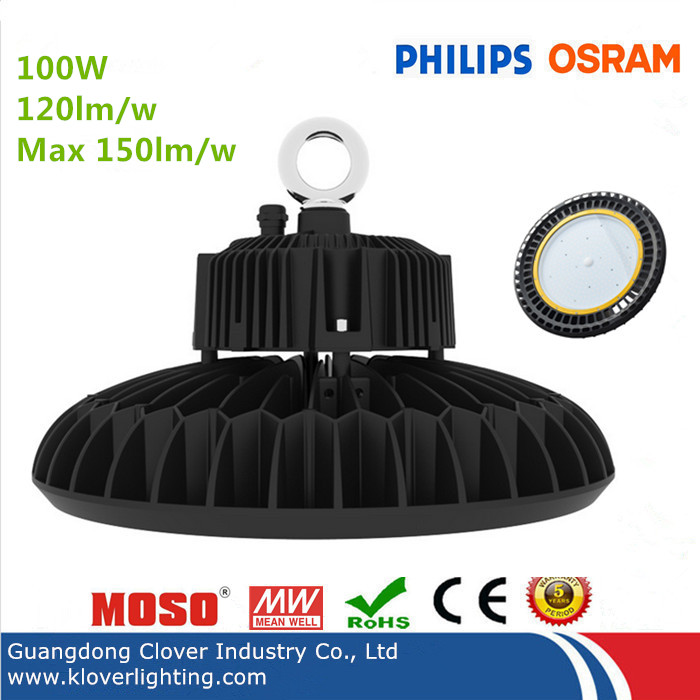

Osram 3030 100W UFO LED high bay light, Meawell driver[/caption]
Item Name: 100W UFO LED High Bay Light
Model No.: CL-UFO002A100-1
Total Lumen: 12,000lm
Product Size: Φ280*185 mm
LED Driver: Meanwell or Moso
LED chips: 126pcs SMD Philips or Osram 3030
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95 THD: <15%
IP rating: IP65 water proof
Color Temperature: 2700-6500K optional
Color Rending Index: Ra>80
IP rating: IP65 can be installed outdoor
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
Item Name: Hot selling IP65 100W UFO LED high bay lights
Model Number: CL-UFO002A100-1
Features for 100W UFO LED high bay lights
This series of Klover™ UFO LED High Bay Lights is manufactured with the most advanced LED technology, it is perfect solution for all kinds of industrial applications. These lights have superior luminescence, high power efficiency and excellent heat dissipation, equiped with optically designed lamp shade give better brigtness to the area that need higher brightness. Due to the extra-ordinary high quality of UFO LED high bay lights, this makes them an excellent solution large indoor and outdoor large area lighting purpose, such as warehouses, manufacturing center, library, logstic centers; The rated life our UFO high bay light is up to 50,000 hours, it means there will be free of maintenance or replacement for over ten years even light up 12 hours per day. Be confident cooperate with us on our high quality UFO LED high bay lights for your lighting solutions
✓ High luminosity, up to 150lm/w
✓ Rated lifespan up to 50,000 hours
✓ Top quality brand Meanwell or Moso LED drivers
✓ LM-80 listed Osram 3030, or Philips Lumileds Luxeon 2D 3030 LED chips
✓ High purity die-casting aluminum alloy, extending product lifespan, explosion proof
✓ Low power consumption, save up to 80% more than traditional Metal Halide or HPS lighting
✓ High quality fixtures, 304 stainless steel, UL, TUV, CE listed power wires endure high temperature.
✓ Complies with EU, UN, AU quality standards.

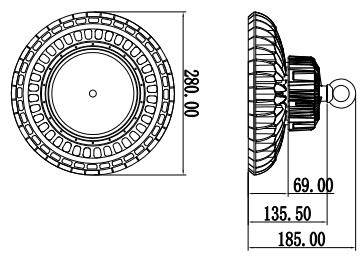

Product size for 100W UFO LED high bay lights

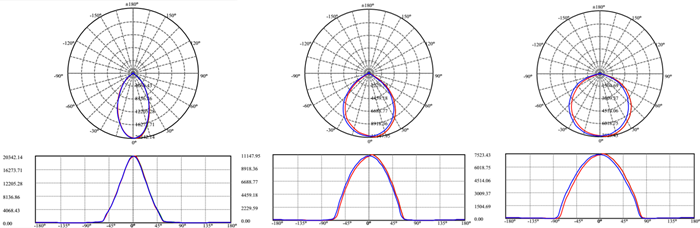

The light distribution curve for 100W,150W, 200W UFO LED high bay lights
with beam angle of 60, 90, 120 degree

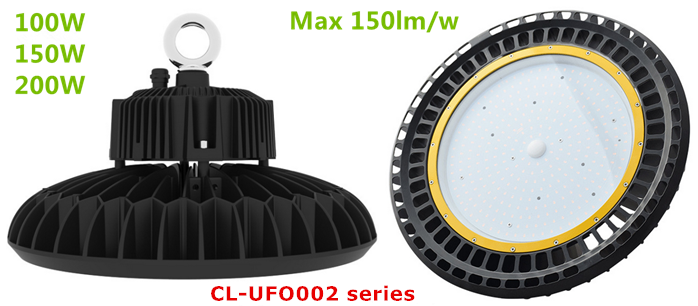

Other options except 100W UFO LED high bay lights
| Item Name | 100W, 150W, 200W UFO LED High Bay Light | ||
| Model No. | CL-UFO002A100-1 | CL-UFO002B150-1 | CL-UFO002C200-1 |
| Power | 100W | 150W | 200W |
| Total Lumen | 12,000lm | 18,000lm | 24,000lm |
| Product Size(mm) | Φ280*185 | Φ340*187 | Φ400*196.5 |
| Packing Size | 320*320*210 | 385*385*195 | 460*460*210 |
| Input Voltage | AC85-265V 50/60HZ | ||
| Power Factor | > 0.95 | ||
| THD | <15% | ||
| Lightning Protection | 6KV or 10KV optional | ||
| CCT | 3000-6500K | ||
| CRI | >75 | ||
| Luminare Efficiency | >120lm/w; 150lm/w optional | ||
| IP Rating | IP65 | ||
| LED Driver | Meanwell/MOSO | ||
| LED Chips | Philips Lumileds Luxeon 2D 3030/Osram 3030 | ||
| LED Quantity | 126pcs | 182pcs | 238pcs |
| Warranty | 5 Years | ||

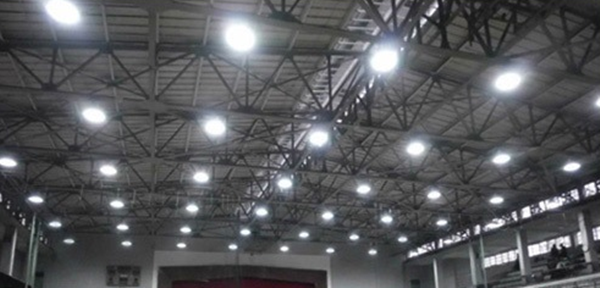

Application for 100W UFO LED high bay lights
CL-UFO002 series LED high bay light(100W, 150W, 200W optional), is widely used for indoor or outdoor lighting purpose, like arena, sports stadium lighting, labrary, warehouse, logistic centers, manufacturing facilities.,etc.
