IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

Home LED High Bay Lights IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

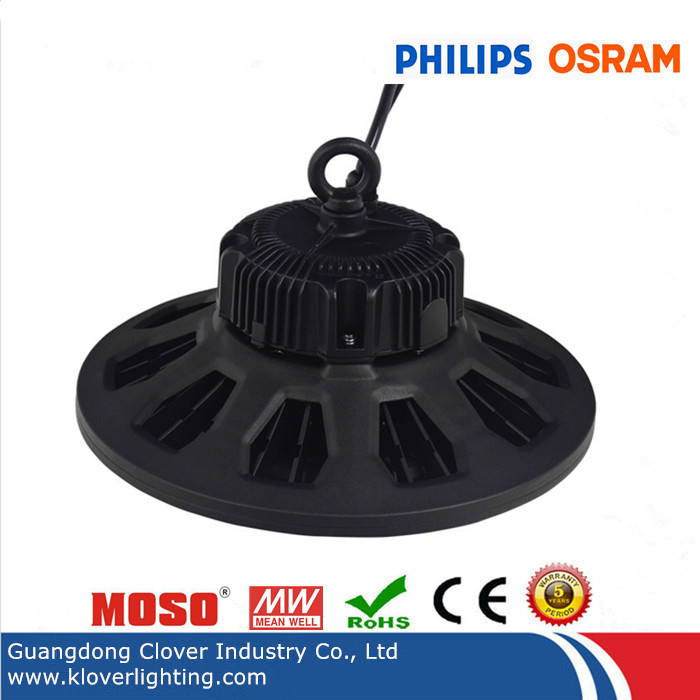

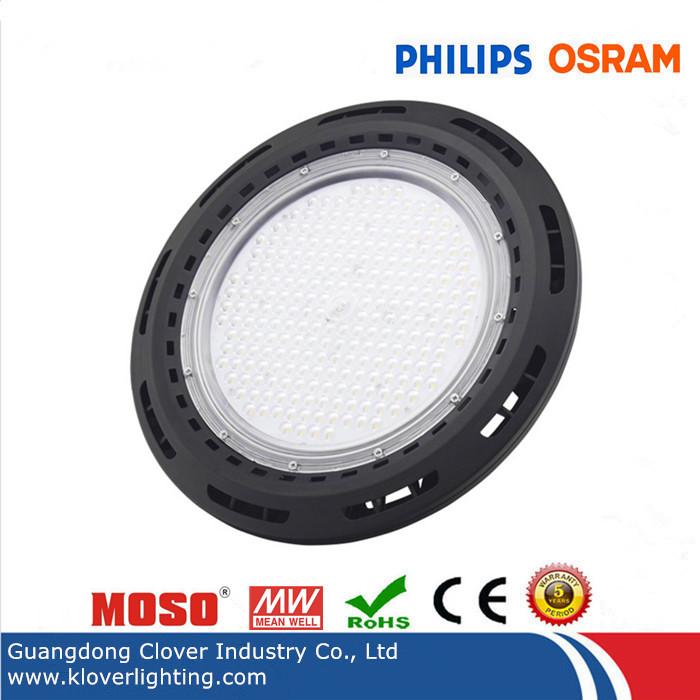

[caption id="attachment_678" align="alignnone" width="700"]New design Osram 3030 150W UFO LED high bay light New design Osram 3030 150W UFO LED high bay light[/caption][caption id="attachment_679" align="alignnone" width="700"]Osram 3030 150W UFO LED high bay lights Osram 3030 150W UFO LED high bay lights[/caption]

IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

Item Name: New Design 150W UFO LED High Bay Light

Model No.: CL-HB0617-150W

Total Lumen: 18,000lm

Product Size: Φ325*187.5mm

LED Driver: Meanwell or Moso

LED chips: 196pcs SMD Philips or Osram 3030

Input voltage: AC100-305V 50/60HZ

Power Factor: >0.95    THD: <10%

IP rating: IP65 water proof

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>70

IP rating: IP65 can be installed outdoor

Certifications: CE, RoHs, CB, SAA, TUV

Warranty: 5 Years

LED High Bay Lights

Description

Find Klover more top selling UFO high bay light by click below photos

Product name: IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

Item number: CL-HB0617-1

Product pictures:

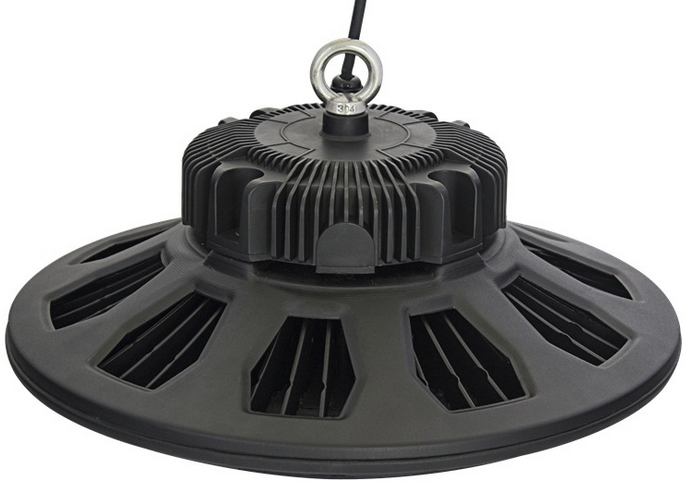

150W UFO LED high bay lights

Waterproof IP65 150W UFO LED high bay lights with Meanwell driver

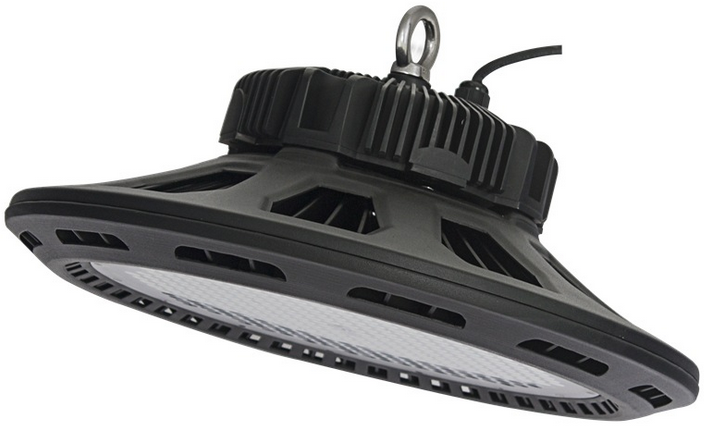

new design 150W UFO LED high bay lights

new design 150W UFO LED high bay lights with Meanwell driver

Features for IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

✓ Excellent heat dissipation, for we are using stamped 1060 high purity aluminum alloy, heat conductivity reach 220W/m.K, the temperature rise is within 30°.

✓ Equipped with extra security steel rope, more safety.

✓  Water proof IP65 design, can be used in indoor our outdoor facilities.

✓  Anti-glare, soft light, no light pollution, professional designed optical lens with UGR<19.

✓  Top quality LED driver, Meanwell HBG or MOSO, with CE, CB, SAA, TUV, FCC, C-Tick.,etc.

✓  Top quality LED chips, Osram 3030 or Philips Lumileds Luxeon 3030, or Nichia 3030 LED chips, LM-80 listed.

✓  Long lifespan up to 50,000 hours, low light decline

✓  Comply with CE, RoHs, TUV, CB, SAA, TUV, UL.,etc.

✓  5 Years warranty, can be used for over 8 years without replacement nor maintenance, 150W can be used to replace 400-500W metal halide or HPS high bay light with more energy saved.

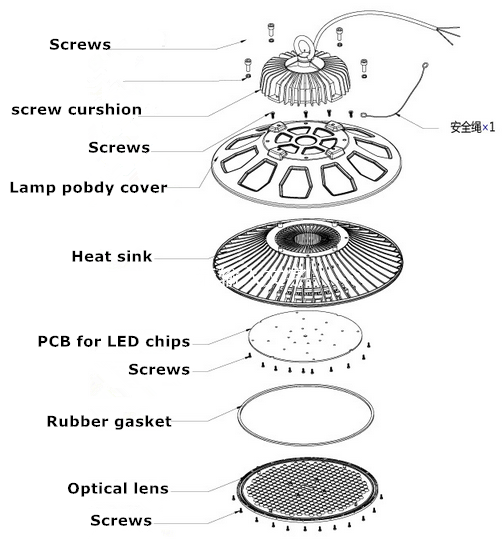

Product structure for IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

product breakdown for new design 150W UFO LED high bay lights

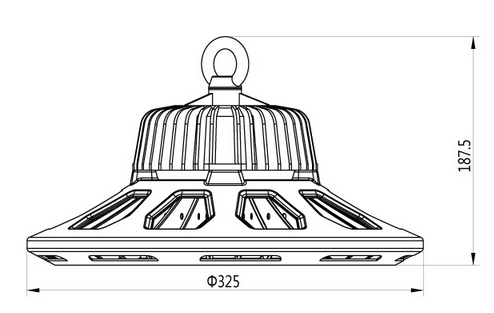

Product size for IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

Products parameters for IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

Item Name New design 150W UFO LED high bay light
Model No. CL-HB0617-150W
Power 150W
Total Lumen 18,000lm
Product Size(mm) Φ325*187.5
LED Qty 196pcs
LED Driver Meanwell HBG/MOSO
LED Chips Philips Lumileds Luxeon 2D 3030/Osram 3030
Input Voltage AC85-265V  50/60HZ
Power Factor > 0.95
THD <15%
Lightning Protection 6KV or 10KV optional
CCT 3000-6500K
CRI >75
Luminare Efficiency >110lm/w; 150lm/w optional
IP Rating IP65
Warranty 5 Years

Application for IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

✓  Warehouse lighting

✓  Manufacturing facilities, industrial plants.

✓  Sports/Arena area lighting

✓  reading purpose, like library, school, study area, lecture hall lighting, Cinema lighting.

✓  Outdoor lighting

✓  Logistic center, shipyard lighting, car-parking lot lighting.,etc.



Full series for HB0617 series UFO LED high bay lights with Meanwell driver

HB0617 Series UFO LED high bays is available in 100W, 120W, 150W, 200W and 240W.

120lm/w, Max 150lm/w, with Meanwell or MOSO LED driver, 5 years warranty.

IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

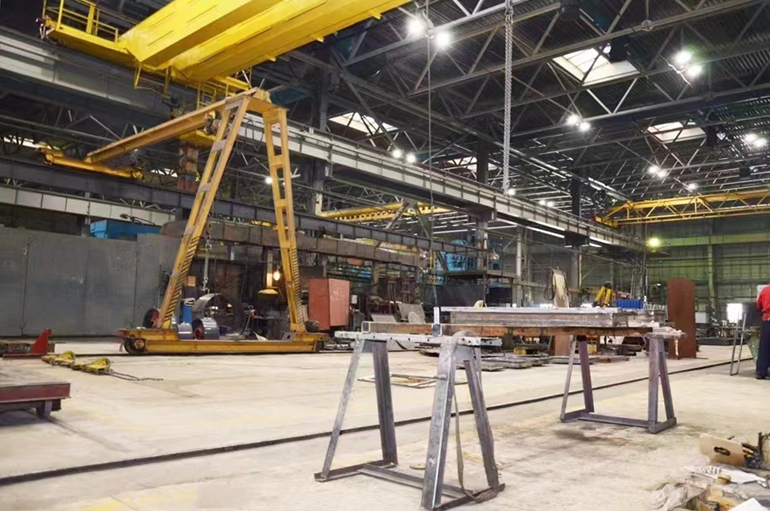

IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver-application for steel factory

IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

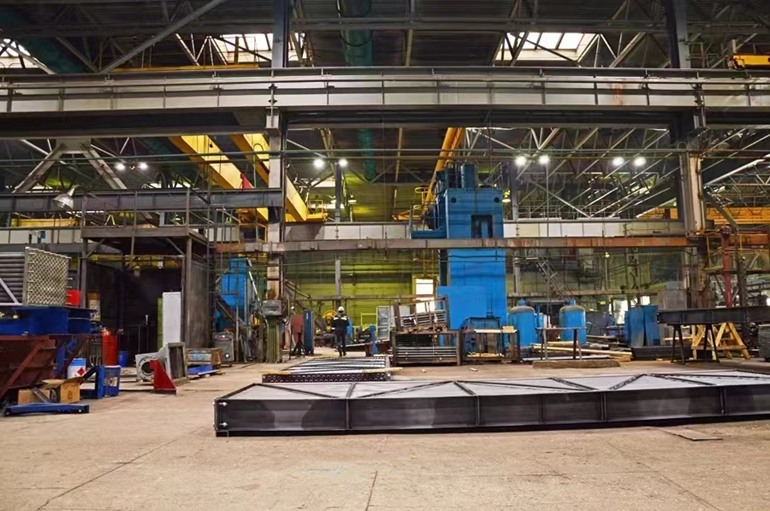

IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver-application for factory

IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

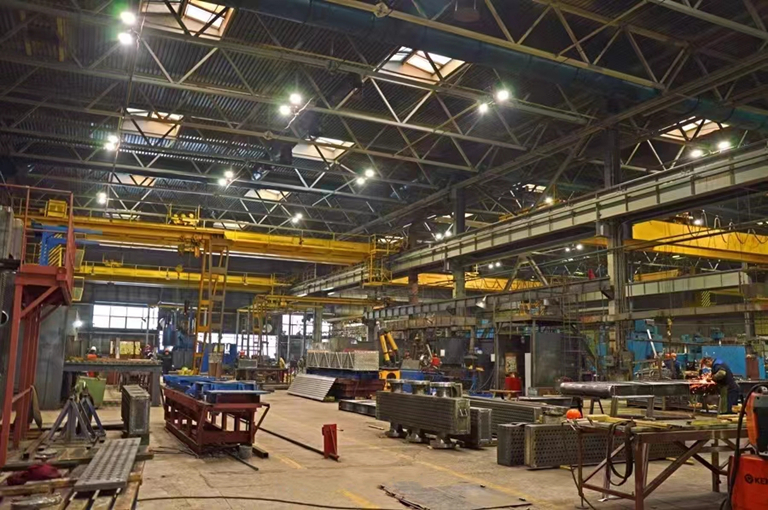

IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver-application for hardware workshop

Certifications for IP65 Osram SMD3030 150W UFO LED high bay light with Meanwell driver

About us

Klover lighting mainly focus on high power outdoor or indoor LED lighting, UFO LED high bay light is one of our main production line with great competition. Always equipped with Meanwell driver and LM-80 listed Philips Lumileds 2835 chips, 5 years waranty. With our latest technology and Unremitting efforts, nowadays our latest UFO high bay light can reach over 180lm/w to save more energy, one of our new high lumen UFO high bay light can replace two pieces old regular lumen high bay light to save more energy and project costing.

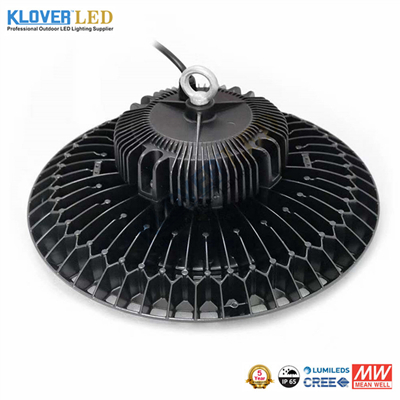

Klover lighting-China factory price super bright 100w 150w 200w 300w ufo LED high bay lighting
