[caption id="attachment_3174" align="alignnone" width="770"]

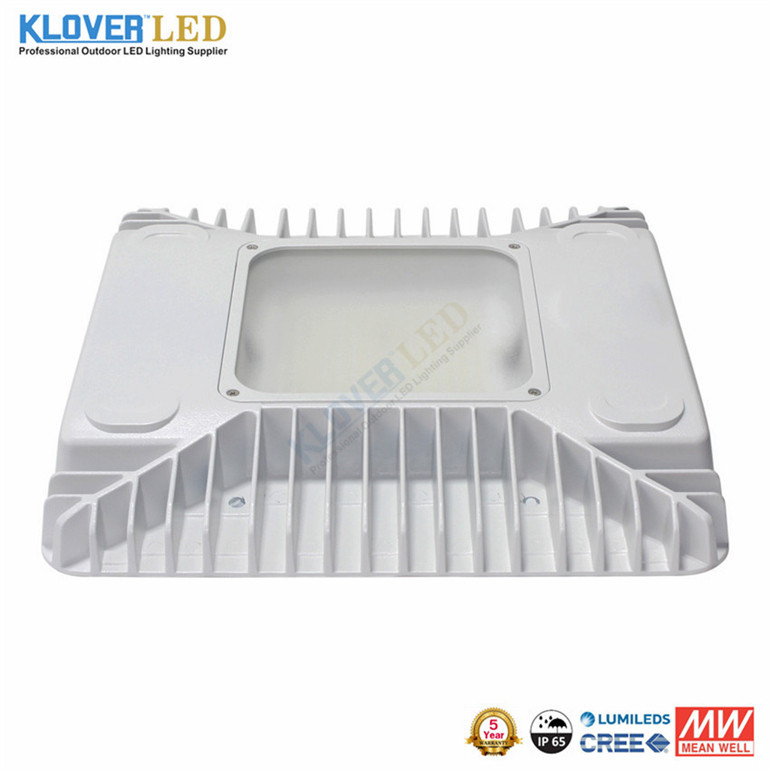

Ceiling mounted 100W 150W LED Canopy Light Fixtures[/caption]
[caption id="attachment_3175" align="alignnone" width="770"]

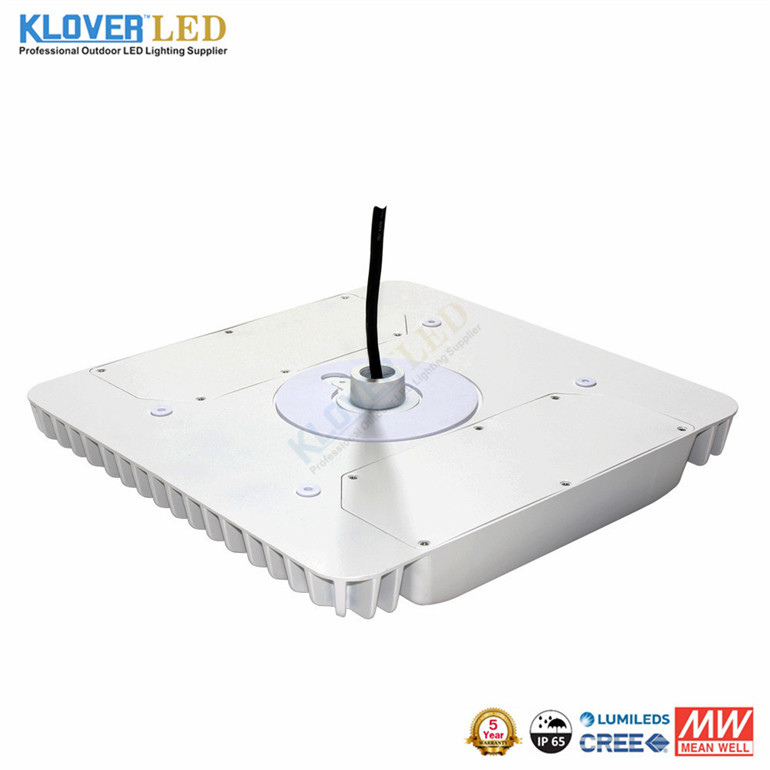

Motion Sensor 100W 150W LED Canopy Light Fixtures[/caption]
[caption id="attachment_3176" align="alignnone" width="770"]

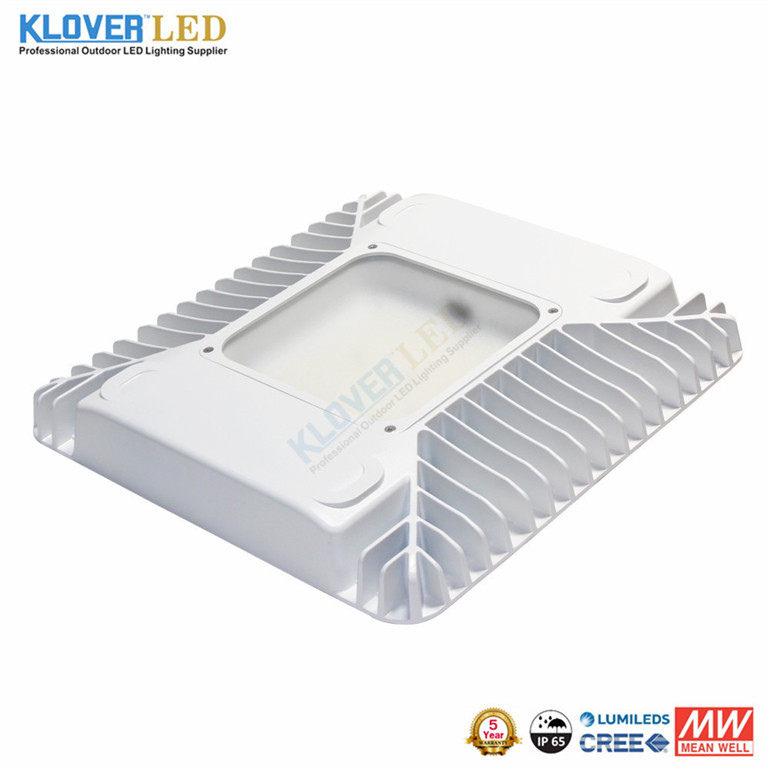

Motion Sensor 100W 150W LED Canopy Light Fixtures[/caption]Item Name: 100W LED Gas Station Canopy Light
Model No.: CL-CNP0611-150W
Total Lumen: >20,000lm, 130lm/w
Product Size: 380*380*70mm
LED Driver: Meanwell XLG
LED chips: 196pcs Philips Lumileds 3030
Input voltage: AC100-305V 50/60HZ
Power Factor: >0.95 THD: <10%
Water proof: IP65
Color Temperature: 2700-6500K Ra: >70
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
Features:
1. Available with Microwave Motion Sensor, 100% brightness and 10%/20%/30%/50% brightness working, more energy saving.
2. Heavy die-casting aluminum alloy, excellent heat dissipation
3. Universal voltage 100-305VAC 50/60Hz, can be installed any country worldwide.
4. 130lm/W for fixture, super brightness ,no flicker, no flashing, no UV, good for eyes.
5. Mean Well UL/cUL driver, high Power Factor >0.9, Low THD Driver <10%, with LM-80 listed Philips Lumileds 3030 chips.
6. Flat grind arenaceous glass lens, soft light.
7. Built-in light module, easy maintenance, low maintenance costs.
8. Dust-proof and waterproof, IP65.
9. 5 years Warranty.
100W 150w motion sensor led canopy light fixtures
Quick specification
100W and 150W available for the ceiling mounted motion sensor LED canopy light.
Product size: 380*380*70mm
Packing size: 450*450*150mm
Packing Qty: 1pcs/CTN
Gross weight: 6.7kgs/Ctn
Product size
Installation guide
1. Hanging pole mounted.
2. Surface mounted by expansion bolt
IES test report for ceiling mounted 100W 150W LED canopy light with motion sensor
>140lm/w motion sensor LED canopy light
Application for Motion Sensor 100W 150W LED Canopy Light Fixtures
