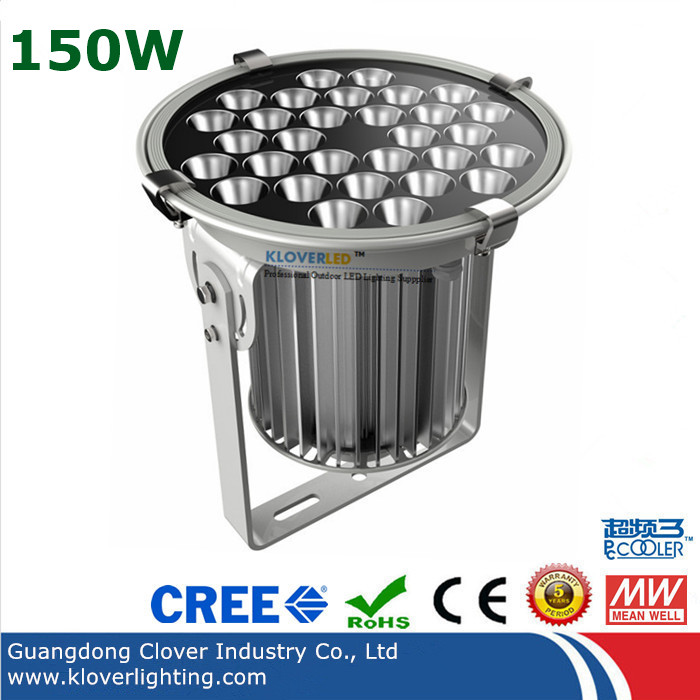

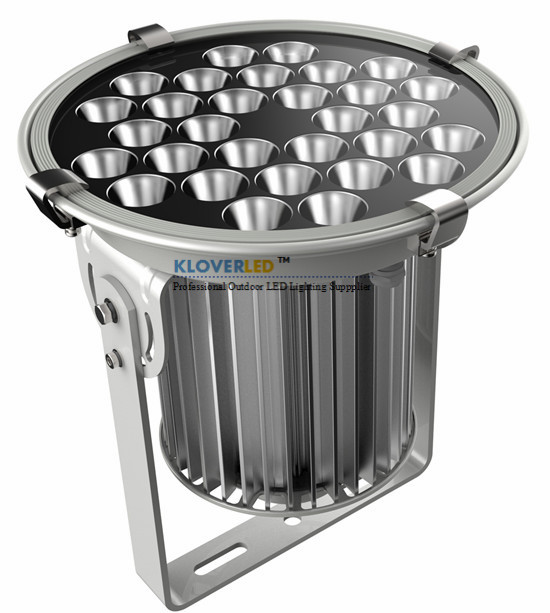

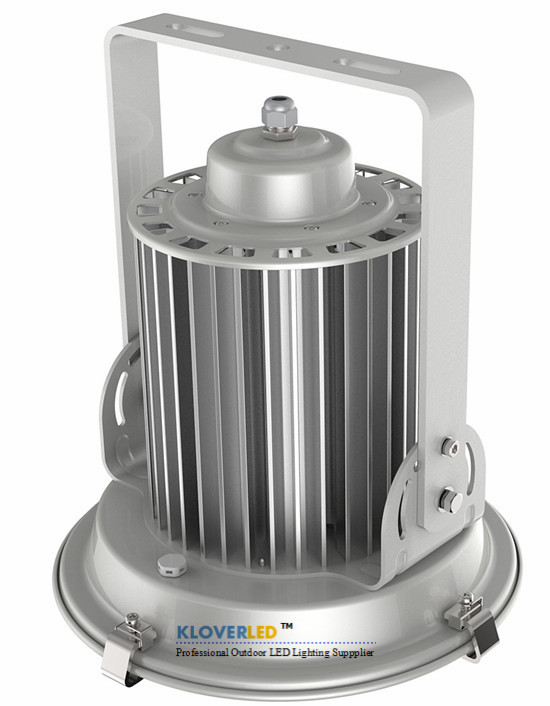

Item Name: CREE 150W LED stadium lighting
Model No.: CL-SP002B150-01
Total Lumen: 18,000lm, 120lm/w
Product Size: (φ316)*347*245mm
LED Driver: Meanwell HLG
LED chips: 30pcs CREE XTE
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95 THD: <15%
IP rating: IP65 water proof
Color Temperature: 2700-6500K optional
Color Rending Index: Ra>80
IP rating: IP65 can be installed outdoor
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
Model Number: CL-SP002B150-01

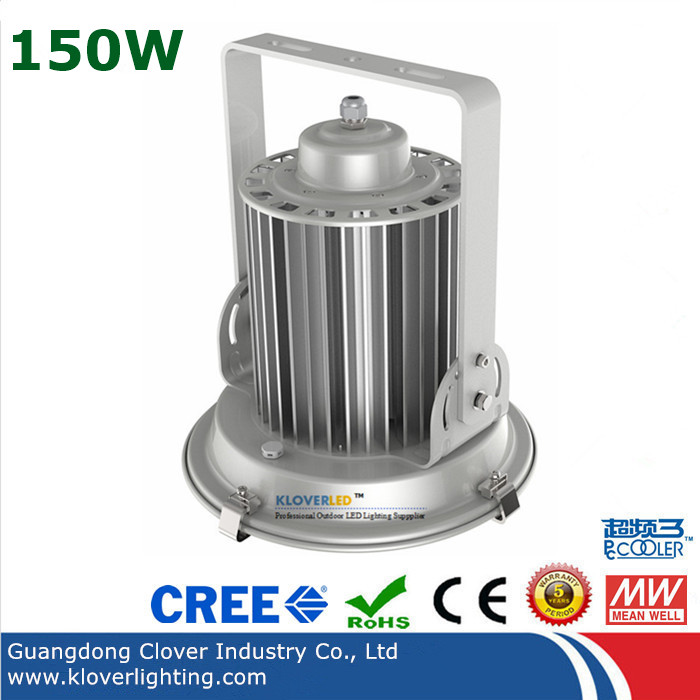

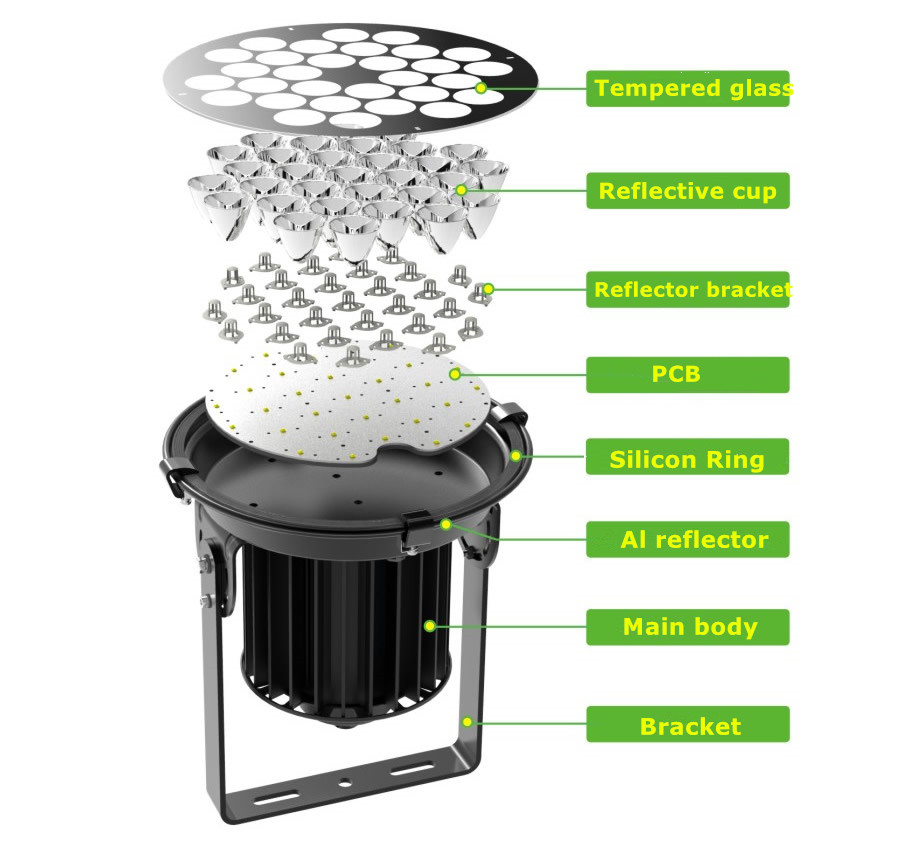

Product breakdown for Narrow Beam Angle Outdoor IP65 150W LED Flood Lights

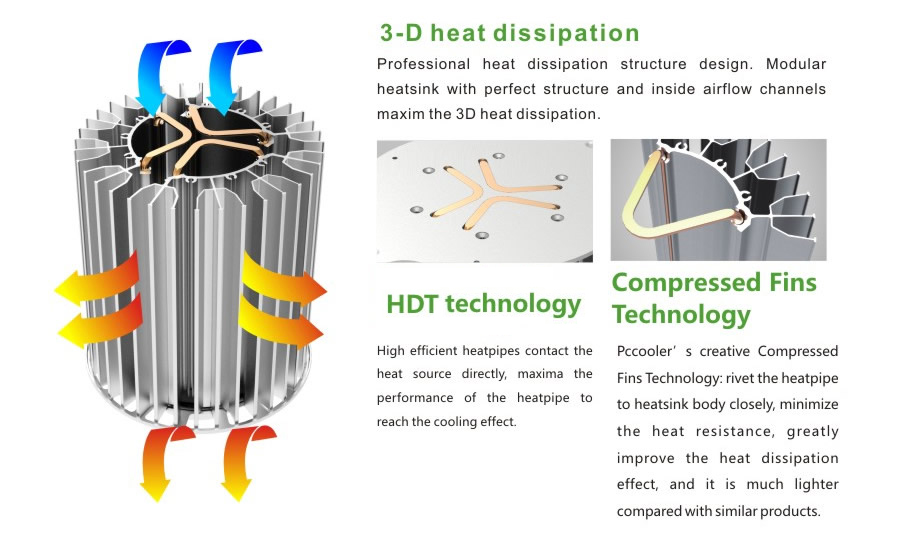

Features for Narrow Beam Angle Outdoor IP65 150W LED Flood Lights
✓ Exellent heat dissipation for adopt HDT technology, copper heat pipe riveting directly to aluminum heat sink, with better heat dissipation than traditional die-casting or extruted aluminum heat sink; largely extend LED chips lifespan by reduce it’s temperature

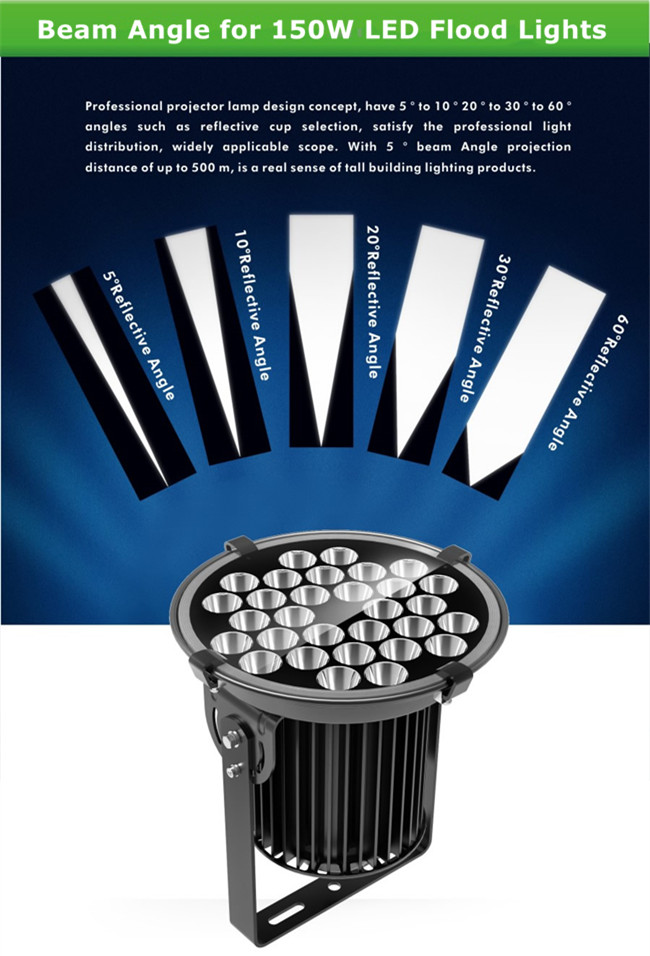

✓ Narrow beam angle, with 5°,10°, 20°, 30°, 60° professionally designed optical lens, light more focus, longer transmission distance
✓ Meanwell HLG/ELG or MOSO LED driver, constant current working mold, stable performance with multi-protection
✓ CREE XTE LED chips, low light decay, high CRI, Ra>75.
✓ Green light, no harmful substances, anti-glare, no light pollution
✓ IP65 rated for outdoor applications
✓ The bracket is adjustable
✓ 304 stainless steel fasteners
✓ VDE, CE certified power cables
✓ 5 Years warranty
Specification for Narrow Beam Angle Outdoor IP65 150W LED Flood Lights
| Product name: | 150W narrow beam angle LED flood lights | ||
| Model No. | CL-SP002B150-01 | ||
| Power | 150W | ||
| Input voltage | AC90-295V, 50/60Hz | ||
| Power Factor | > 0.97 | ||
| THD | <15% | ||
| Lightning protector | 4KV or 10KV optional | ||
| IP Rating | IP65 | ||
| Lifespan | >50000 hours | ||
| Technical Parameters | |||
| Color | Warm White | Natural White | Cool White |
| Color Temperature | 2700-3200K | 4000-5500K | 5700-7000K |
| CRI | RA>75, higher Ra optional | ||
| Light Efficiency | 110-120lm/w | ||
| Beam angle | 5°, 10°, 20°, 30°, 60° | ||
| Main components | |||
| LED chips | 30pcs CREE XT-E | ||
| LED driver | Meanwell ELG/HLG, MOSO | ||
| Lamp body | Aluminum with copper heat pipe | ||
| Body color | Black or grey | ||
| Others | |||
| Operating Temperature | -40℃ to 50℃ | ||
| Storage Temperature | -40℃ to 60℃ | ||
| Warranty | 5 years | ||

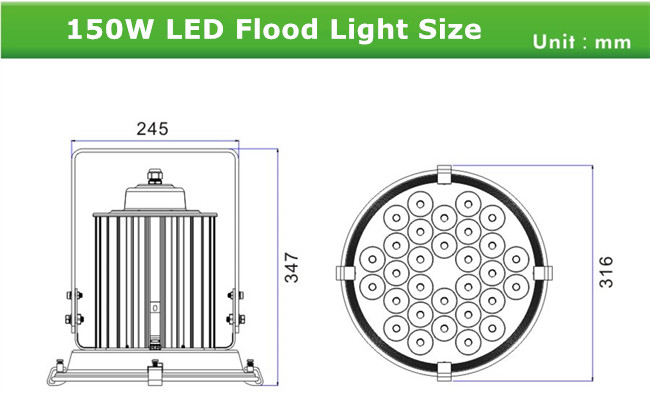

Size for Narrow Beam Angle Outdoor IP65 150W LED Flood Lights

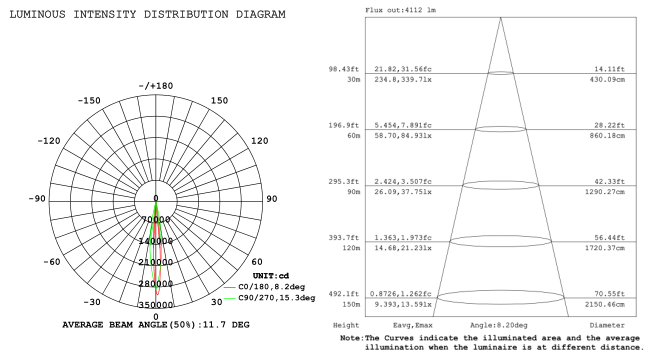

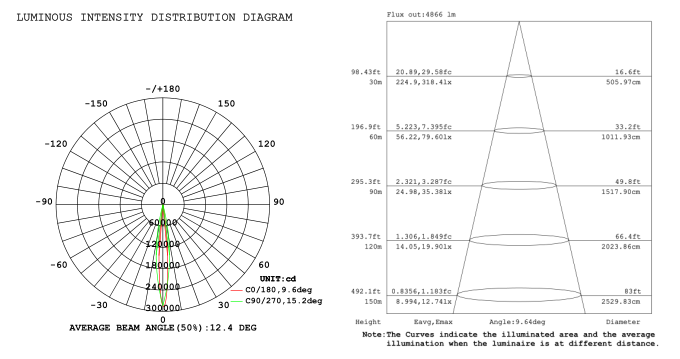

Light Distribution Curve for Narrow Beam Angle Outdoor IP65 150W LED Flood Lights

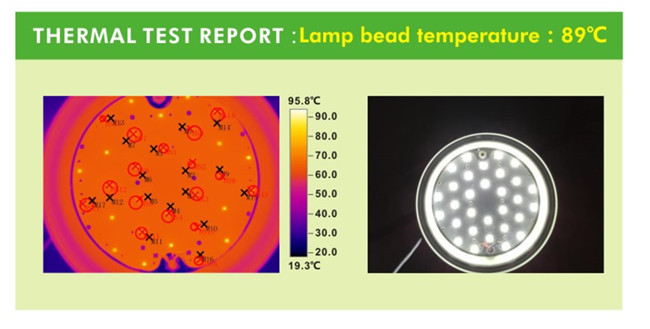

Thermal Image for Narrow Beam Angle Outdoor IP65 150W LED Flood Lights
