Osram 3030 250W LED street light Meanwell driver

Item Name: Osram 3030 2500W LED street light

Model Number: CL-ST002E250-1

Other Watts Available: 40-300W optional

LED Chips: Osram 3030 or Philips Lumileds 3030 LED chips

Luminaire efficiency: 110lm/w, 150lm/w available

Color Rending Index: >75

Color Temperature: 2700-6500K available

Beam Angle: 75*150 degree

LED Driver: Meanwell or MOSO

Input Voltage: AC85-265V 50/60HZ

Power Factor: >0.95, IP65

THD: <15%

Lighting Protection: 6KV or 10KV available.

Certifications: CE, RoHs

Ｗarranty: 5 years

LED Street Lights

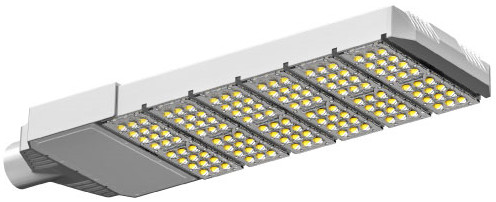

Product pictures for Osram 3030 250W LED street light

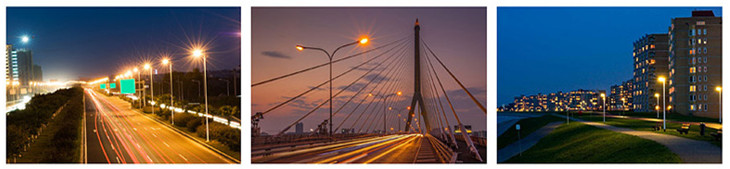

Osram 3030 250W LED street light application

250W LED street light is mainly used in 8-10 carways main street light, 4-5 carway in one side.

normally the LED street light should be upward 30 degree, for more wide lighting to the other side of the road.

The design features of Osram 3030 250W LED street light CL-ST002E250-1

The heat dissipation body is made from high purity aluminum alloy 6063. The heat dissipation base is 0.5cm for excellent heat dissipation.
Individual LED driver box design, to better enlong LED driver lifespan by reduce it’s temperature.
Excellent surface treatment, can be complied in costal countries or area, 10 year no rust or corrosion.

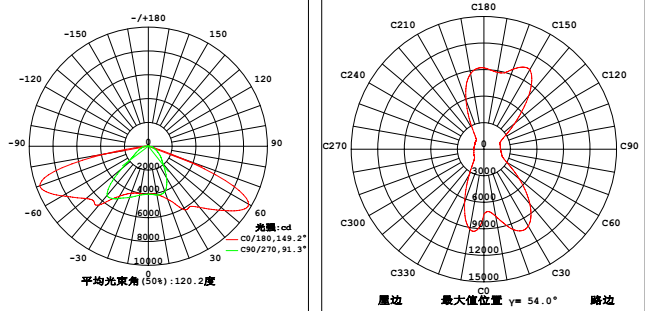

Excellent 2nd optioal design, for better bat wing light dissitribution curve.

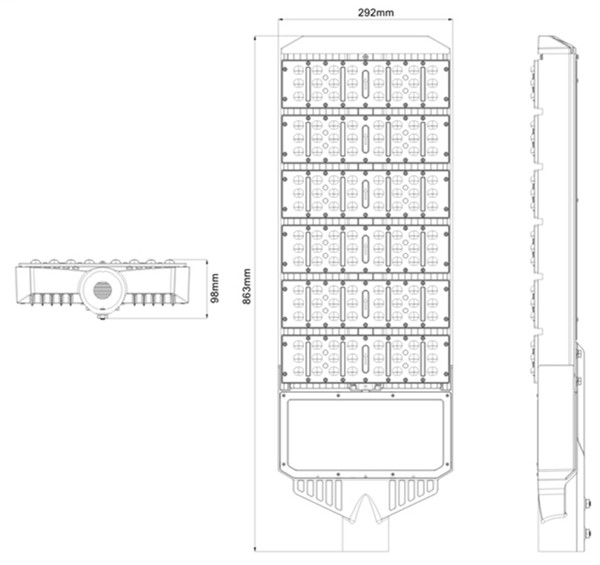

Product size for Osram 3030 250W LED street light
