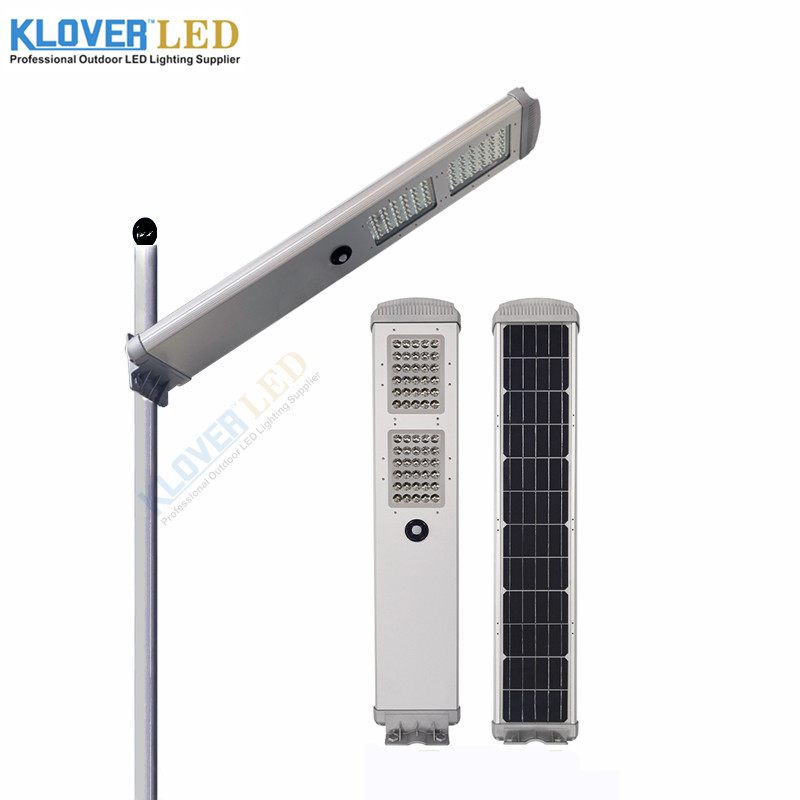

Outdoor 60W LED Solar Street Light-Integrated Solar Area Lights

Item Name: Outdoor 60W LED Solar Street Light-Integrated Solar Area Lights

Item No.: CL-SSL08132-60W

Total Lumen: 60W 7800lm;

Luminaire Efficiency: 130lm/w;

Solar panel: 18V 30W Mono-crystalline

Battery: LiFePo4 12.8V 12Ah

LED chips: Philips/CREE 3030 60PCS

Beam Angle: 120° or TYPE III

IP rating: IP65

Material: Die-casting aluminum alloy

Color Temperature: 6000-6500K(customize optional)

Color Rending Index: Ra>70

Lifespan: >50,000 Hours

Warranty: 3 Years

Solar LED Street Light

Description

Outdoor 60 Watt LED Solar Street Light-Integrated Solar Area Lights-4800lm

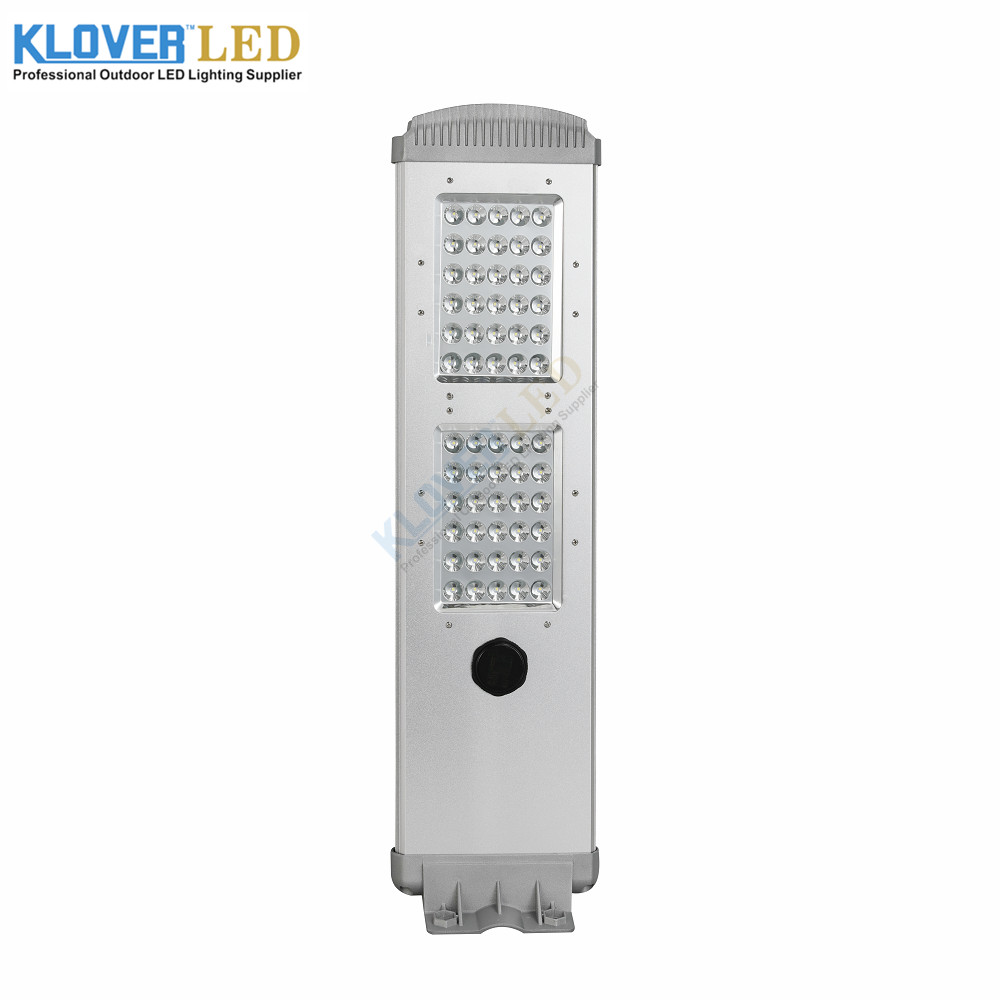

60W integrated LED solar street light solar area light.

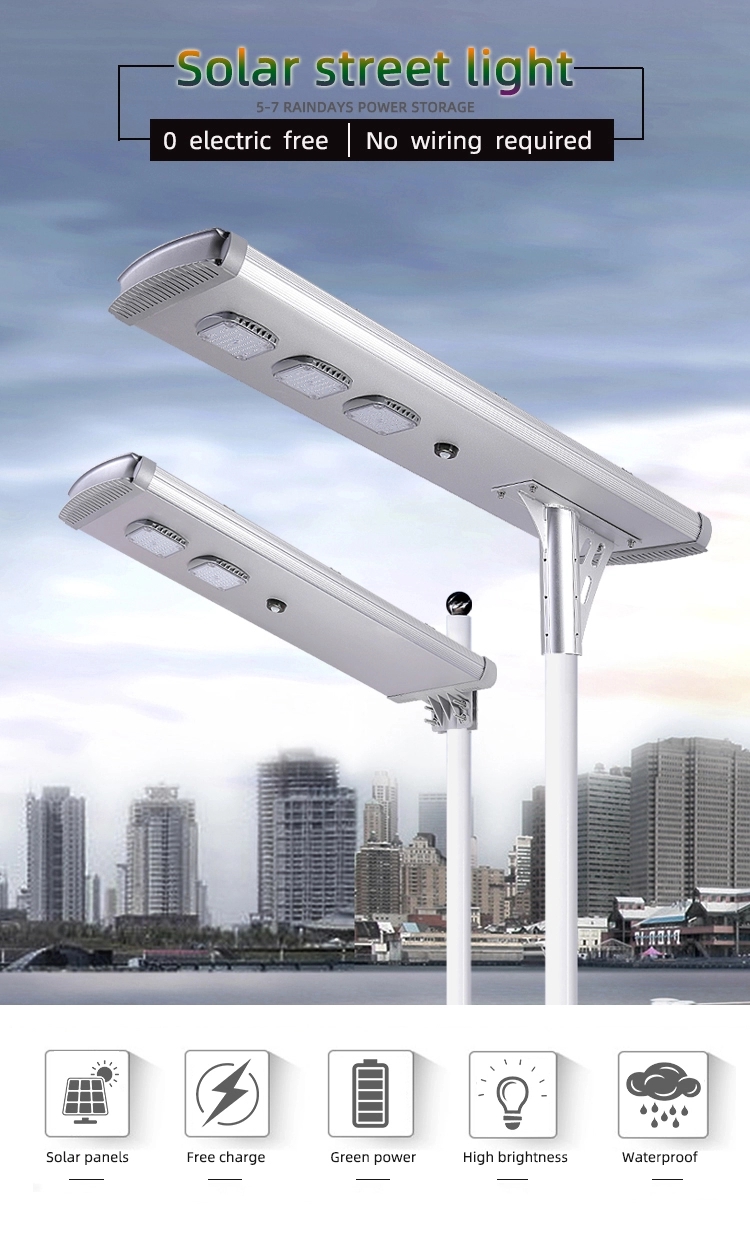

60W LED solar area light

Outdoor 60 Watt LED Solar Street Light-Integrated Solar Area Lights

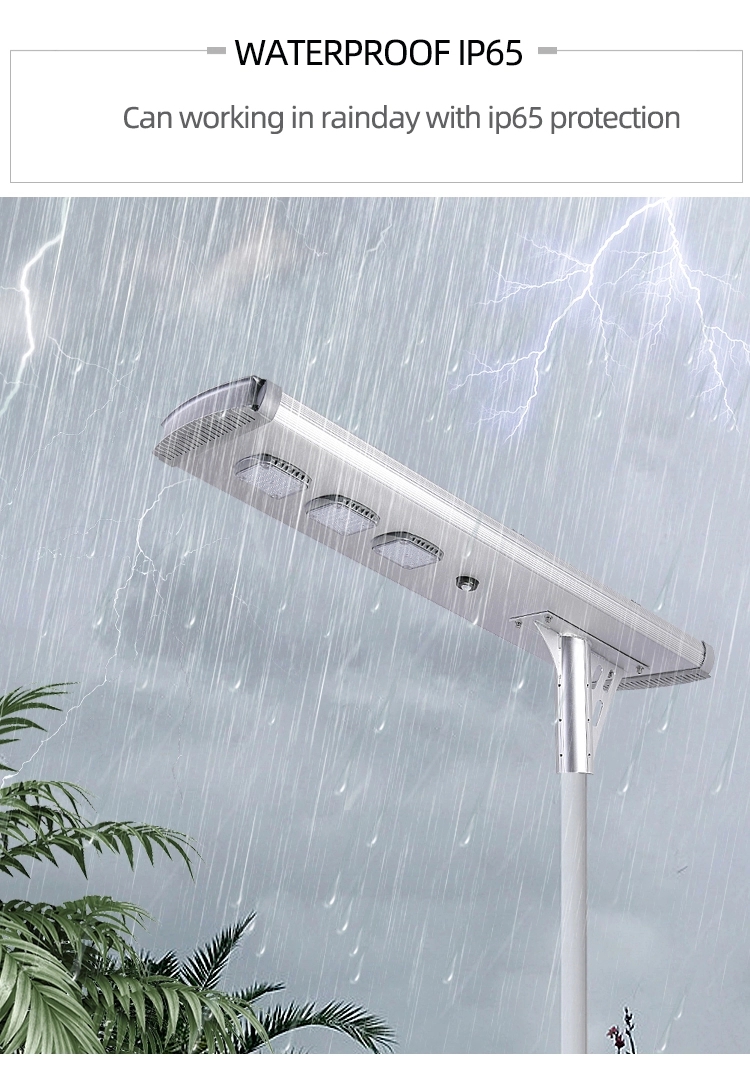

Outdoor 60W LED Solar Street Light-Integrated Solar Area Lights

Quick Specification for Outdoor 60 Watt LED Solar Street Light-Integrated Solar Area Lights

Model No.	Rated Power	Product size(mm)	LED chips	Solar panel	Battery
CL-SSL08132-30W	30W	834215143	30pcs CREE 3030	Mono-crystalline 18V 20W	LiFePo4 12.8V 6Ah
CL-SSL08132-60W	60W	1160215143	60pcs CREE 3030	Mono-crystalline 18V 30W	LiFePo4 12.8V 12Ah
CL-SSL08132-90W	90W	159021560	90pcs CREE 3030	Mono-crystalline 18V 40W	LiFePo4 12.8V 18Ah
CL-SSL08132-120W	120W	189021560	120pcs CREE 3030	Mono-crystalline 18V 50W	LiFePo4 12.8V 24Ah

Features for Outdoor 60 Watt LED Solar Street Light-Integrated Solar Area Lights

1. Heavy die-casting aluminum alloy end caps, extra strong design.

2. Much more LED chips than rated power to achieve high lumen output, CREE/Philips Lumileds chips optional, custom 200-220lm/w chips available.

3. Brand new A1 type LiFePo4 battery, not recycled type.

4. Equipped with Radar/PIR sensor, 100% brightness+50% brightness, or 100% brightness+30% brightness working.

5. Charging time 6-8hours, discharge time over 36 hours.

6. Regular lens and optical lens available, for load lighting use bat-wing light distribution curve lens; For courtyard lighting, 140 degree lens for larger area lighting.

Item number:

CL-SS08132-**W-A “A” stand for 140 degree beam angle.

CL-SS08132-**W-B “B” stand for bat-wing light distribution curve.

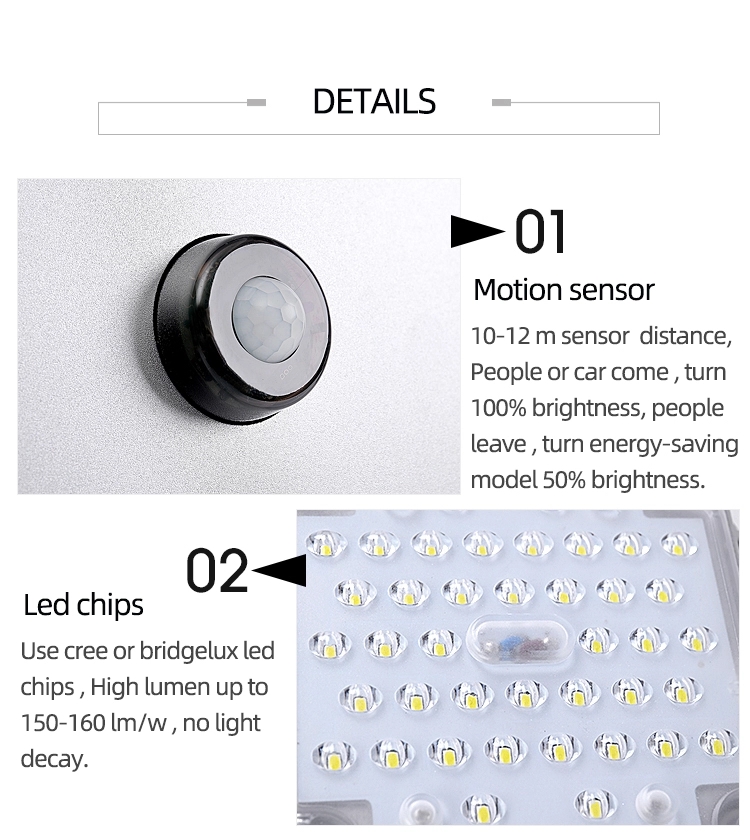

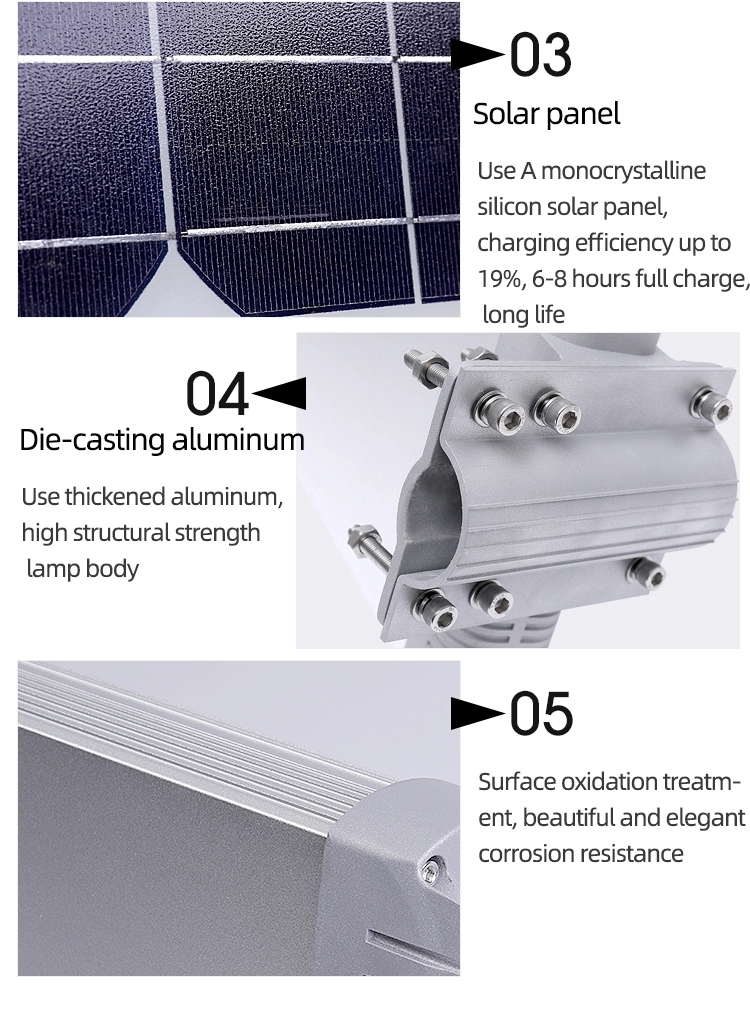

high lumen outdoor 60W LED solar area light

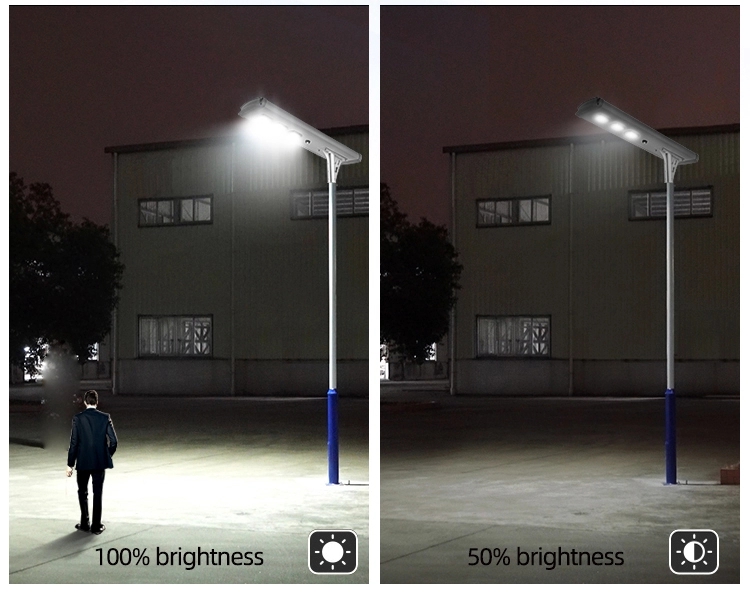

PIR sensor 60W LED solar area light

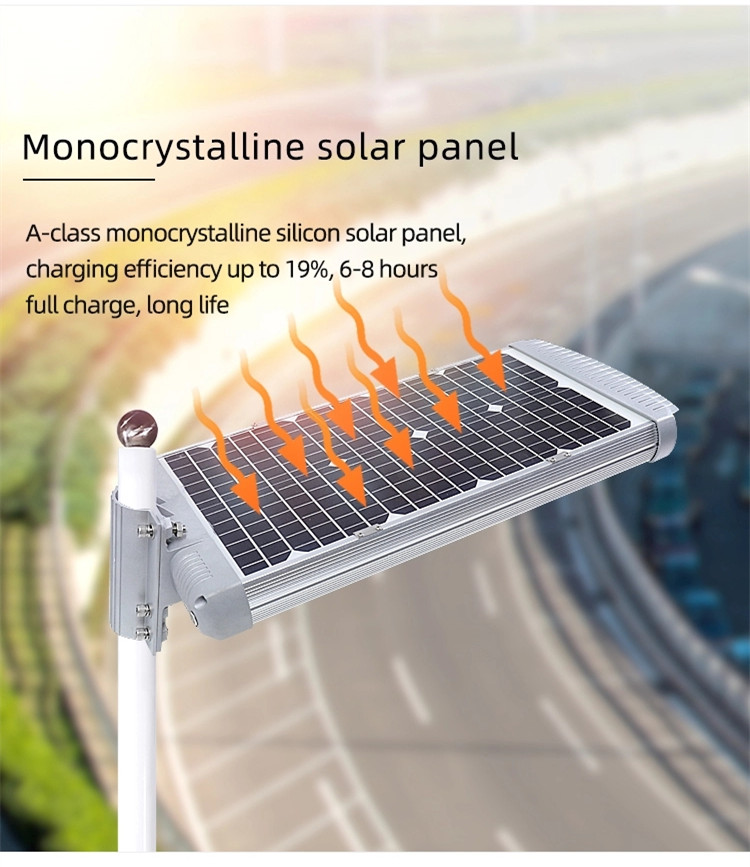

60W integrated solar powered street lights

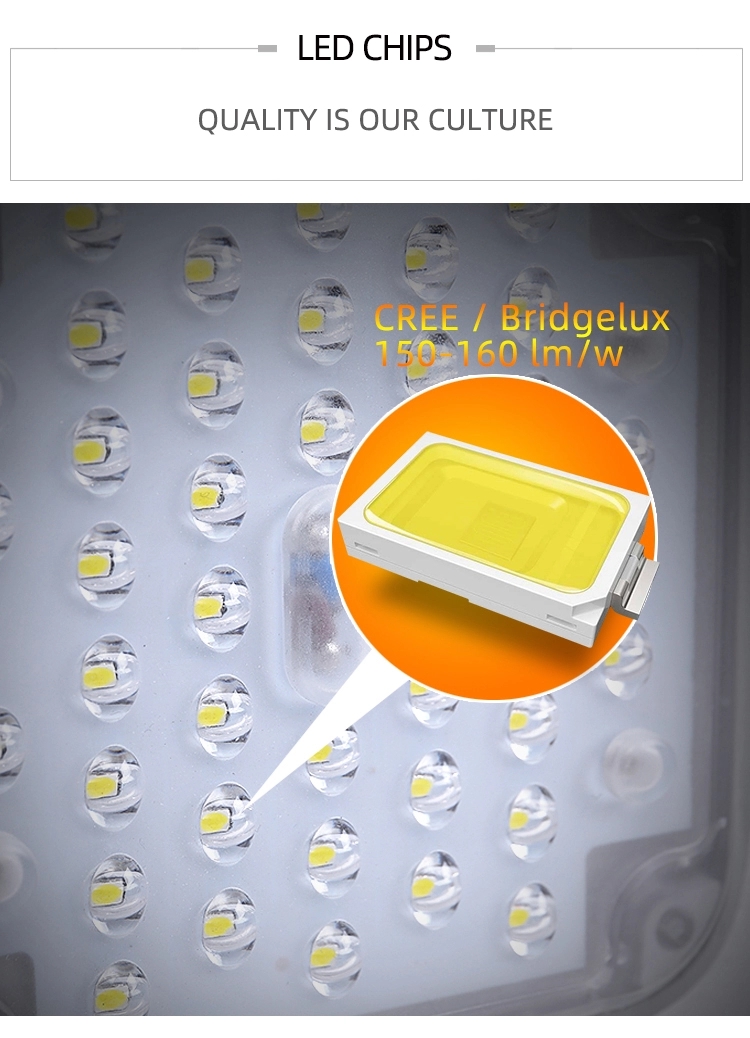

CREE or Philips Lumileds 3030 used for our solar powered street lights, light source 160-170lm/w, custom design 200-220lm/w optional.

solar street light with LiFePo4 battery, lifespan double than Lithium-ion battery.

Specification for Outdoor 60 Watt LED Solar Street Light-Integrated Solar Area Lights

Product Name	30W solar street light	60W solar street light	90W solar street light	120W solar street light
Model Number	CL-SSL08132-30W	CL-SSL08132-60W	CL-SSL08132-90W	CL-SSL08132-120W
Rated Power	30W	60W	90W	120W
Product Size(mm)	834215143	1160215143	159021560	189021560
Beam Angle	140 degree
LED Controller	SRNE, Depower or Remote power
LED Chips	CREE 3030
LED Quantity	30pcs CREE 3030	60pcs CREE 3030	90pcs CREE 3030	120pcs CREE 3030
Luminaire Effciency	130-140lm/w
Solar panel	Mono-crystalline 18V 20W	Mono-crystalline 18V 30W	Mono-crystalline 18V 40W	Mono-crystalline 18V 50W
Battery	LiFePo4 12.8V 6Ah	LiFePo4 12.8V 12Ah	LiFePo4 12.8V 18Ah	LiFePo4 12.8V 24Ah
Charging time	6-8 hours
Discharge time	>24 hours
Installation height	3-4m	3-4m	4-5m	5-6m
Light Color	Warm White/Natural White/Cool White
Color Temperature	2700-3300K/4000-4500K/6000-6500K
CRI	Ra>80, higher CRI available
UGR	<19
IP Rating	IP65
Working Temp	-30ºC To 60ºC
Material	aluminum alloy
Lifespan	>50,000 hours
Warranty	3 years
