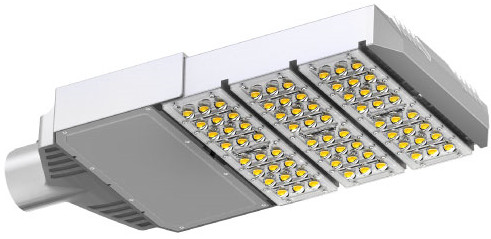

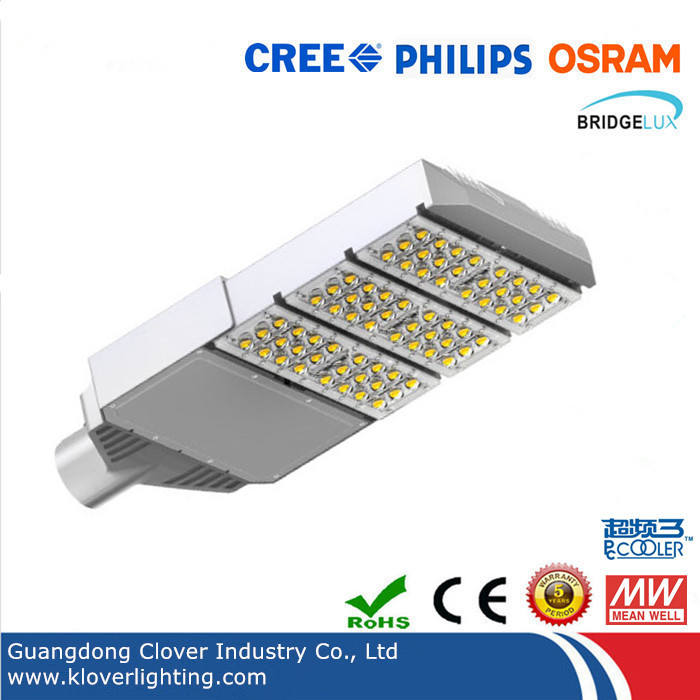

Outdoor high lumen Bridgelux 120W LED street light

Item name: 120W 150W LED street light

Model number: CL-ST002C120-1/CL-ST002C150-1

Other watts available: 40-300W available

LED chips: Osram 3030 or Philips Lumileds 3030 LED chips

LED driver: Meanwell or Moso

Input voltage: AC85-265V, 50/60HZ

Power Factor: >0.95

THD: <15%

Lightning Protection: 6KV or 10KV available

Luminaire efficiency: 110lm/w, 150lm/w available

Color rending index: Ra>80

Beam Angle: 80*155 degree

Certifications: CE, RoHS

Ｗarranty: 5 years

LED Street Lights

Description

Product name: High Lumen 120W LED street light with Meanwell driver

Product Specification for 120W high lumen LED street light

(Can also made into150W)

Model Number	CL-ST002C120-1	CL-ST002C150-1
Power	120W	150W
Lumen	6105lm	6105lm
Luminare efficiency	110.8lm/w	110.8lm/w
CCT	3000-6500K
CRI	>75
Lightning protection	10KV
THD	<15%
IP rating	IP67
Input voltage	AC85-265 50/60HZ
LED driver	Meanwell/MOSO
LED chips	Philips/Osram 3030
Option A	Bridgelux 72pcs	Bridgelux 72pcs
Option B	CREE XTE 72pcs	CREE XTE 72pcs
Option C	Osram or Philips 3030 168pcs	Osram or Philips 3030 168pcs
Product size(mm)	43116089	43116089

Features of 120-150W LED street light

Integrated aluminum design for lamp body, excellent heat dissipation, more air ventilation to bring down LED chips temperature and en-long it’s lifespan.
Water proof IP65 design for outdoor application.
Oxidation treatment for lamp body, suitable for coastal countries or areas, anti-aging and UV resistant.
2^ndoptical design, light more evenly distributed, allow at least 90% usage of of light source.

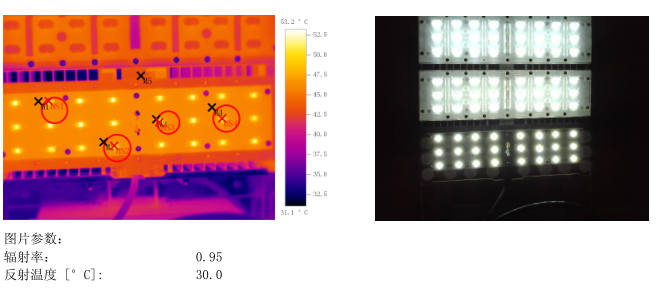

Test reports for temperature rise of 120-150W LED street light

The temperature is about 30 degree.

Main components:

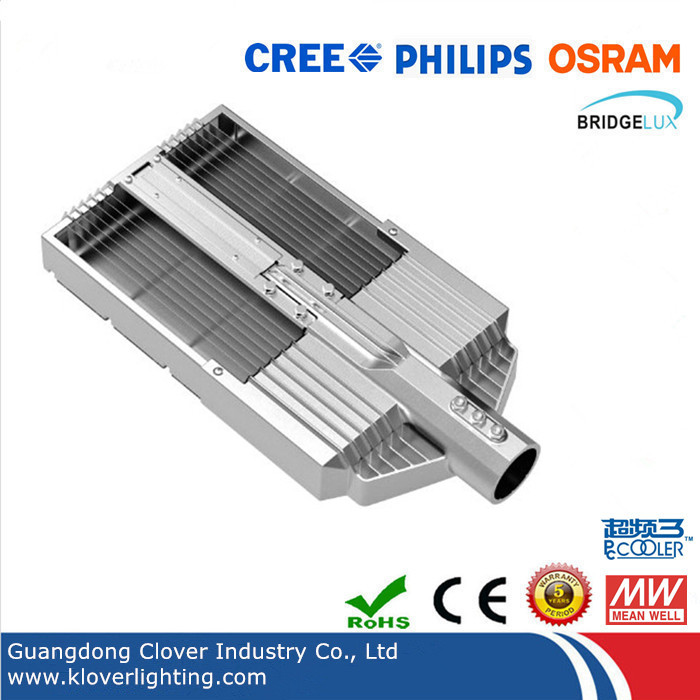

Whole aluminum design heat sink
Philips or Osram 3030 chips, Cree and Bridgelux chips available.
Up to 150lm/w, to use 130W high lumen street light to replace 200W normal 100lm/w LED street light.
Meanwell or MOSO driver optional.

Applications:

Main street light, express way, metropolises lighting, Bridge lighting, sidewalk or pavement lighting, square, school, residential area, industrial area., etc

Product size
