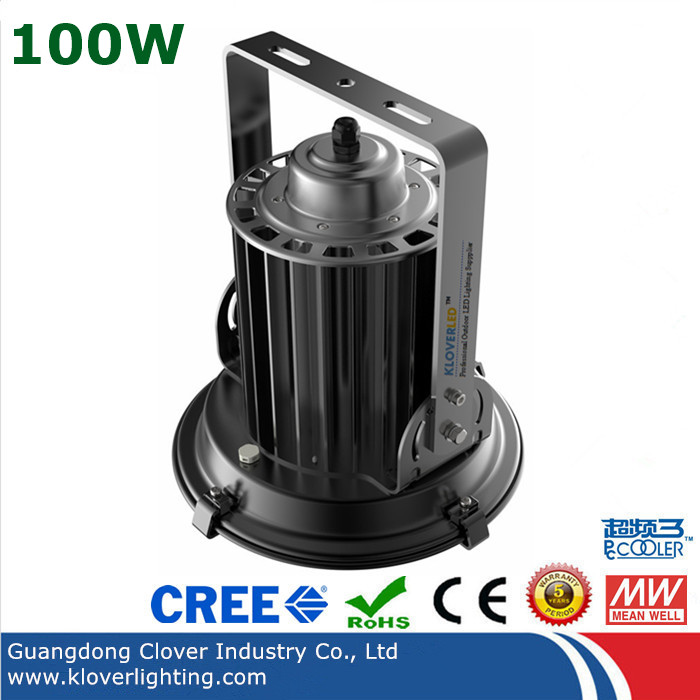

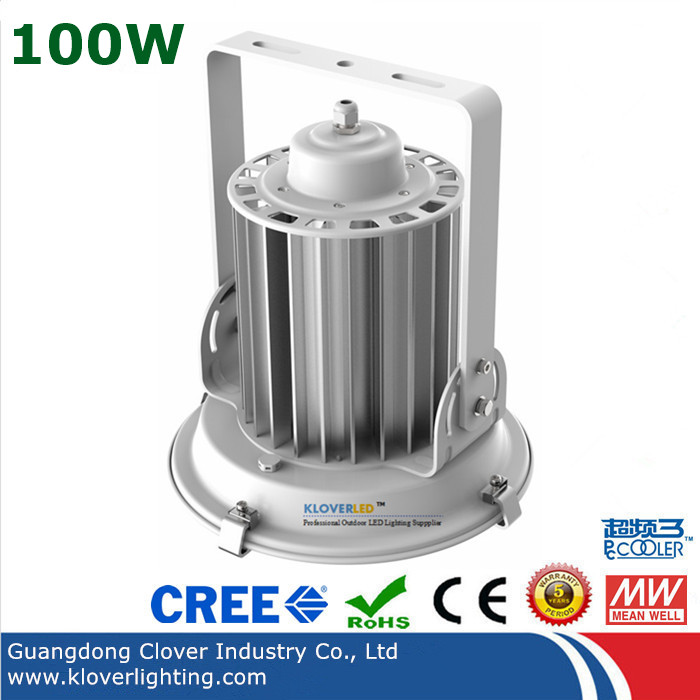

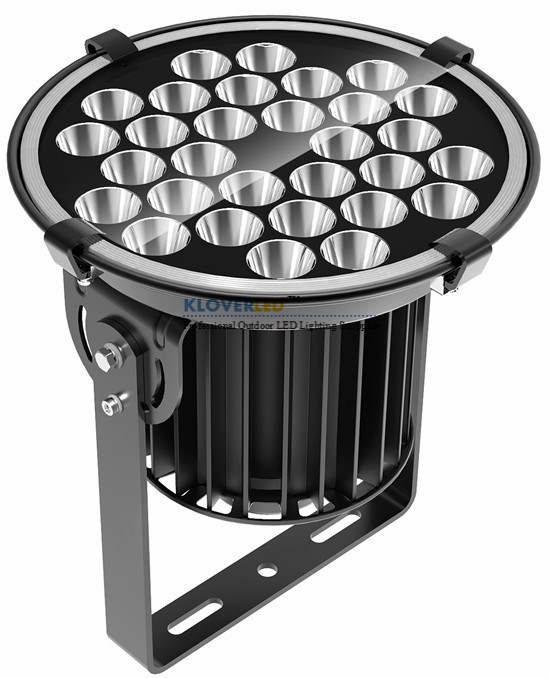

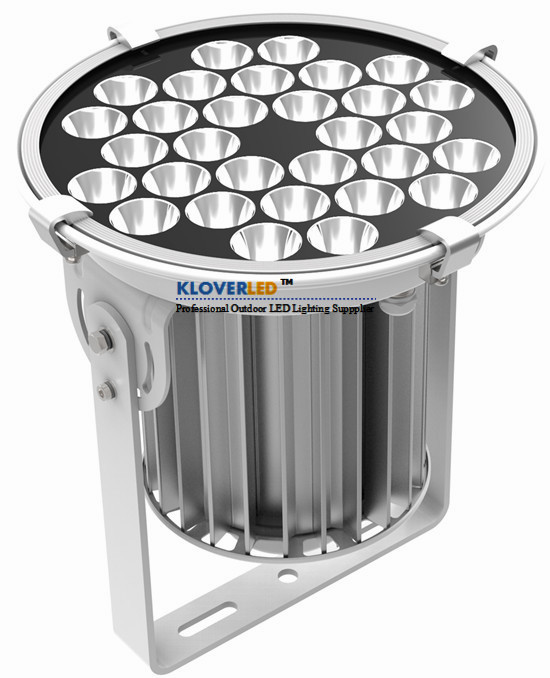

Item Name: CREE 100W LED stadium lighting
Model No.: CL-SP002A100-01
Total Lumen: 12,000lm, 100lm/w
Product Size: (φ316)*347*245mm
LED Driver: Meanwell HLG
LED chips: 30pcs CREE XTE
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95 THD: <15%
IP rating: IP65 water proof
Color Temperature: 2700-6500K optional
Color Rending Index: Ra>80
IP rating: IP65 can be installed outdoor
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
Model number: CL-SP002A100-01

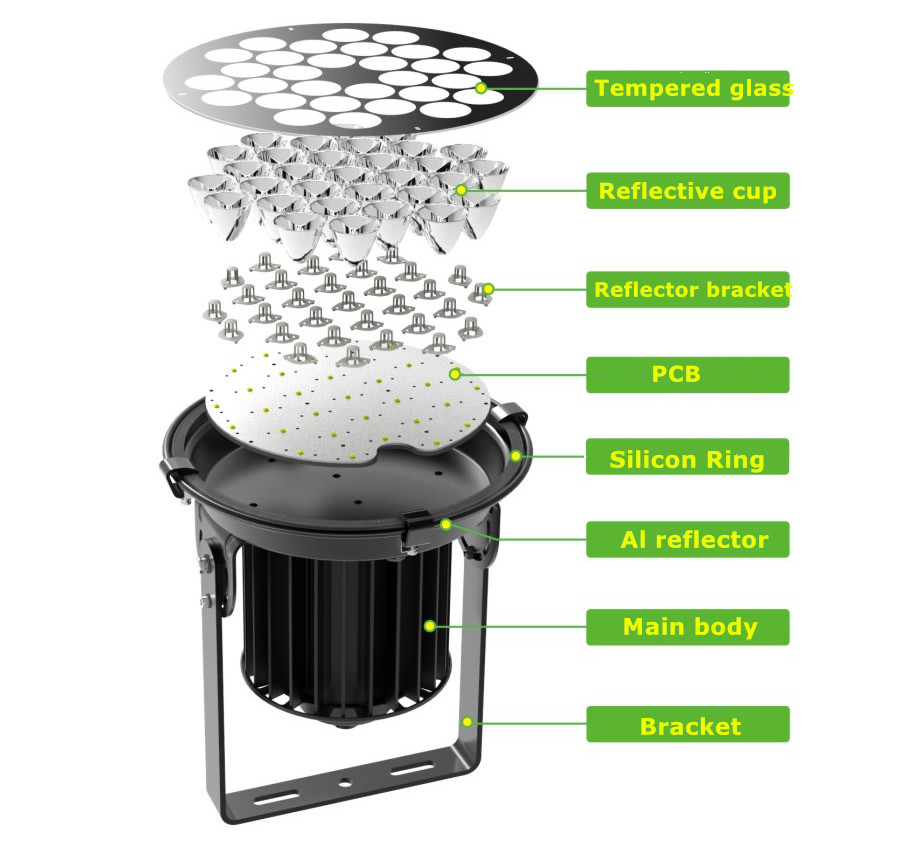

Breakdown for Outdoor IP65 100W LED Flood Lights for Sports Stadium Lighting
Features for Outdoor IP65 100W LED Flood Lights for Sports Stadium Lighting
✓ Patent HDT Technology

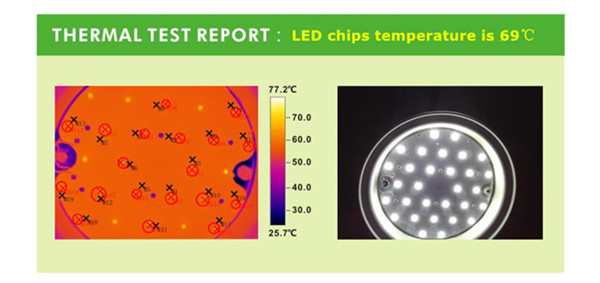

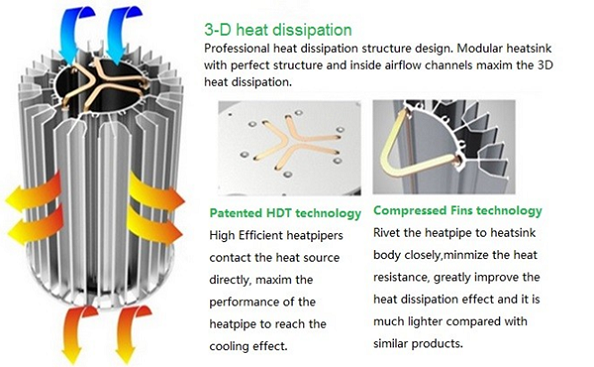

✓ Phrase change copper heat pipe technology, the heat pipe is riveted into aluminum heat sink for more efficient and upgrated heat dissipation, largely reduce LED chips temperature and extend it’s lifespan

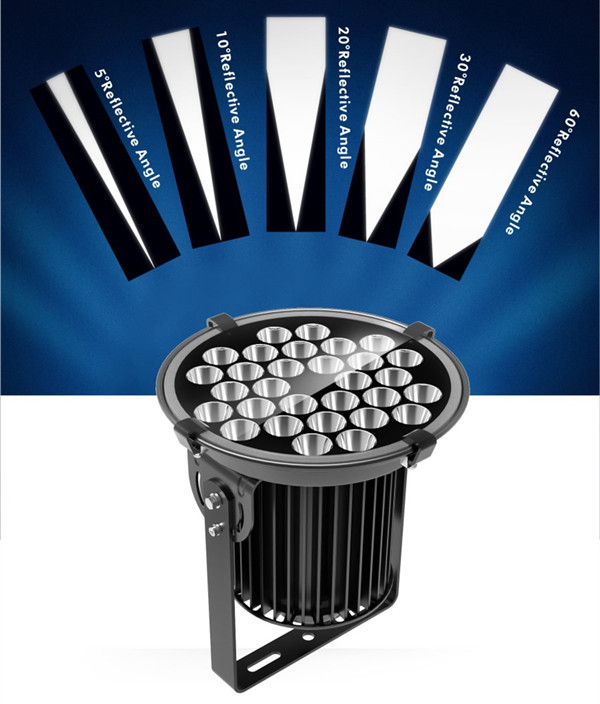

✓ Narrow beam angle, light can be transmitted longer distance; beam angle 5°, 10°, 20°, 30°, 60° optional; For 5 degree beam angle one, the light can be transimitted for over 500 meters, especially good for tower or tall building lighting
✓ Water and dust proof IP65 design, good for outdoor application
✓ Meanwell ELG/HLG LED driver, stable performance, long lifespan

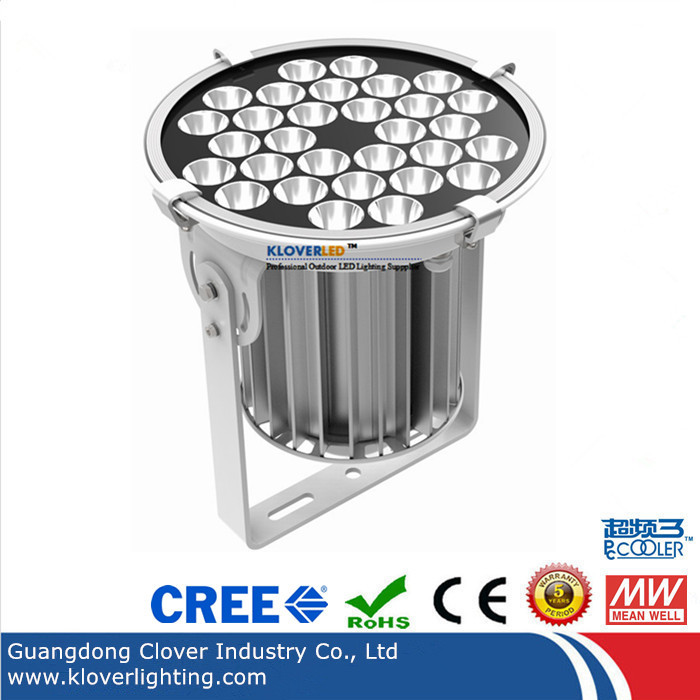

✓ CREE XTE LED chips, luminaire effciency up to 120lm/w
✓ The lamp body is made from high purity aluminum alloy, black and silver color optional
✓ The bracket is adjustable
✓ 5 years warranty

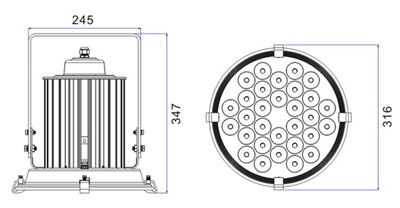

Products size for Outdoor IP65 100W LED Flood Lights for Sports Stadium Lighting
Specification for Outdoor IP65 100W LED Flood Lights for Sports Stadium Lighting
| Product name: | 100W LED flood lights for sports stadium | ||
| Model No. | CL-SP002A100-01 | ||
| Power | 100W | ||
| Input voltage | AC90-295V, 50/60Hz | ||
| Power Factor | > 0.97 | ||
| THD | <15% | ||
| Lightning protector | 4KV or 10KV optional | ||
| IP Rating | IP65 | ||
| Lifespan | >50000 hours | ||
| Technical Parameters | |||
| Color | Warm White | Natural White | Cool White |
| Color Temperature | 2700-3200K | 4000-5500K | 5700-7000K |
| CRI | RA>75, higher Ra optional | ||
| Light Efficiency | 110-120lm/w | ||
| Beam angle | 5°, 10°, 20°, 30°, 60° | ||
| Main components | |||
| LED chips | 30pcs CREE XT-E | ||
| LED driver | Meanwell ELG/HLG, MOSO | ||
| Lamp body | Aluminum with copper heat pipe | ||
| Body color | Black or grey | ||
| Others | |||
| Operating Temperature | -40℃ to 50℃ | ||
| Storage Temperature | -40℃ to 60℃ | ||
| Warranty | 5 years | ||
Light Distribution for Outdoor IP65 100W LED Flood Lights for Sports Stadium Lighting

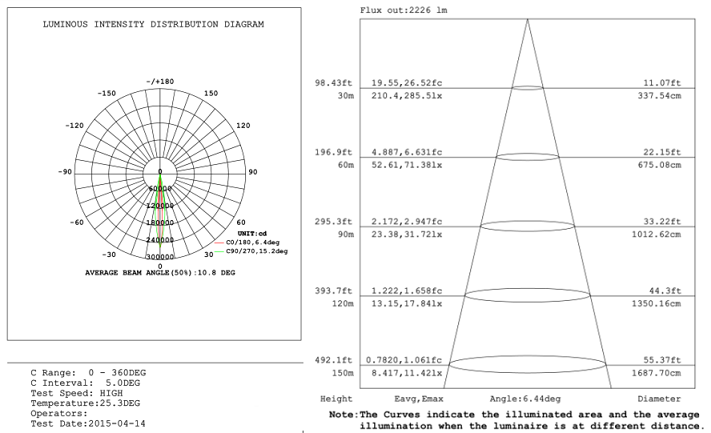

Light distribution curve for 6 degree Beam angle

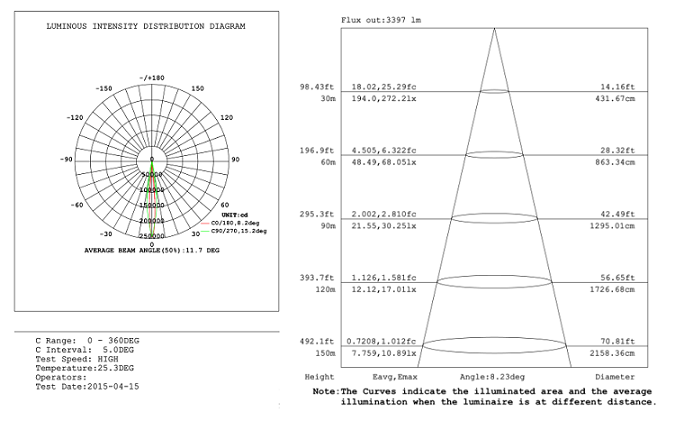

Light distribution curve for 10 degree Beam angle

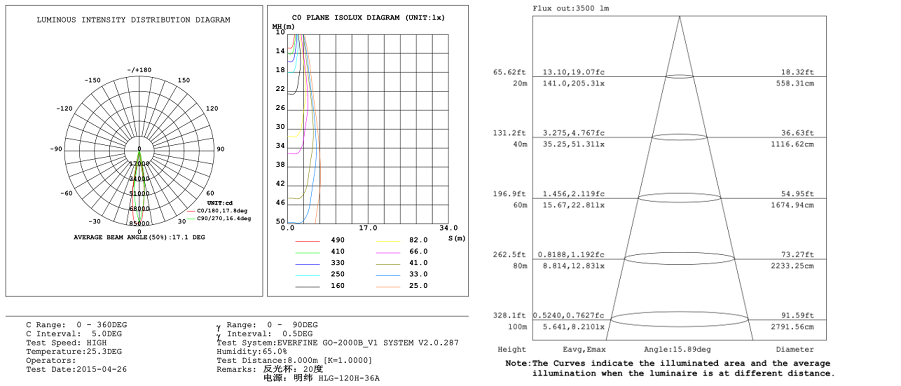

Light distribution curve for 20 degree Beam angle

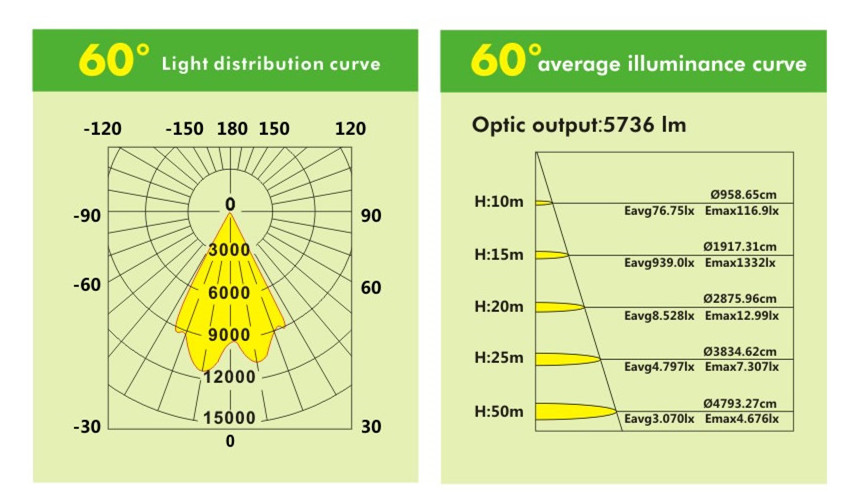

Light distribution curve for 60 degree Beam angle
Application for Outdoor IP65 100W LED Flood Lights for Sports Stadium Lighting
Narrow beam angle, especially good for long distance lighting, such as tower, tall building, sports stadium area.,etc.
