[caption id="attachment_3527" align="alignnone" width="800"]

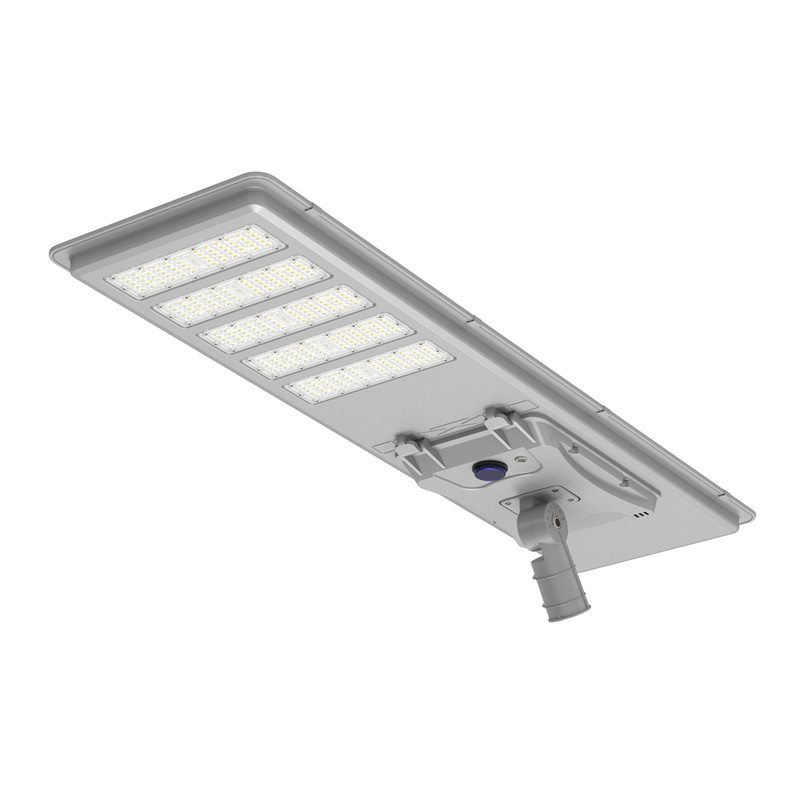

100W all in one solar LED street light with PIR or Microwave sensor

100W all in one solar LED street light with 18V100W mono-crystalline solar panel and 12.8V 36Ah new LiFePo4 battery, PIR or Microwave sensor[/caption][caption id="attachment_3518" align="alignnone" width="720"]

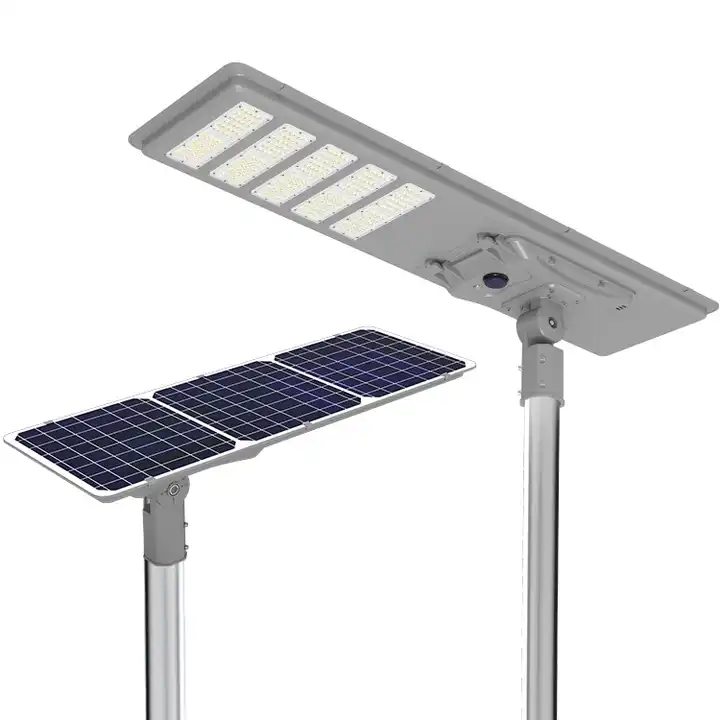

aluminum 60W 80W 100W solar LED street light all in one, integrated mono-crystalline solar panel, big capacity LiFePo4 battery, SRNE controller and Philips Lumileds chips[/caption][caption id="attachment_3519" align="alignnone" width="800"]

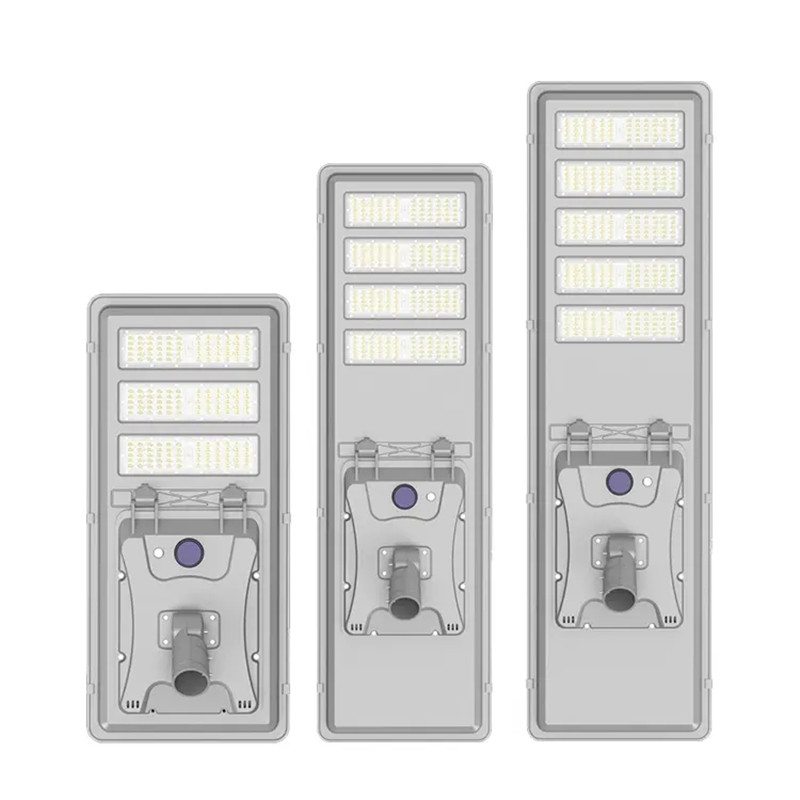

60w 80w 100w solar led street light all in one design

aluminum 60W 80W 100W solar LED street light all in one, integrated mono-crystalline solar panel, big capacity LiFePo4 battery, SRNE controller and Philips Lumileds chips, integrated solar led street light[/caption]

Outdoor IP65 60W 80W 100W All in One Solar LED Street Light SSL0016

Item Name: 60W, 60W, 100W all in one solar LED street light

Model No.: CL-SSL0016 Series

Luminaire efficiency: >160lm/w

Solar panel: Mono-crystalline, 6V or 18V optional

Battery: New LiFePo4

LED chips: Bridgelux/Lumileds/Sanan 3030/5050/2835

IP rating: IP65 water proof

Color Temperature: 3000-6500K optional

Beam Agle: 70*145 degree, bat wing type

Color Rending Index: Ra>70

IP rating: IP65

Lifespan: over 50,000hours

Warranty: 3 Years

Solar LED Street Light

Description

Outdoor IP65 60W 80W 100W All in One Solar LED Street Light SSL0016

IP65 waterproof outdoor 60W 80w 100w solar LED street light all in one

60W 80W 100W all in one solar led street light

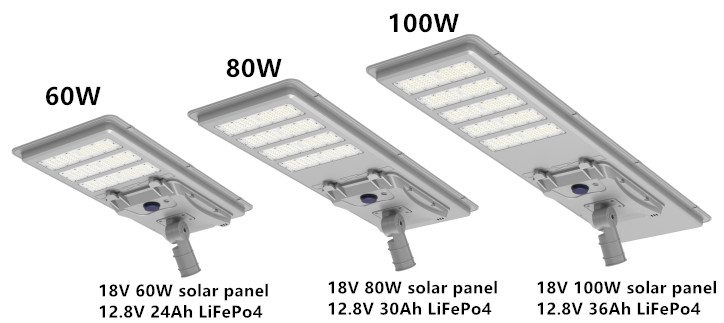

60W all in one solar street light is with 18V 60w mono-crystalline solar panel, 12.8V 24Ah new LiFePo4 battery; 80W all in one solar street light is with 18V 80w mono-crystalline solar panel, 12.8V 30Ah new LiFePo4 battery; 100W all in one solar street light is with 18V 100w mono-crystalline solar panel, 12.8V 36Ah new LiFePo4 battery; 6V Mono-crystalline solar panel and 3.2V LiFePo4 battery system also available.

Model	60W All in One Solar Street Light	80W All in One Solar Street Light	100W All in One Solar Street Light
LED QTY(PCS)	180pcs Bridgelux 3030, 180lm/w	240pcs Bridgelux 3030, 180lm/w	300pcs Bridgelux 3030, 180lm/w
CCT	3000-6500K optional
Battery	12.8V 24Ah, 307.2WH LiFePo4	12.8V 30Ah, 384WH LiFePo4	12.8V 36Ah, 460.8WH LiFePo4
Solar Panel	18V 60W mono-crystalline	18V 80W mono-crystalline	18V 100W, mono-crystalline
Install Height	3-4 meters	4-6 meters	5-8 meters
Waterproof	IP 65
Lighting Time	4-5 nights
Working Temp.	-25℃ to 65℃

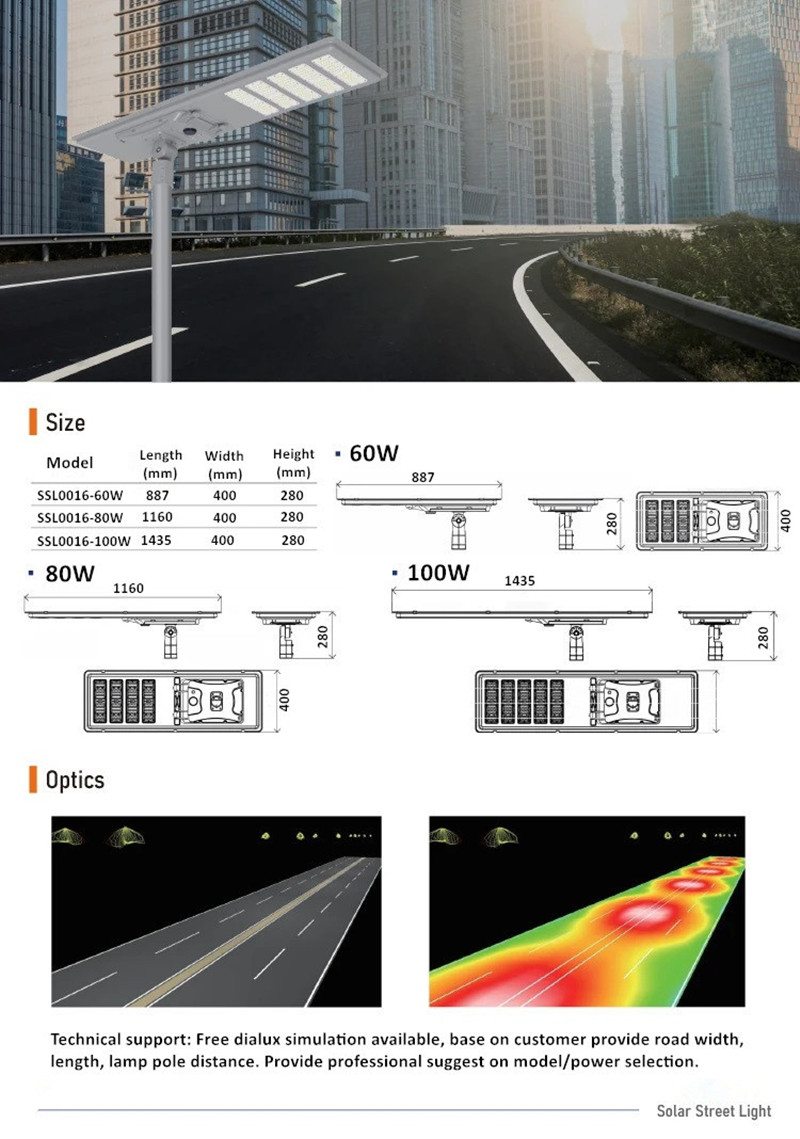

Product Size(mm)	887400280	1160400280	1435400280
Material	Die-casting Aluminum alloy+PC lens

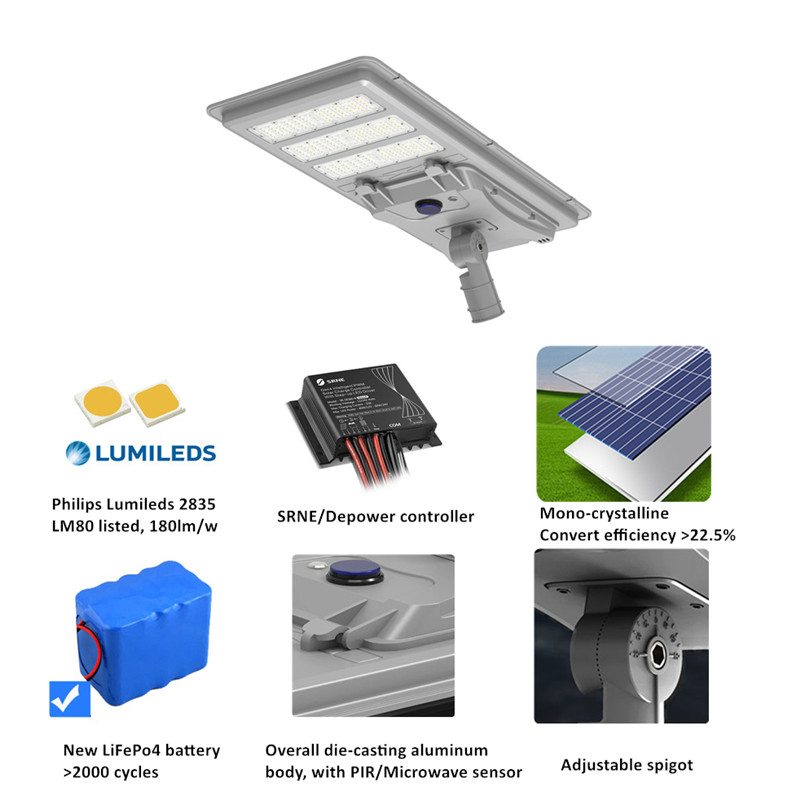

Features for Outdoor IP65 Aluminum Housing 60W/80W/100W All in One Solar LED Street Light:

1. This series SSL0016 all in one solar LED street light, the whole lamp body/shell is made from die-casting aluminum alloy, good heat dissipation, strong and never rust.
2. LM-80 listed Philips Lumileds or Bridgelux 3030/2835 optional, strong lumen.
3. This 60W 80W 100W solar LED street light all in one use large capacitry new LiFePo4 battery, over 2000 cycles, lifepsan over 6 years.
4. Mono-crystalline solar panel, convert efficiency over 22.3%
5. Battery box can be opened easily to replace controller or battery; Spigot can be adjusted 0-180 degree to maximumly receive sunpower.
6. This all in one solar LED street light equipped with PIR or Microwave sensor, for energy saving, one day charge support 4-5 night lighting
7. Equipped with APMS system(automatic power manage system), can make it 365 days non-stop lighting.
8. The solar panel is not glued on the top of all in one solar street light, it can be removed easily to replace LiFePo4 battery or controller.
