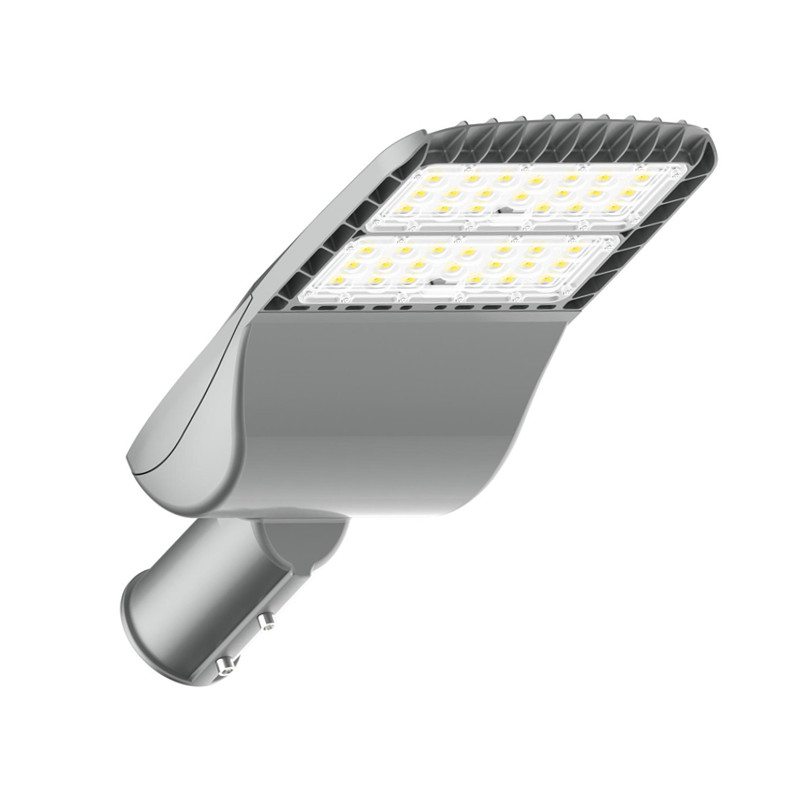

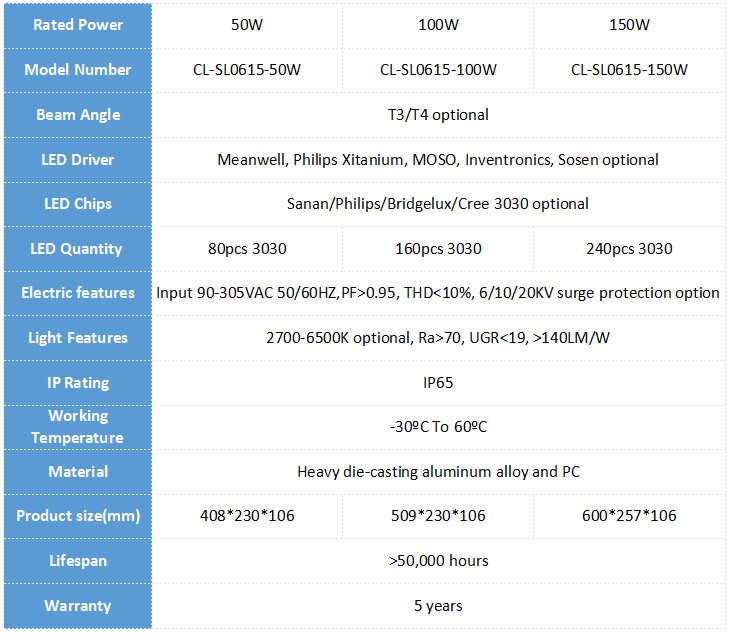

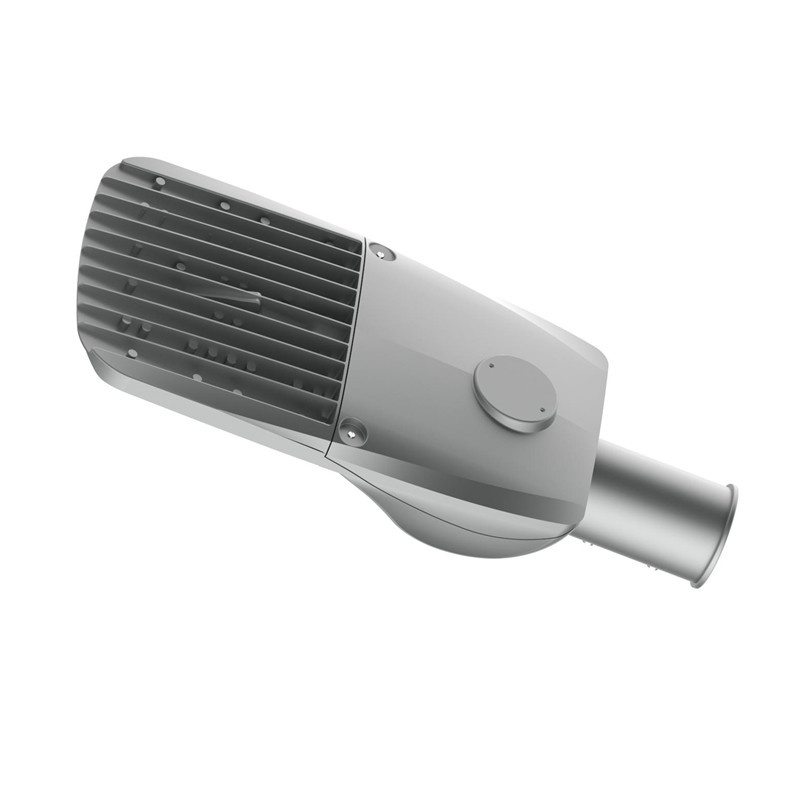

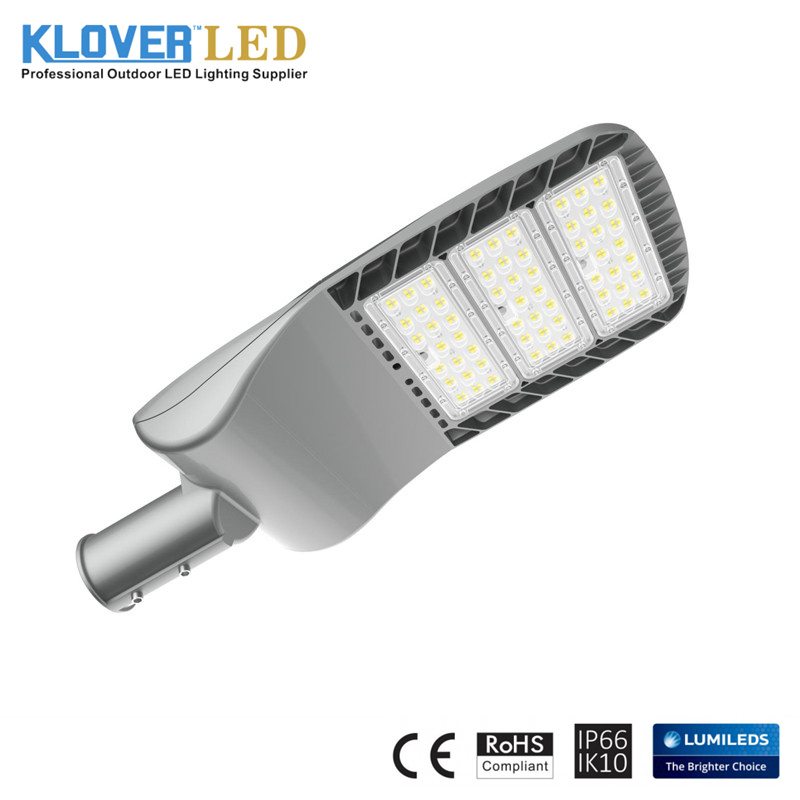

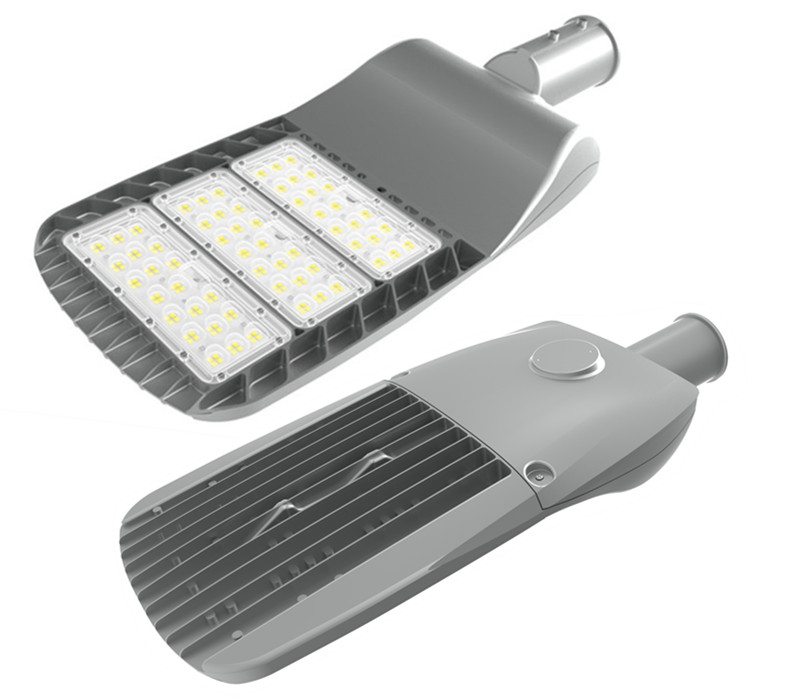

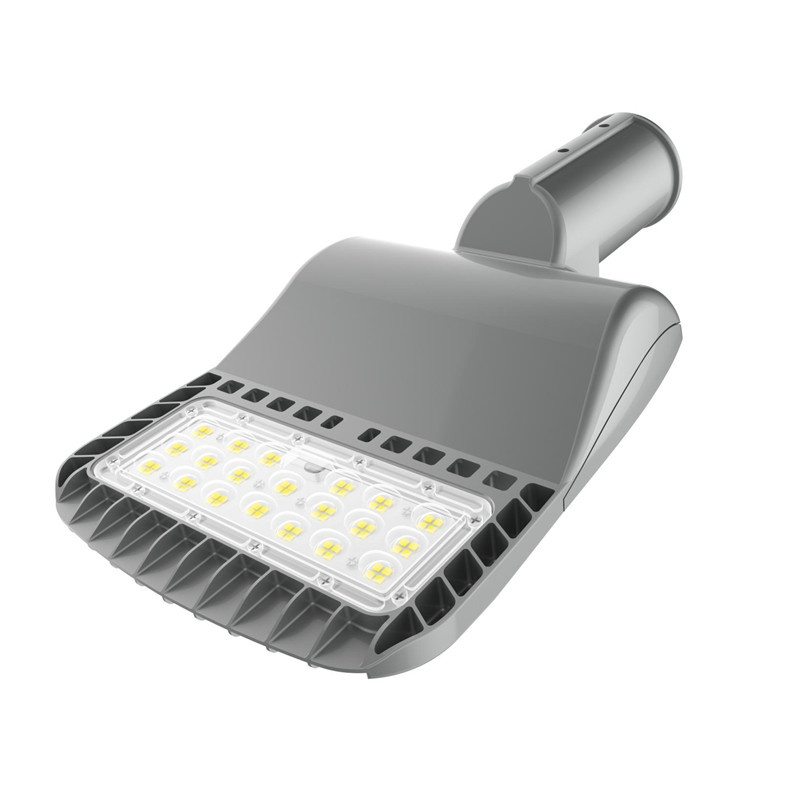

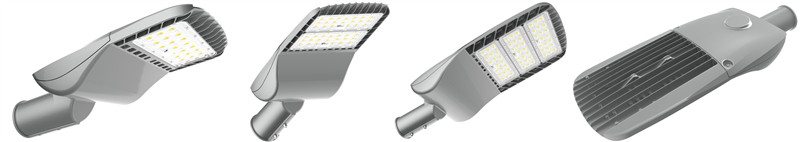

Item Name: 50W, 100W, 150W LED street light fixture
Model No.: CL-SL0615 Series
Luminaire efficiency: >140lm/w
LED Driver: Meanwell, Philips, Sosen or Inventronics
Input voltage: AC90-305V 50/60HZ
Power Factor: >0.95 THD: <10%
IP rating: IP65 water proof
Color Temperature: 3000-6500K optional
Color Rending Index: Ra>70
IP rating: IP65
Warranty: 5 Years

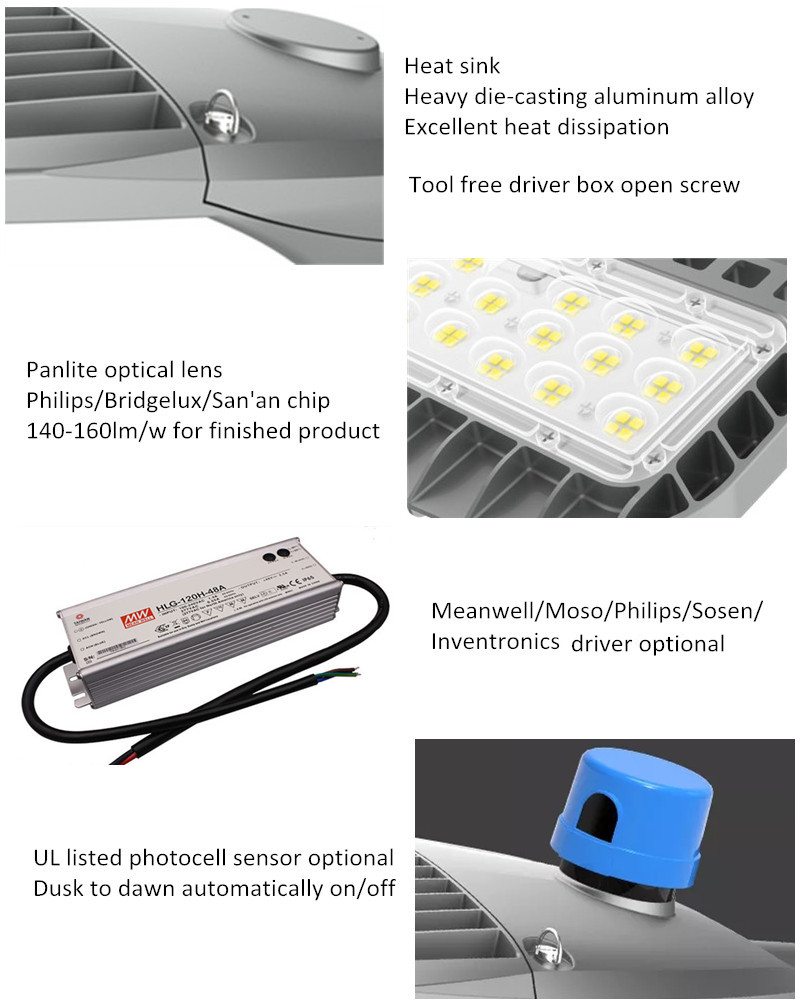

1. Integrated design for housing, high pressure injection die-casting aluminum body.
2. San’an, Philips, Bridgelux or Cree 3030 chips, >140lm/w for finished products.
3. Meanwell, Moso, Sosen, Inventronics, Philips driver optional, 6/10KV surge protection optional.
4. Tool free driver box open for maintenance or driver replacement.
5. Can be equipped with dusk to dawn photocell sensor switch, automatically on/off.

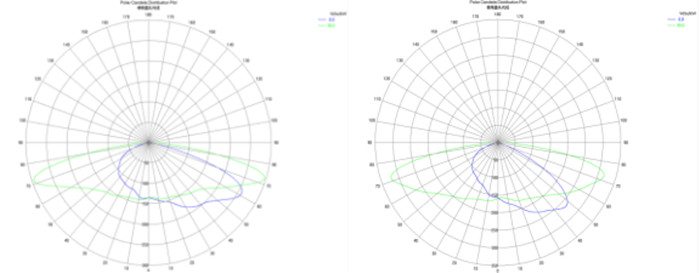

Optical design for SL0615 series LED street light, T3/T4 optional

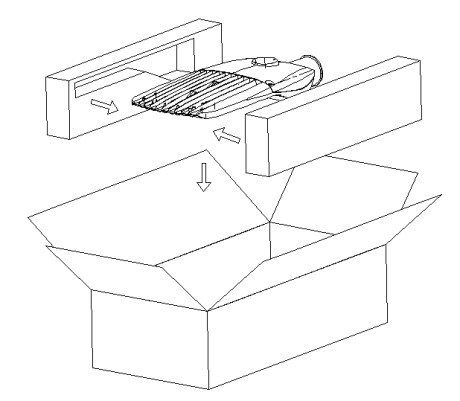

Packing for SL0615 series LED street light, T3/T4 optional
carton box packing with polybay and foam, 1pcs/CTN
50W carton box size: 420*260*150mm
100W carton box size: 525*260*150mm
150W carton box size: 620*287*150mm
