Item Name: Good price top quality LED street light price
Model No.: CL-SL1212 Series
Luminaire efficiency: 140-160lm/w
LED Driver: Meanwell, Philips, Sosen or Inventronics
Input voltage: AC100-305V 50/60HZ
Power Factor: >0.95 THD: <15%
IP rating: IP65 water proof
Color Temperature: 3000-6500K optional
Color Rending Index: Ra>70
IP rating: IP65
Warranty: 5 Years
| Model | CL-SL1212 series | |||
| Power | 30~50W | 70~100W | 120~150W | 180-200W |
| Dimension(mm) | 560*195*100 | 610*245*100 | 660*245*100 | 710*300*100 |
| Luminous Flux | 140lm/w, 160lm/w optional | |||
| LED Source 1 | 96PCS SMD 3030 | 144PCS SMD 3030 | 192PCS SMD 3030 | 320PCS SMD 3030 |
| LED Source 2 | 36PCS SMD 5050 | 54PCS SMD 5050 | 72PCS SMD 5050 | 120PCS SMD 5050 |
| Input Voltage | AC100-305V 50~60Hz | |||
| THD | <10% | |||
| Lamp arm Holder | 60mm | |||
| Color Temperature | 2700K-6500K optional, suggest to use 5700K | |||
| Color Rendering Index | Ra>70 | |||
| IP & IK Rating | IP65 IK08 | |||
| Beam Angle | T2M/T3M/T4M optional | |||
| Housing Color | Gray | |||
| Working Life | >50,000 hours | |||
| Warranty | 5 years | |||
| Working Environment | -30ºC~+50ºC, 10%~90% RH | |||
| Body & Shade Material | Die-casting Aluminum housing & PC lens | |||
| Where Can Use | Road, street, path, sidewalks, highway lighting, for residential area, industrial area, parks, outdoor street/ground lighting | |||

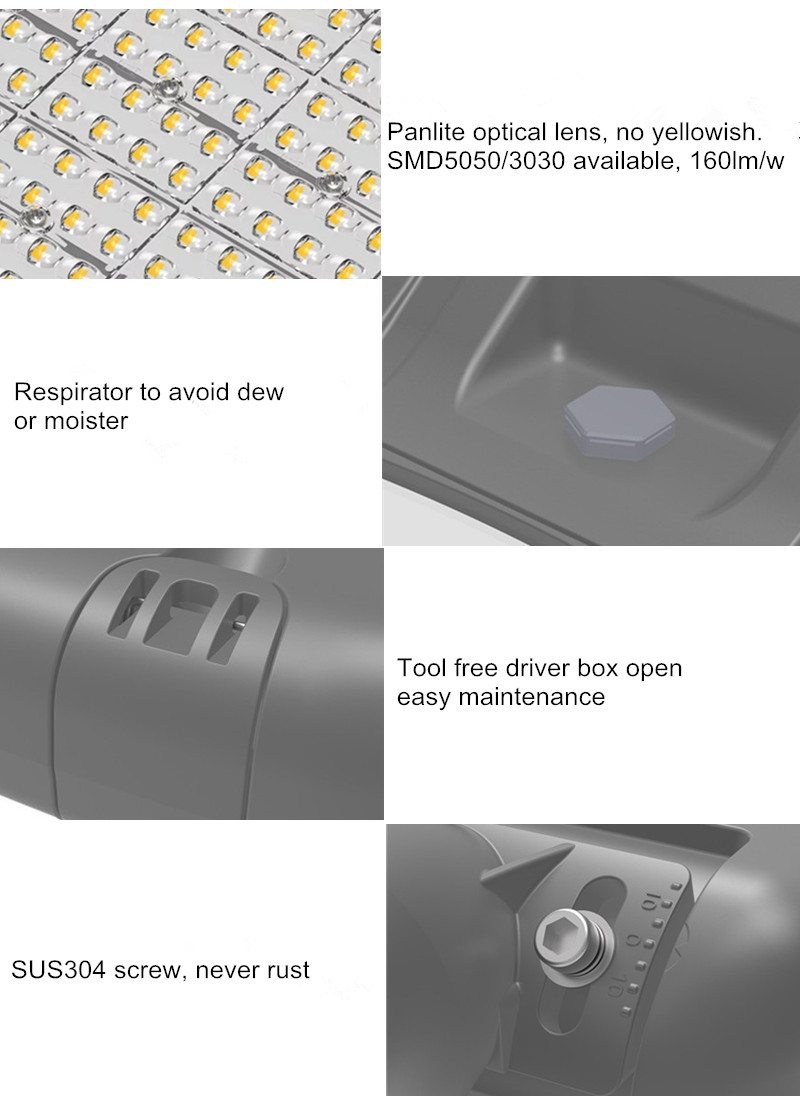

1. Heavy die-casting aluminum alloy body, electrostatic powder coating, anti-corrosion, strong weather resistance ability.
2. Tool free driver box open, can open driver box without any tools, to replace LED driver if failed.
3. Adjustable spigot to adjust lamp body upward angle, can be adjusted 0-90 degree.
4. Secondary optical design, anti-glare lens, light transmission over 90%, less light wasted. Beam angle T2M/T3M/T4M optional.
5. Super brightness, 140-160lm/w optional.
6. Equipped with respirator, to quick balance the air pressure inside and outside lamp body, to avoid moisture or dew to the lamp.
7. Meanwell/Moso/Inventronics/Philips/Sosen driver available, extra 10KV-20KV surge protector available.

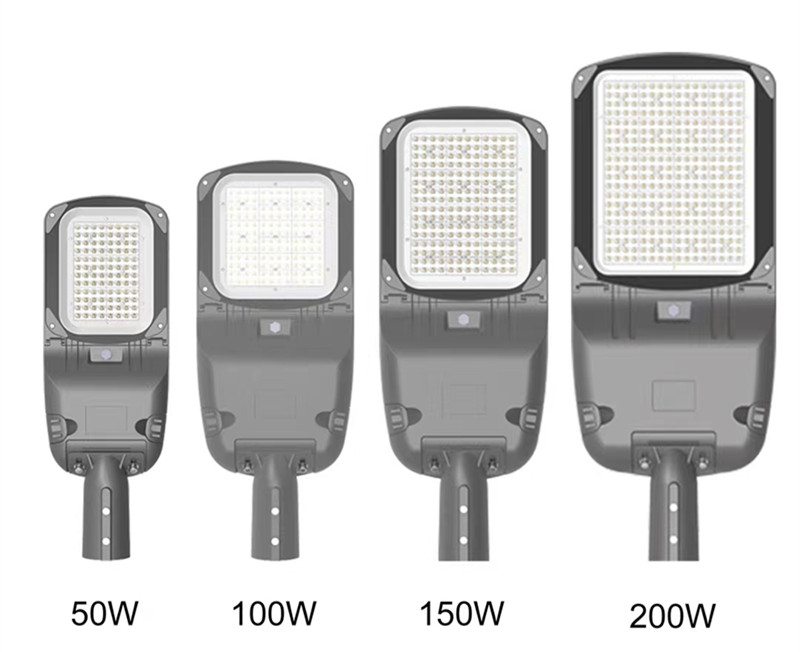

50W, 80W, 100W, 120W, 150W, 180W, 200W available.
