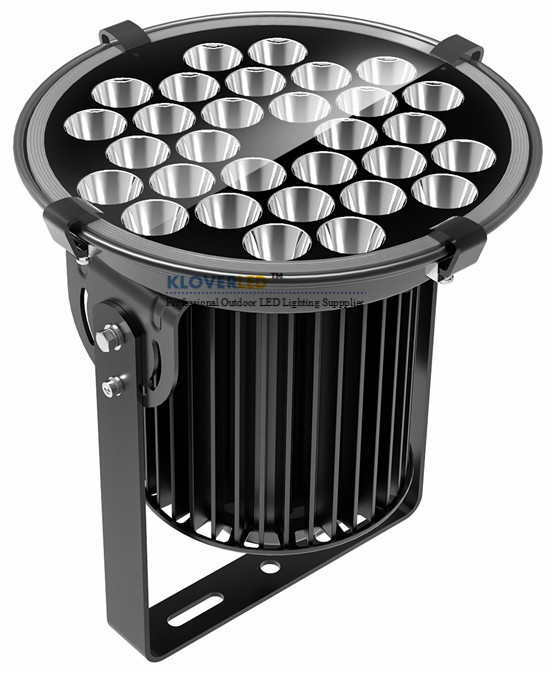

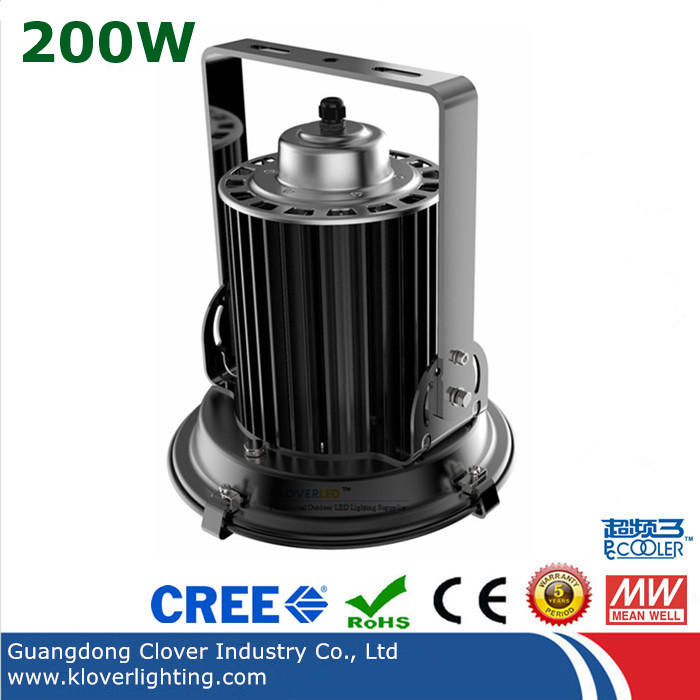

Item Name: CREE 200W Narrow Beam LED Flood Lights
Model No.: CL-SP002C200-01
Total Lumen: 20,000lm, 100lm/w
Product Size: (φ316)*347*245mm
LED Driver: Meanwell HLG
LED chips: 30pcs CREE XTE
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95 THD: <15%
IP rating: IP65 water proof
Color Temperature: 2700-6500K optional
Color Rending Index: Ra>80
IP rating: IP65 can be installed outdoor
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
Model Number: CL-SP002C200-01

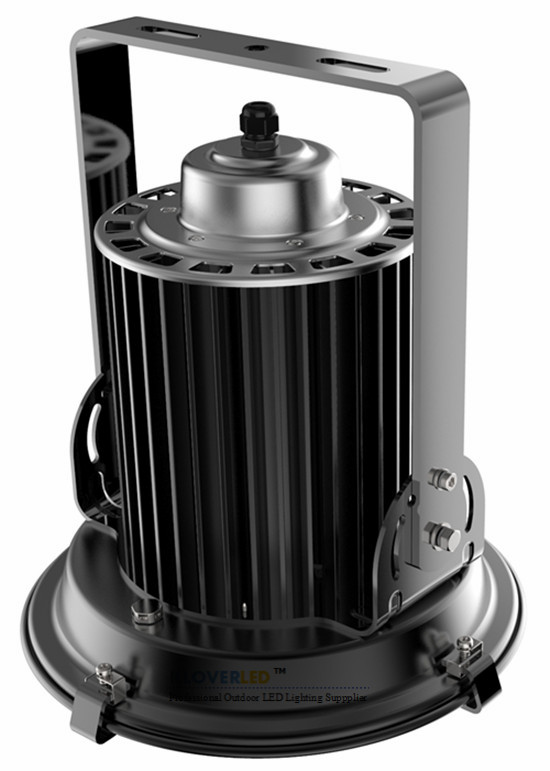

Silver color optional for narrow beam angle 200W LED flood lights
Features for Outdoor Narrow Beam Angle 200W LED Flood Lights

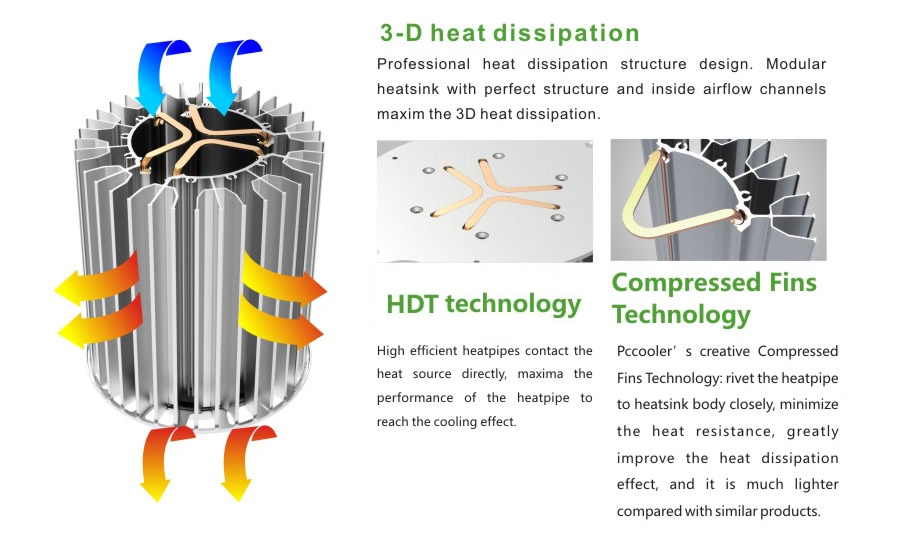

Excellent heat conductivity, as adopt HDT technology, copper heatpipe is riveting into aluminum heat sink, more efficient 3D heat dissipation to bring down LED chips temperature and enlong its lifespan

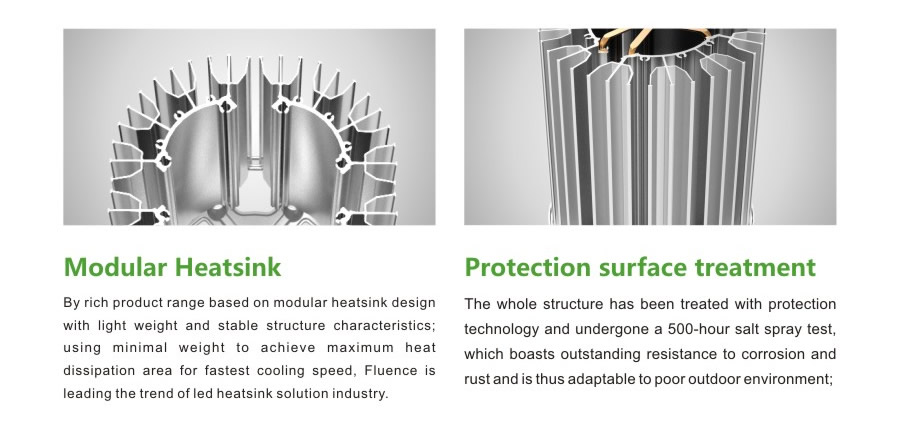

Module Heatsink, made from high purity aluminum alloy, anodised treatment and undergo 500 hours salt spray test, resist corrosion and rust, suitable for coastal and hot countries

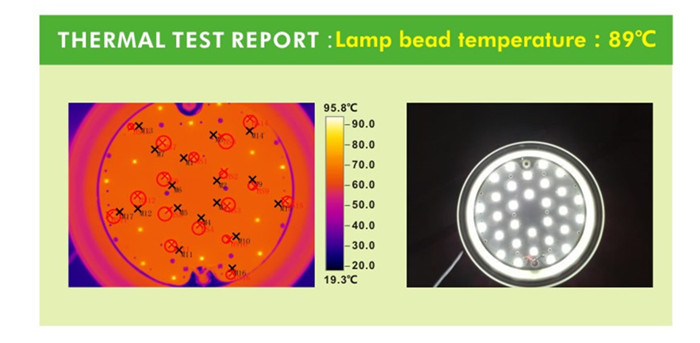

Low temperature, low light decay and longer lifespan

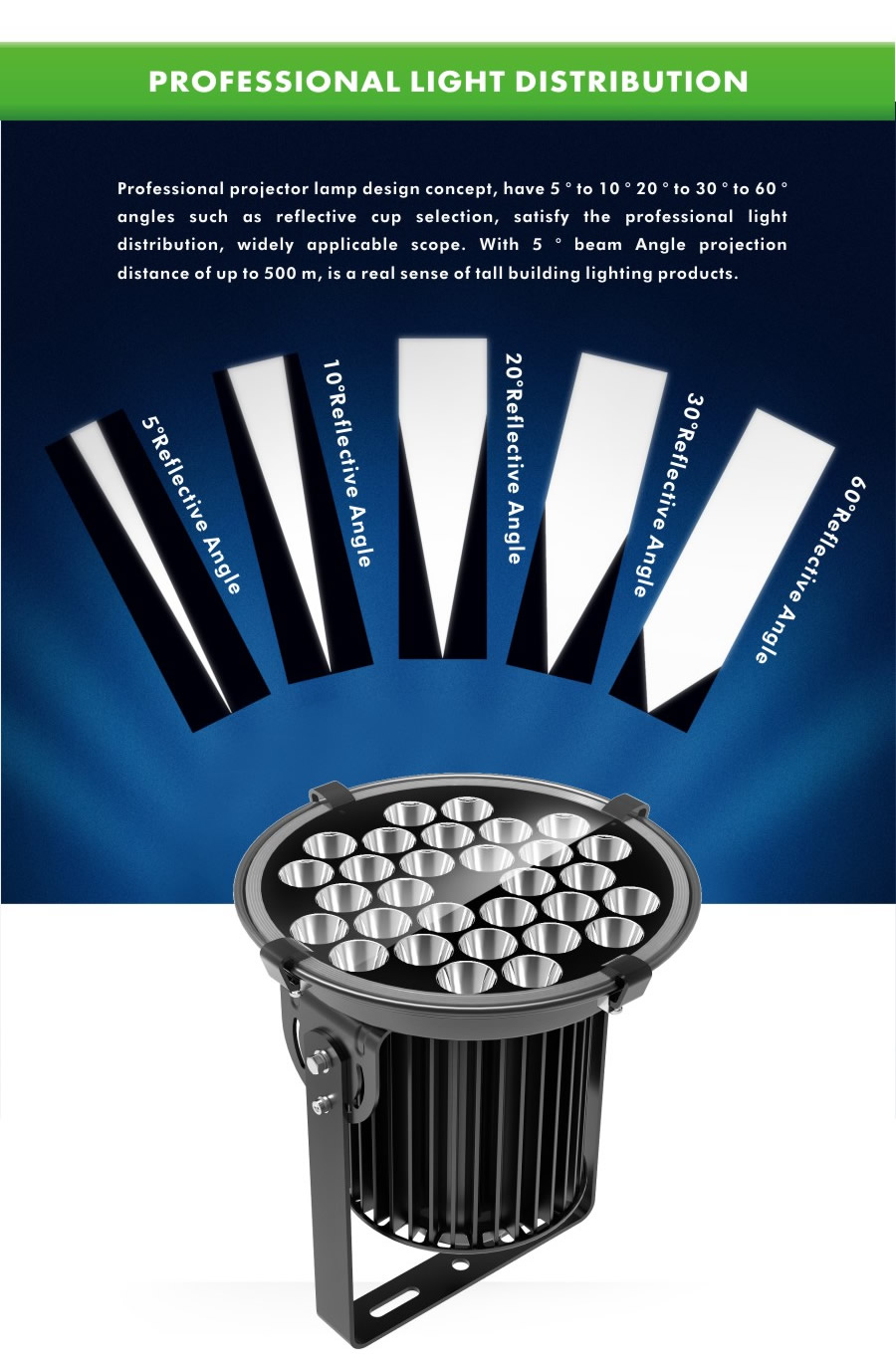

Professionally designed optical lens, with beam angle 5°,10°, 20°, 30°, 60° optional, narrow beam angle for long distance light transmission.
The bracket is adjustable freely and easily
Equipped with Meanwell ELG/HLG or MOSO driver, with more stable performance and longer lifespan
High power factor, 200W LED flood light is equal to 600-800W HPS or Metal Halide flood lights.
CREE XTE LED chips, higher CRI, longer lifespan, low light decline, color temperature selectable from 2700-6500K
Rated Lifespan over 5,0000 hours
Comply with EU, AU, US safety and electric standards
5 years warranty

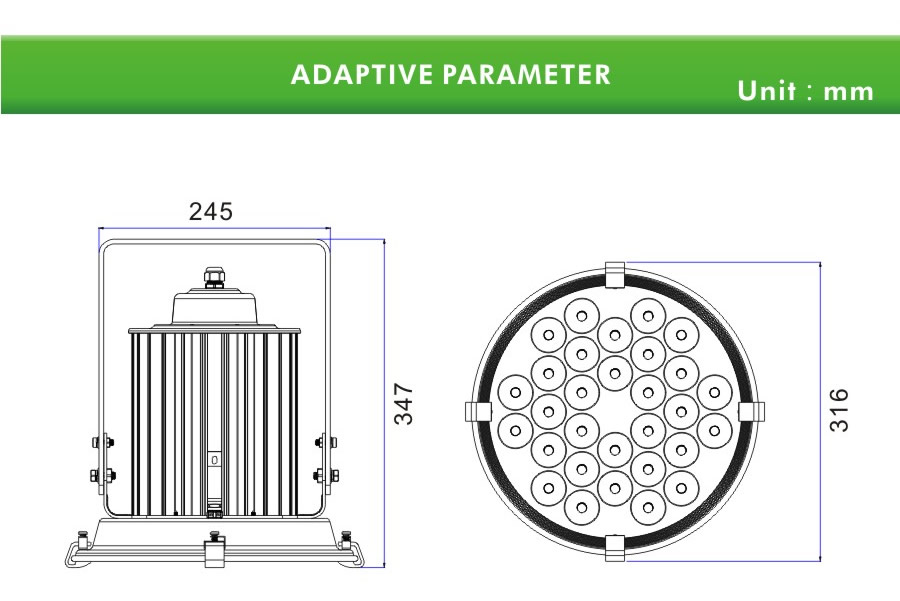

Size for Outdoor Narrow Beam Angle 200W LED Flood Lights

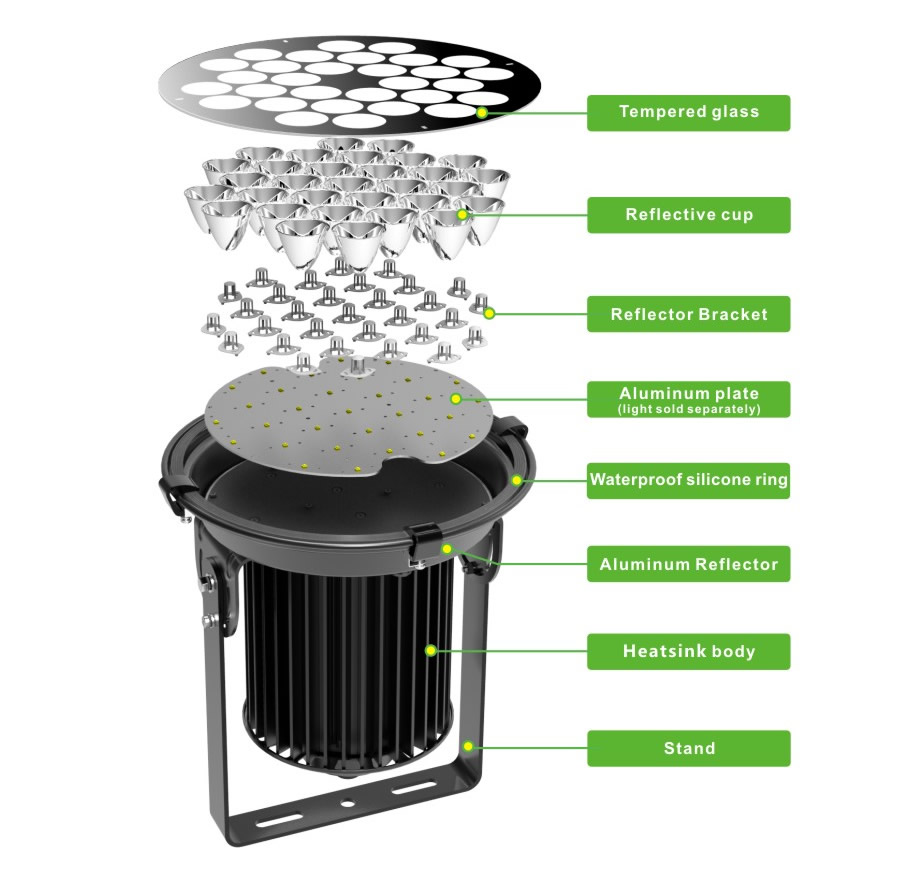

Breakdown for Outdoor Narrow Beam Angle 200W LED Flood Lights

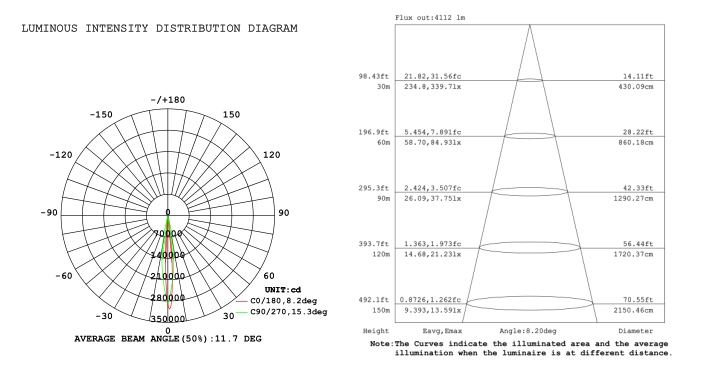

Light Distribution Curve for Outdoor Narrow Beam Angle 200W LED Flood Lights
Light distribution curve for 6 degree 200W flood light
Light distribution curve for 10 degree 200W flood light
Light distribution curve for 20 degree 200W flood light
60 degree light distribution curve for 200W LED flood light
Specification for Outdoor Narrow Beam Angle 200W LED Flood Lights
| Product name: | 200W narrow beam angle LED flood lights | ||
| Model No. | CL-SP002C200-01 | ||
| Power | 200W | ||
| Input voltage | AC90-295V, 50/60Hz | ||
| Power Factor | > 0.97 | ||
| THD | <15% | ||
| Lightning protector | 4KV or 10KV optional | ||
| IP Rating | IP65 | ||
| Lifespan | >50000 hours | ||
| Technical Parameters | |||
| Color | Warm White | Natural White | Cool White |
| Color Temperature | 2700-3200K | 4000-5500K | 5700-7000K |
| CRI | RA>75, higher Ra optional | ||
| Light Efficiency | 110-120lm/w | ||
| Beam angle | 5°, 10°, 20°, 30°, 60° | ||
| Main components | |||
| LED chips | 30pcs CREE XT-E | ||
| LED driver | Meanwell ELG/HLG, MOSO | ||
| Lamp body | Aluminum with copper heat pipe | ||
| Body color | Black or grey | ||
| Others | |||
| Operating Temperature | -40℃ to 50℃ | ||
| Storage Temperature | -40℃ to 60℃ | ||
| Warranty | 5 years | ||
Application for Outdoor Narrow Beam Angle 200W LED Flood Lights
