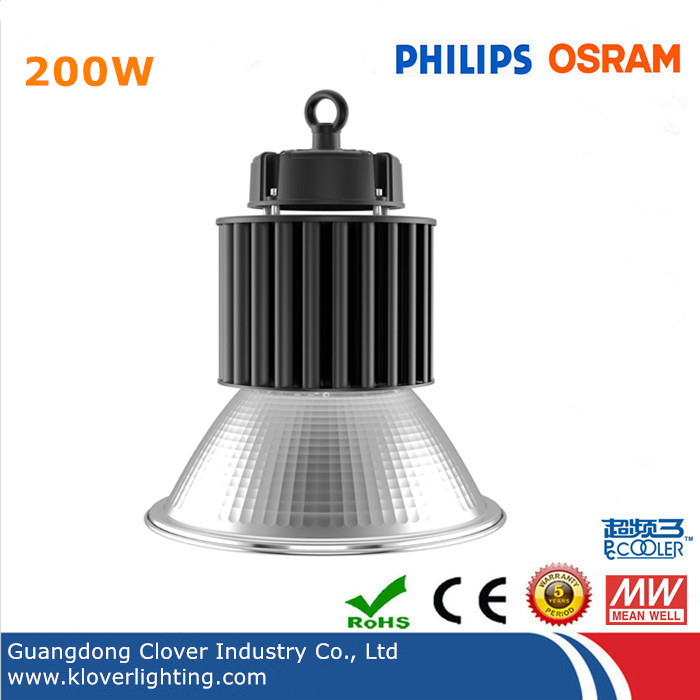

Item Name: 200W LED high bay lights
Model No.: CL-HBL001D200-01
Total Lumen: 24,000lm, 120lm/w
Product Size: Φ345.4*421.6mm
LED Driver: Meanwell HLG or MOSO
LED chips: 220pcs Philips Lumileds 3030/Osram SMD3030
Input voltage: AC85-265V 50/60HZ
Power Factor: >0.95 THD: <15% Ra: >80
IP rating: IP44
Color Temperature: 2700-6500K optional
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
Item Number: CL-HBL001D200-01

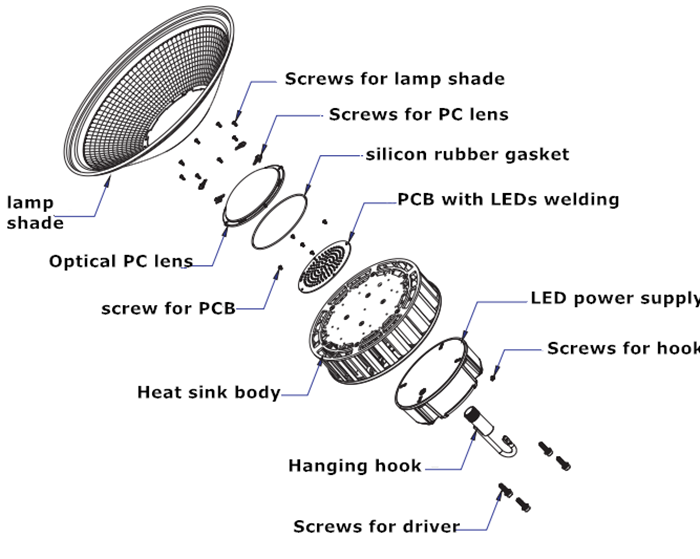

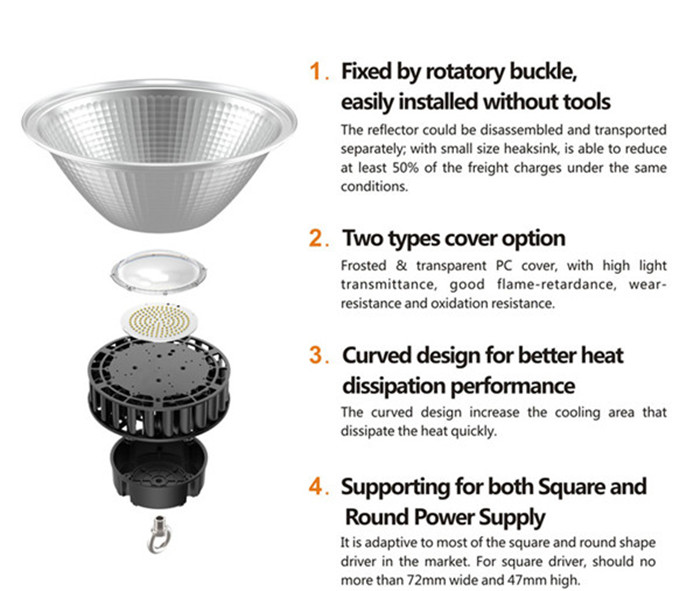

Product breakdown for Philips or Osram SMD3030 200W LED high bay lights

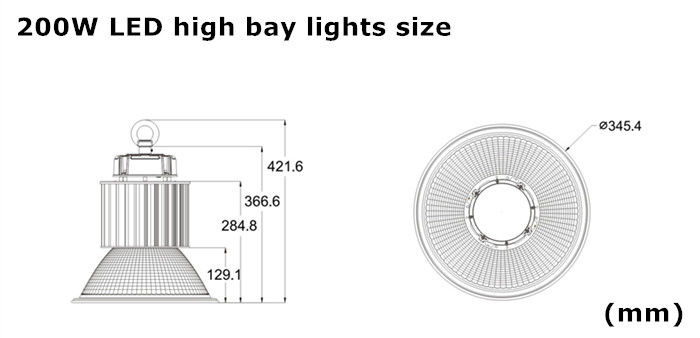

Product size for Philips or Osram SMD3030 200W LED high bay lights
The main parts for Philips or Osram SMD3030 200W LED high bay lights
Steel hook, or screw thread tube or adjustable bracket mounting.

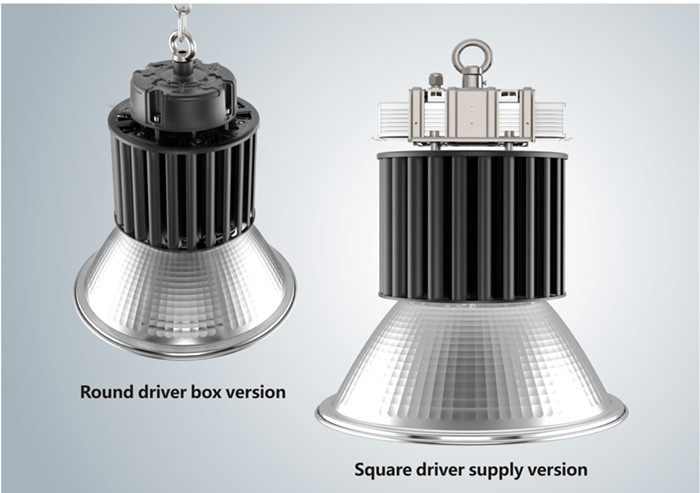

Meanwell or MOSO LED driver, with CE, ROHS, CB, SAA, TUV, FCC, UL, VDE.,etc, high power effciency, stable performance and reliable quality, with two kind of mounting way

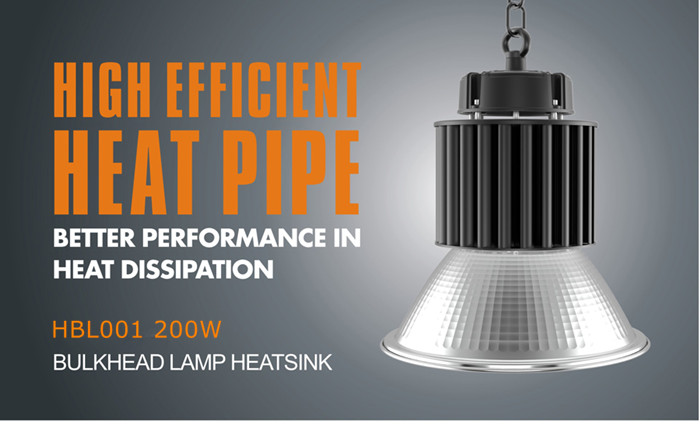

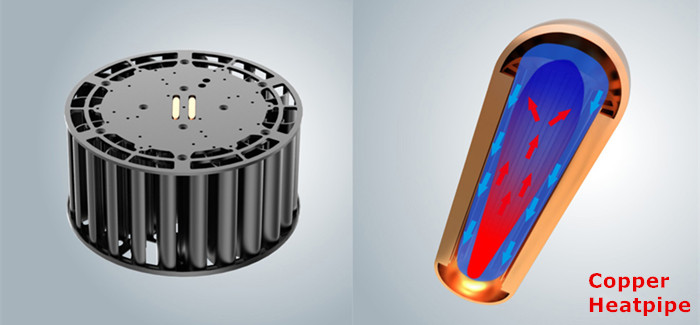

Mean heat radiator, HDT technology with riveted copper heatpipe
The heat dissipation is 200 times better than aluminum radiators, bring down LED chips temperature, largely extend lamp lifespan
The fish-scale design lamp reflector, making light more smoothly transimitted, and more efficiently use of it.
Adopts Philips Lumileds or Osram SMD 3030 LED chips, LM-80 rated, Ra>75, low light decline, high lumen efficiency, reach 200lm/w, maximum 150lm/w by Bridgelux chips.
PC lamp shade, clear or froster optional, anti UV and resist high temperature, not yellowish after years lighting.
Advantages for Hot selling Philips or Osram SMD3030 200W LED high bay lights
Super bright, high luminaire effciency, reach 120lm/w, maximum 150lm/w

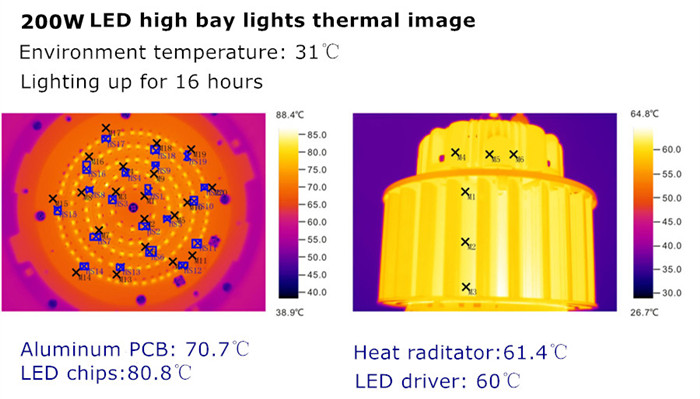

Long lifespan over 50,000 hours because of HDT technology with copper heatpipe for cooling down LEDs temperatures, so that reduce LED chips light decline
Multi way of installation, steel hook, screw thread tube mount, adjustable bracket mount.,etc.

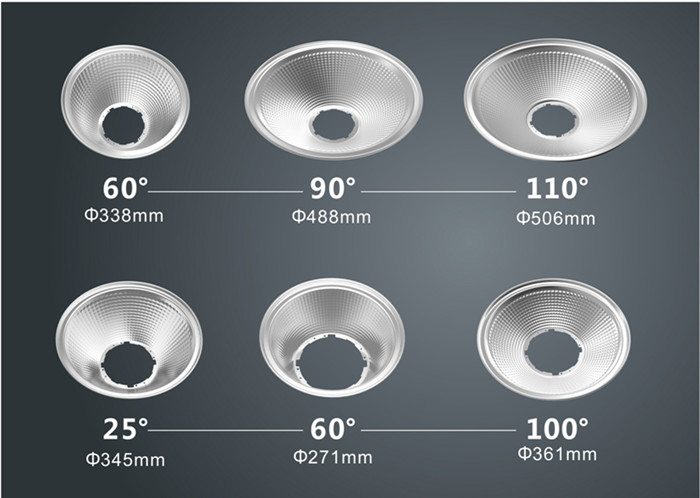

Multi beam angle for lamp reflector, 25°,60°,90°,100°,110° optional, for different luminaire purpose

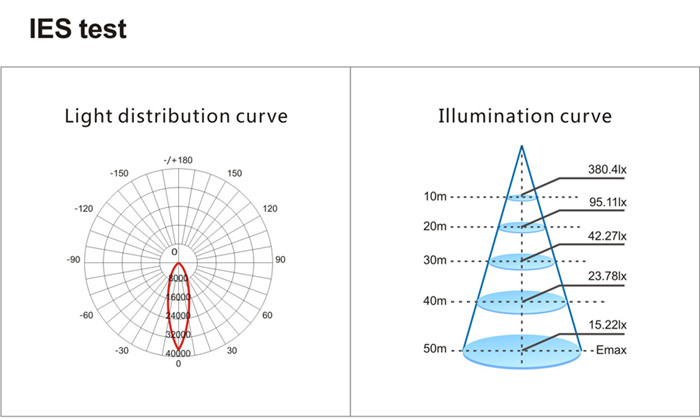

The light distribution curve for Philips or Osram SMD3030 200W LED high bay lights
We offer full range of top quality LED high bay lights, from 60-400W
| Item Name | 60W, 100W, 150W, 200W LED High Bay Light | |||
| Model No. | CL-HBL001A60-01 | CL-HBL001B100-01 | CL-HBL001C150-01 | CL-HBL001D200-01 |
| Power | 60W | 100W | 150W | 200W |
| Total Lumen | 7,200lm | 12,000lm | 18,000lm | 24,000lm |
| Product Size(mm) | Φ345.4*321.6 | Φ345.4*341.6 | Φ345.4*371.6 | Φ345.4*421.6 |
| Beam Angle | 25°, 60°, 90°, 100°, 110° optional | |||
| Input Voltage | AC85-265V 50/60HZ | |||
| Power Factor | > 0.95 | |||
| THD | <15% | |||
| Lightning Protection | 6KV or 10KV optional | |||
| CCT | 3000-6500K | |||
| CRI | >75 | |||
| Luminare Efficiency | >120lm/w; 150lm/w optional | |||
| IP Rating | IP65 | |||
| LED Driver | Meanwell HBG/MOSO | |||
| LED Chips | Philips Lumileds Luxeon 2D 3030/Osram 3030 | |||
| LED Qty | 60pcs | 100pcs | 170pcs | 220pcs |
| Warranty | 5 Years | |||

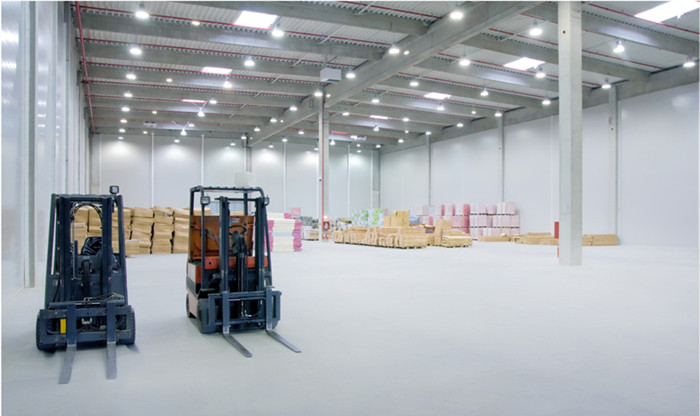

Application for Philips or Osram SMD3030 200W LED high bay lights
