Philips SMD3030 80W linear LED high bay lights

Home LED High Bay Lights Philips SMD3030 80W linear LED high bay lights
80W Linear LED high bay lightphilips 3030 80w linear LED high bay lights

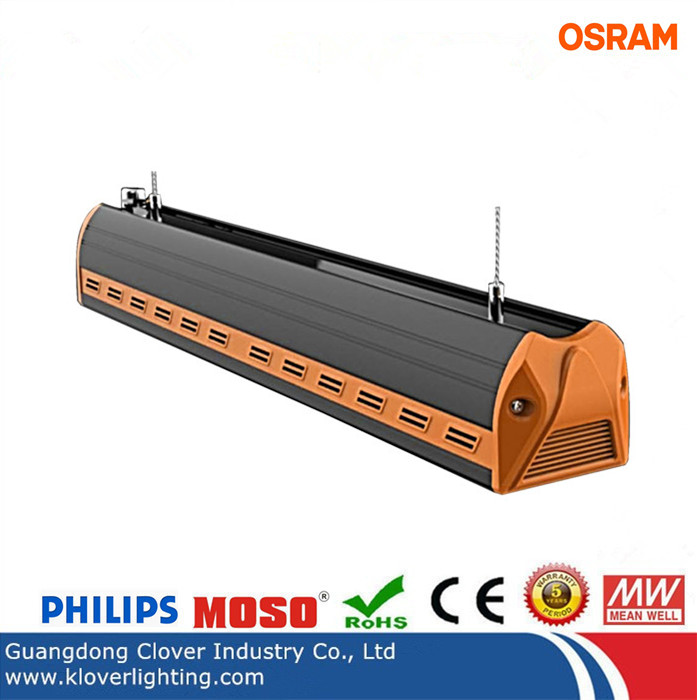

Philips SMD3030 80W linear LED high bay lights

Item Name:  IP65 80W Linear LED high bay lights

Item No.: CL-LHB001B80-01

Total Lumen: 8,800lm; 110lm/w; 150lm/w optional

LED Driver: Meanwell ELG/HLG, MOSO, SOSEN

LED chips: Osram or Philips SMD3030

Lamp reflector: 30°, 60°, 90°, 90*120° optional

Input voltage: AC85-265V 50/60HZ

Power Factor: >0.95 THD: <15%

IP rating: IP65

Color Temperature: 2700-6500K optional

Color Rending Index: Ra>80

Certifications: CE, RoHs, CB, SAA, TUV

Lifespan: >50,000 Hours

Warranty: 5 Years

LED High Bay Lights

Description

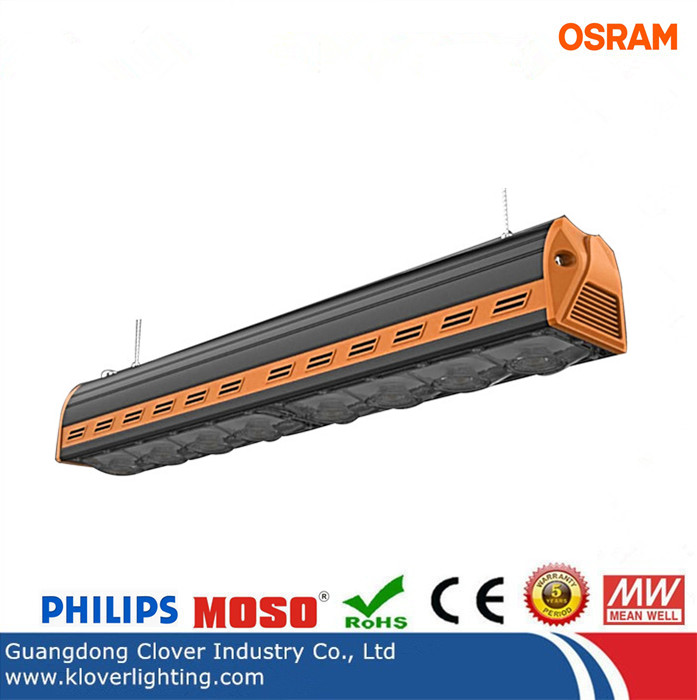

Philips SMD3030 80W linear LED high bay lights

Model Number: CL-LHB001B80-01

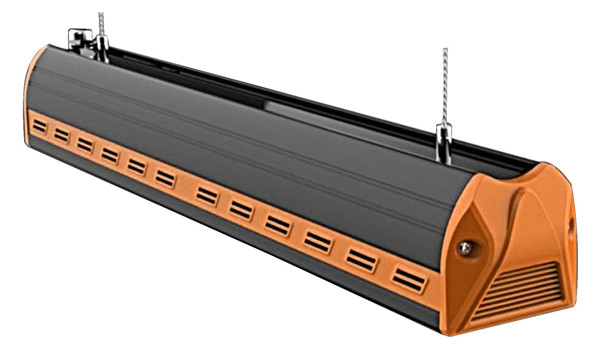

80W linear LED high bay lighting

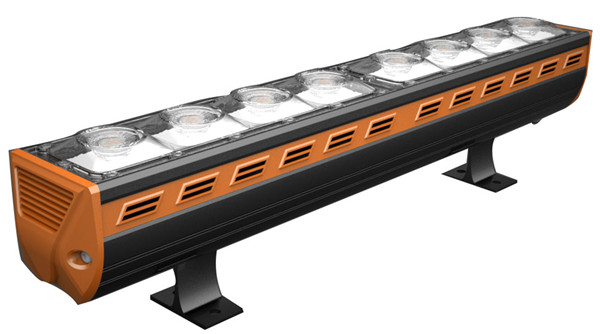

IP65 80W linear LED high bay lights



Specification for 80W Linear LED high bay lights



Item Name 80W linear LED high bay lights
Item Number CL-LHB001B80-01
Product Size L509×W78×H124
Power 80W
Luminaire Flux 8,800lm
Beam Angle 30°, 60°, 90°, 90*120°
Luminaire Effciency 110lm/w, 150lm/w optional
Input Voltage AC85-265V 50/60Hz
THD <15%
Power Factor > 0.95
Light Color Warm White Natural White Cool White
Color Temperature 2700-3300K 4000-4500K 6000-6500K
CRI >75, higher CRI optional
IP Rating IP65
LED Driver Meanwell HLG or ELG, or MOSO
LED Chips Philips Lumileds Luxeon 2D 3030 or Osram 3030
LED Quantity 128Pcs
Working temperature -30-±60℃
Lifespan >50,000 hours
Warranty 5 Years

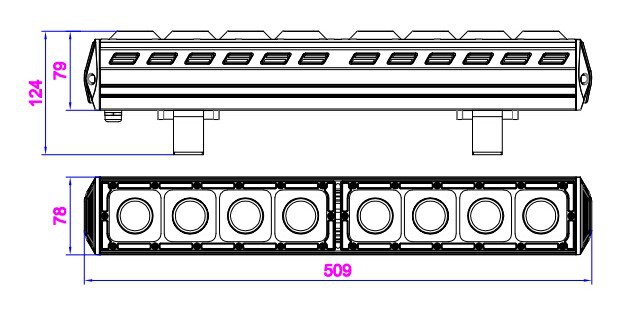

Product size for 80W Linear LED high bay lights

size for 80W linear LED high bay lights

Features for 80W Linear LED high bay lights

✓  High purity punched Aluminum alloy for heat sink, high thermal dissipation reach 220W/m.K

✓  Beam angle 30°, 60°, 90°, 90*120° optional for different lighting purpose, light up aisle in a warehouse, also can be light up large area as high bay lighting.

light distribution for 40W Linear LED high bay light

✓  Water proof IP65 rated, can be used in outdoor lighting, such as wall washer light.

✓  Environmental friendly, no poisonous substances, no lead or mercury, all materials can be recycled

✓  Can be installed by hanging on the ceiling, or screw fixed on the floor/ceiling.

✓   Meanwell or MOSO LED driver, 5-7 years warranty.

✓   LM-80 listed Osram or Philips 3030 LED chips, high luminaire efficiency, normally 110lm/w, 150lm/w optional by the latest LED technology. Can be used to replace 250W HPS or metal halide high bay light directly.

✓   Comply with AU, EU, US safty and electric regulations.

✓   5 Years quality warranty.



Application for 80W linear LED high bay lights



✓   To replace 250W HPS or metal haide high bay light directly

✓   With water IP65 design, and because of multi beam angle, it can be used as LED high bay light, LED wall washer light, LED tunnel light,
